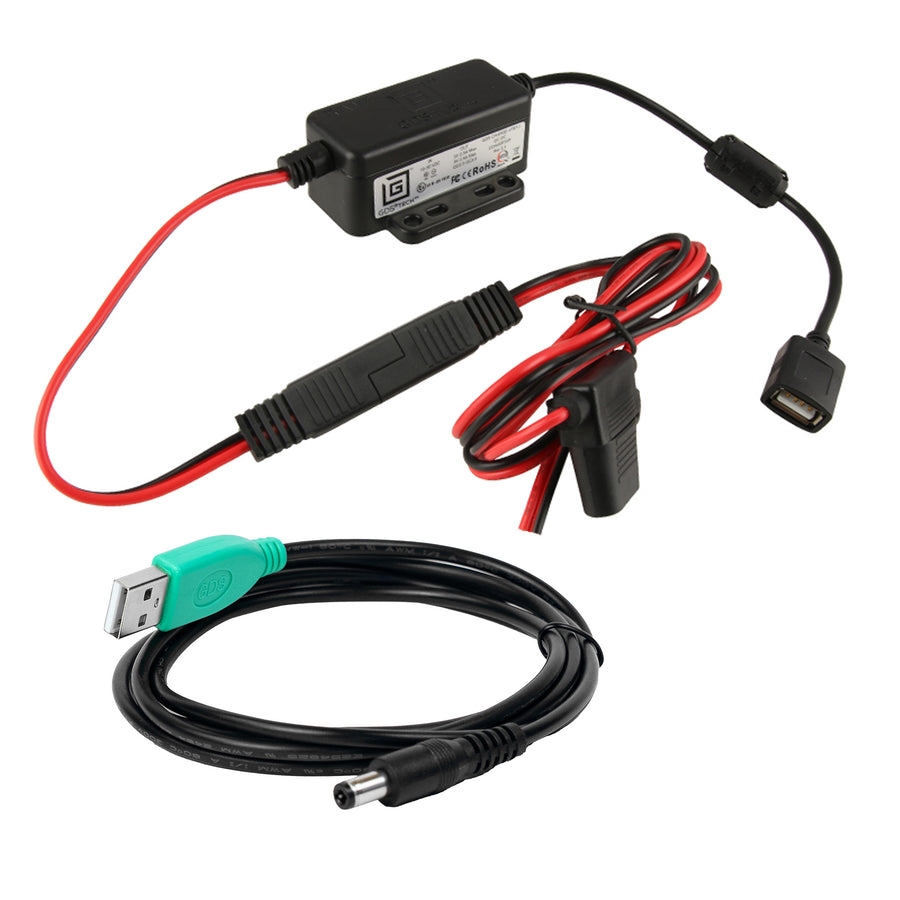

GDS® Modular 10-30V Hardwire Charger with USB-A to DC Cable

Always Protected. Always Connected.®
Part#: RAM-GDS-CHARGE-M55-V7B1U
UPC: 793442100970
$54.49

Overview

The GDS® Modular Hardwire Charger with DC cable is the ideal solution for providing power to any GDS® vehicle solution. With the quick disconnect feature, easily connect any USB Type-A charging cable. When it comes time to upgrade, avoid any rewiring by simply unplugging the power connector and attaching the new charger components. Always Protected. Always Connected.®

packaging type:

Poly Bag

input voltage:

10-30VDC

output voltage:

5-9VDC*

output current:

2.5A max

input connector:

DC Plug

input cable length:

1.2 Meters including 2 Pole Flat Marine Connector

output cable length:

.2 Meter

operating temperature:

-10°C to +70°C

storage temperature:

-40°C to +70°C

regulatory:

Over Voltage Protection
Short Circuit Protection
Reverse Polarity Protection
RoHS Compliance
WEEE Compliance
SAE J-1113-5 Load Dump (Transient Voltage)
Moisture Resistant
FCC, CE, UKCA, IC

certifications:

E-Mark Certification
RCM Certification
IEC/UL 62368-1

Warranty:

3 year warranty

Weight:

0.43 lb

Additional Information:

*5V output is by way of USB 2.0 BC1.2 and DCP mode. 9V output is by way of AFC and QC 2.0.

To determine which hardwire charger is most suitable for your application, please see Hardwire Charger Compatibility Guide.

Return Policy:

All products purchased from RAM® can be returned within 30 days with no restocking fee (return shipping not provided). See full return policy here.

Print

Instructions

Instructions for Modular Hardwire Charger

Documents

Hardwire Charger Compatibility Guide
