$46.49

Features

  • Hardwire charger includes USB Type-A female connector; 30V-64V input range, 5V output. In addition it includes the USB Type-A male connection and a 5.5mm DC connector
  • When upgrading devices, avoid rewiring by unplugging power connector and attaching new charger components
  • Part of the GDS® Ecosystem™ to keep devices protected, connected, and charged in nearly any application
  • Backed by a 3-year warranty

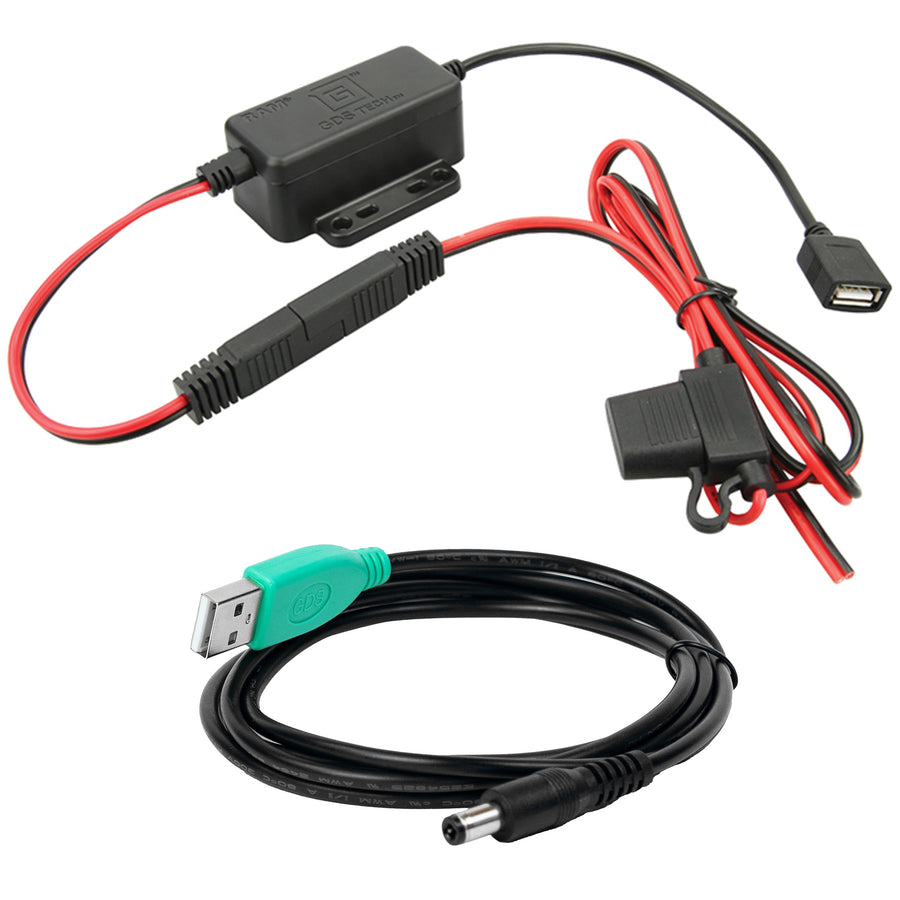

GDS® Modular 30-64V Hardwire Charger with 90-Degree DC Cable
Always Protected. Always Connected.®
Part#:RAM-GDS-CHARGE-M55-V8BU UPC:793442054136
Overview
The GDS® Modular Hardwire Charger with Female USB Type-A connector and a USB Type-A male connector which is the ideal solution for providing power to any GDS® vehicle solution. With the quick disconnect feature, easily connect any USB Type-A charging cable. When it comes time to upgrade, avoid any rewiring by simply unplugging the power connector and attaching the new charger components. Compatible with any 5V device with a 30V-64V input range. Always Protected. Always Connected.®

packaging type

Poly Bag

input voltage

30-64VDC

output voltage

5-9VDC*

output current

2.5A max

input connector

90° DC Plug

input cable length

1.2 Meters including 2 Pole Flat Marine Connector

output cable length

.2 Meters

operating temperature

-10°C to +70°C

storage temperature

-40°C to +70°C

regulatory

Over Voltage Protection
Short Circuit Protection
Reverse Polarity Protection
RoHS Compliance
WEEE Compliance
SAE J-1113-5 Load Dump (Transient Voltage)
Moisture Resistant
FCC, CE, UKCA, IC

certifications

E-Mark Certification
RCM Certification
IEC/UL 62368-1

Warranty

3 year warranty

Weight

0.42 lb

Additional Information

*5V output is by way of USB 2.0 BC1.2 and DCP mode. 9V output is by way of AFC and QC 2.0.

Components

GDS® Modular 30-64V Hardwire Charger with Female USB Type A Connector RAM-GDS-CHARGE-V8BU $39.99
GDS® Genuine USB Type A with 90-Degree DC Cable RAM-GDS-CAB-USBA-DC90-1U $6.49
