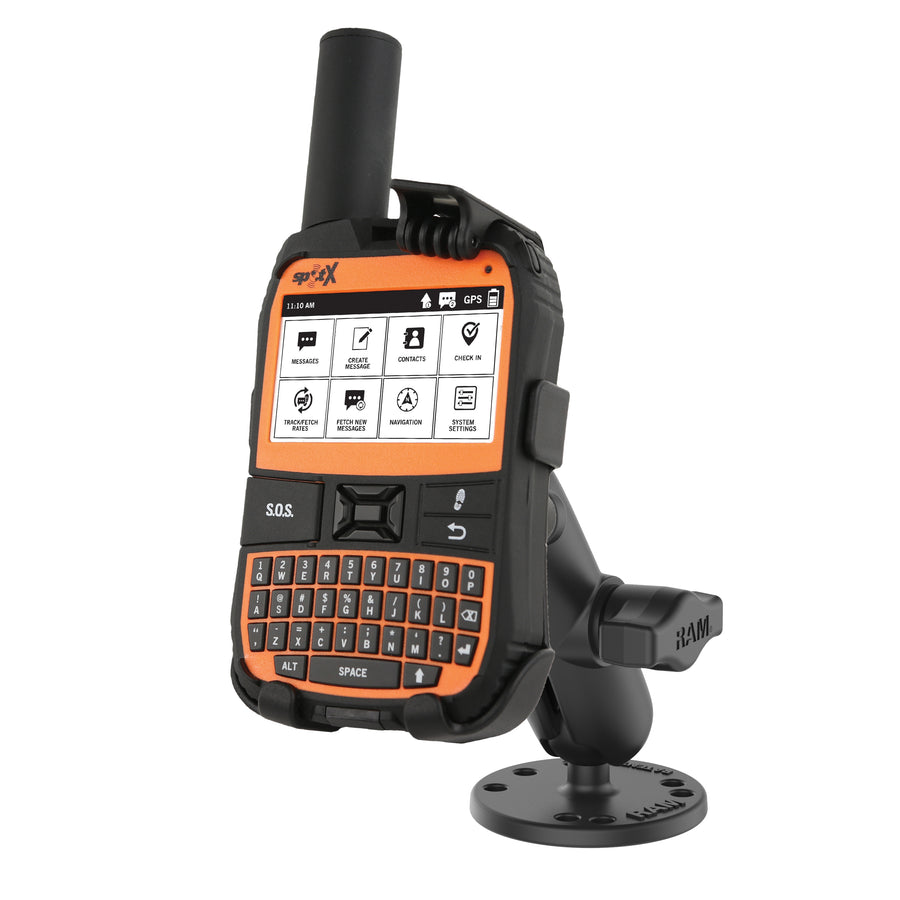

RAM® EZ-Roll'r™ Drill-Down Mount for SPOT X™

Part #: RAM-B-138-SPO5U UPC: 793442101472 Patented & Pats. Pend.

Features

Drill-down mounting solution; cradle designed specifically for the SPOT X™ secures your device while keeping all buttons and the power port fully accessible. Diamond plate features AMPS hole pattern for attachment to compatible device holders.
Includes round ball base, diamond ball base, and B size medium length double socket arm; ball and socket technology allows for near-infinite adjustability.
Made of stainless steel components and high-strength composite for durability and reliability in the most demanding environments
Backed by a lifetime warranty

RAM® EZ-Roll'r™ Drill-Down Mount for SPOT X™

Product Information

Overview

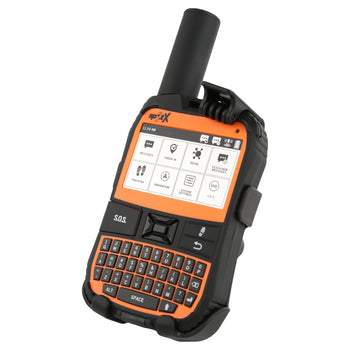

The form-fitting, high-strength composite RAM® EZ-Roll’r™ cradle for the SPOT X™ allows for the attachment of RAM® components containing the universal AMPS hole pattern. With the device in the cradle, all buttons and the power port remain fully accessible. The RAM® EZ-Roll’r™ cradle for the SPOT X™ is compatible and interchangeable with a wide range of RAM® diamond ball bases. Included is a set of two nuts and bolts. Consists of a medium length B size 1" double socket arm, one 2.5" diameter round ball base, and one diamond ball base (both bases feature the universal AMPS hole pattern). The ball and socket system provides shock and vibration damping, and allows for near-infinite adjustability to achieve an ideal viewing and operating angle of your device.

Specifications
hardware included	Assembly Hardware
socket to socket length	3"
hole pattern	4-Hole AMPS: 1.181" x 1.496" 3-Hole 120-Degree: 1.812" Diameter
plate size	2.5" Diameter
ball size	B Size (1")
weight capacity	Standard Use: 2 lbs Heavy-Duty Use: 1 lb
materials	Marine-grade aluminum High strength composite
packaging type	Poly Bag
Weight	0.62 lb

Patented & Pats. Pend.

RAM® EZ-Roll'r™ Drill-Down Mount for SPOT X™

Name: RAM® EZ-Roll'r™ Drill-Down Mount for SPOT X™
Brand: RAM Mounts
SKU: RAM-B-138-SPO5U
Price: 45.49 USD
Availability: InStock

Part#: RAM-B-138-SPO5U

UPC: 793442101472

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A
