GDS® Uni-Conn™ Left Locking Powered Dock with USB-A & RJ45 Data
One Dock to Connect Them All™
$235.99
Left Lock, USB-A & RJ45
Features

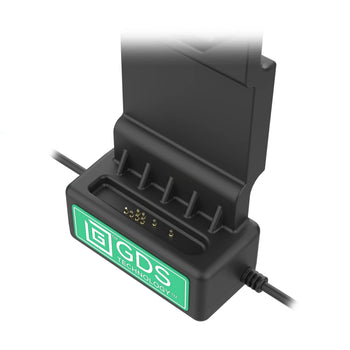

- Snap-in locking dock featuring GDS® Technology™ uses an integrated pogo pin connector to provide high-speed charging and connection to one additional USB-A peripheral

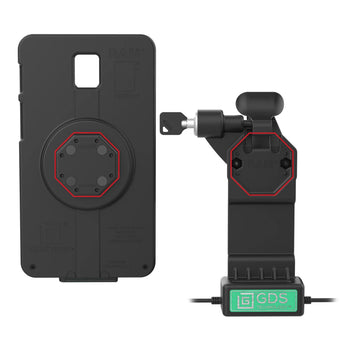

- Designed for devices wrapped in an IntelliSkin® protective sleeve with GDS® Uni-Conn™ Adapter installed
- Power delivered via USB-C connector; data and ethernet connects to dual USB-A and RJ45 connector
- RAM® Mounts Compatible™
- Backed by a 3-year warranty

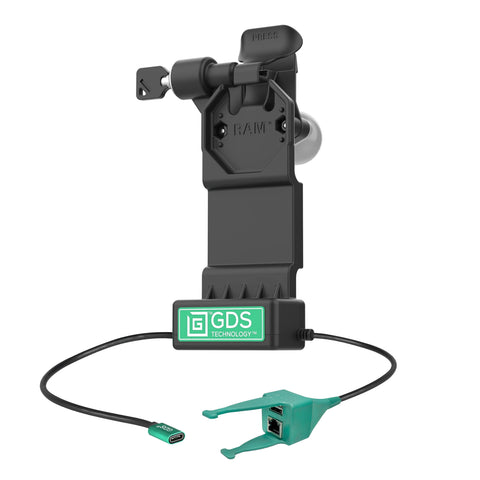

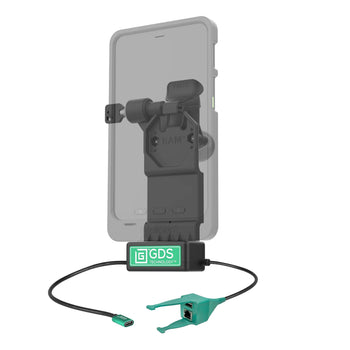

The GDS® Uni-Conn™ Left Locking Powered Dock with USB-A & RJ45 Data (RAM-GDS-DOCKLL-U1CP-RJ45AU) is a revolutionary universal docking platform. This clip-in, quick-release solution securely holds your device in place and features a key lock on the left side for additional theft deterrence. For the same dock with a lock on the right side, see RAM-GDS-DOCKLR-U1CP-RJ45AU. When docked, power is delivered via the pogo pin connection, enabled by the USB-C female connector. It also includes a dual-input pigtail that features one RJ45 (ethernet) connector for a direct and secure connection to your network alongside one USB Type-A female connector for connecting peripherals to your tablet. It features an easy docking and undocking process, simply place the IntelliSkin®-wrapped device into the base of the dock and push it to snap into place. When undocking, a simple push of a lever releases the tablet. The docking station requires the GDS® Uni-Conn™ adapter (RAM-GDS-U1U) to be installed on the intended IntelliSkin®-wrapped device. The GDS® Uni-conn™ dock is backed by a 3-year warranty. Warranty is void if lever stop is not installed. Always Protected. Always Connected.® One Dock to Connect Them All™.
GDS® Uni-Conn™ Left Locking Powered Dock with USB-A & RJ45 Data
One Dock to Connect Them All™
Overview
The GDS® Uni-Conn™ Left Locking Powered Dock with USB-A & RJ45 Data (RAM-GDS-DOCKLL-U1CP-RJ45AU) is a revolutionary universal docking platform. This clip-in, quick-release solution securely holds your device in place and features a key lock on the left side for additional theft deterrence. For the same dock with a lock on the right side, see RAM-GDS-DOCKLR-U1CP-RJ45AU. When docked, power is delivered via the pogo pin connection, enabled by the USB-C female connector. It also includes a dual-input pigtail that features one RJ45 (ethernet) connector for a direct and secure connection to your network alongside one USB Type-A female connector for connecting peripherals to your tablet. It features an easy docking and undocking process, simply place the IntelliSkin®-wrapped device into the base of the dock and push it to snap into place. When undocking, a simple push of a lever releases the tablet. The docking station requires the GDS® Uni-Conn™ adapter (RAM-GDS-U1U) to be installed on the intended IntelliSkin®-wrapped device. The GDS® Uni-conn™ dock is backed by a 3-year warranty. Warranty is void if lever stop is not installed. Always Protected. Always Connected.® One Dock to Connect Them All™.
hardware included
(2) Keys

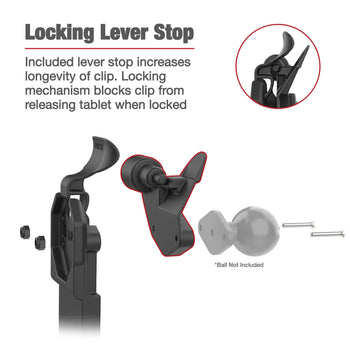

(1) Locking Lever Stop
(2) #8-32 x 1" Machine Screws
(2) #8-32 Nylock Nuts
(1) Cable Clamp Kit
product dimensions
Overall Width: 4.27"
Overall Height: 8.44"
Overall Depth: 3.03"
hole pattern
2-Hole AMPS: 1.912"
materials
High strength composite
packaging type
Poly Bag
output voltage
Type-C Tablets: 5V - 12V @ 3A max
mUSB Tablets: 5V @ 1.5A max
power output
15W
input connector
USB Type-C (Power In)
input cable length
215mm
output connector
(1) USB Type-A & (1) RJ45 Female
output cable length
215mm
peripheral output
900mAh
Warranty
3 year warranty
Weight
0.83 lb
Additional Information
The Lever Stop included with this dock is required in order to function properly. Warranty on dock is void if dock is used without Lever Stop. GDS® Uni-Conn™ docks are not recommended for high vibration applications such as forklifts.
