GDS® Modular 30-64V Hardwire Charger with Type-C Cable
Always Protected. Always Connected.®
Part#: RAM-GDS-CHARGE-USBC-V8BU
UPC: 793442936289
$36.49

Overview

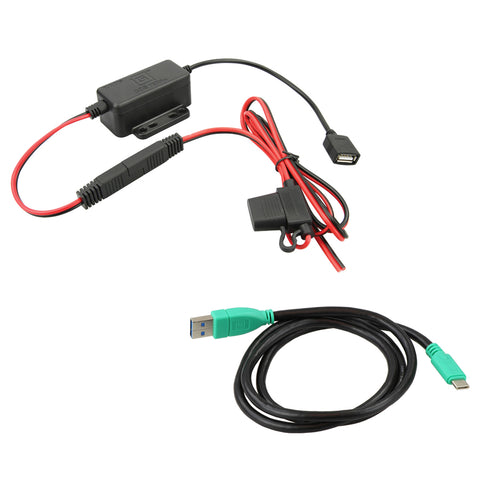

The GDS® Modular Hardwire Charger with Female USB Type-A Connector is the ideal solution for providing power to any GDS® vehicle solution. With the quick disconnect feature you can avoid rewiring with it comes to to upgrade by simply unplugging the SAE connector and attaching the new charger components. Compatible with any 5V device with a 30V-64V input range. Includes 1 meter long USB Type-C extension cord. Always Protected. Always Connected.®

Features

  • Hardwire charger includes USB Type-A female connector and 1m long USB Type C extension cord; 30V-64V input range, 5V output
  • When upgrading devices, avoid rewiring by unplugging power connector and attaching new charger components
  • Part of the GDS® Ecosystem™ to keep devices protected, connected, and charged in nearly any application
  • Backed by a 3-year warranty

hardware included:

(1) USB Type-C to Type-A Cable

packaging type:

Poly Bag

input voltage:

30-64VDC

output voltage:

5-9VDC*

output current:

2.5A max

input connector:

USB Type-C

input cable length:

1.2 Meters including 2 Pole Flat Marine Connector

output cable length:

.2 Meters

operating temperature:

-10°C to +70°C

storage temperature:

-40°C to +70°C

regulatory:

Over Voltage Protection
Short Circuit Protection
Reverse Polarity Protection
RoHS Compliance
WEEE Compliance
SAE J-1113-5 Load Dump (Transient Voltage)
Moisture Resistant
FCC, CE, UKCA, IC

certifications:

E-Mark Certification
RCM Certification
IEC/UL 62368-1

Warranty:

3 year warranty

Weight:

0.46 lb

Additional Information:

*5V output is by way of USB 2.0 BC1.2 and DCP mode. 9V output is by way of AFC and QC 2.0.
