RAM® Double Socket Arm with Jam Nut - D Size Medium | |
---|---|
Part #:
RAM-D-201U-MI1
UPC:
793442220142
|
![]() |
Product Information | |
---|---|

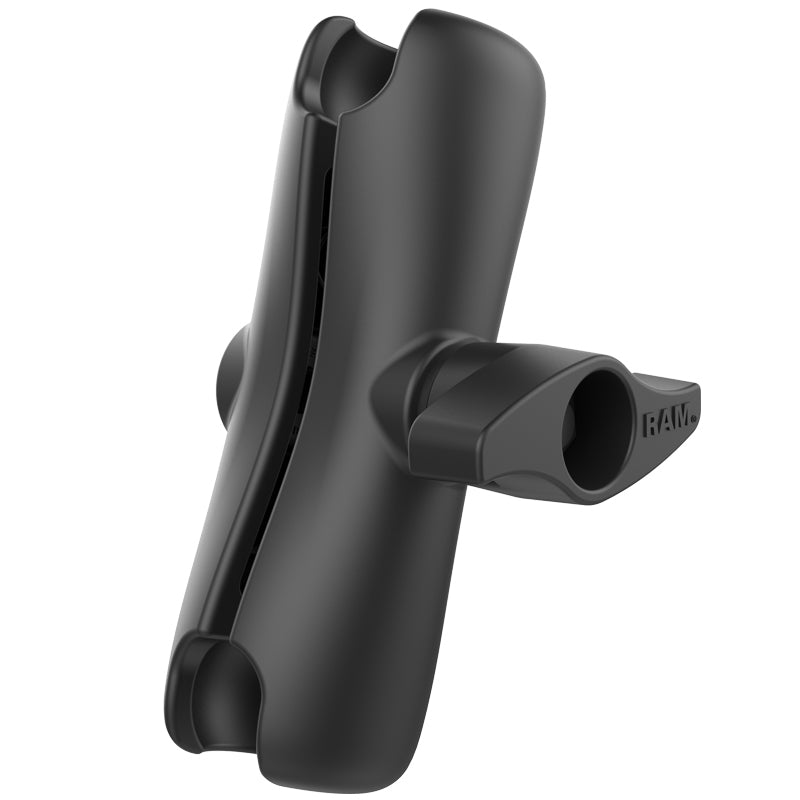

Overview | The RAM-D-201U-MI1, standard size double socket arm with jam nut, has a socket at both ends that accommodates 2.25" ball bases. A single spring inside the arm opens the end sockets, allowing you to pivot the ball and socket connection. This socket technology allows for almost infinite adjustment and perfect viewing angles. |
Specifications | |
---|---|
product dimensions | Overall Length: 8.44" |
socket to socket length | 6.88" |
ball size | D Size (2.25") |
weight capacity | Standard Use: 6 lbs Heavy-Duty Use: 5 lbs |
materials | Marine-grade aluminum |
packaging type | Poly Bag |
Weight | 2.76 lb |


The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size
Holds .5 lbs.
Trail Cameras

B Size
Holds 2 lbs.
Phones, Action Cameras, Light Duty Tablets

C Size
Holds 4 lbs.
Fishfinders, Heavy Duty Tablets

D Size
Holds 6 lbs.
Heavy Monitors

E Size
Holds 15 lbs.
Heavy Monitors
The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.
Size | A Size | B Size | C Size | D Size | E Size |
---|---|---|---|---|---|
Short Arm | Overall Length N/A |
Overall Length 2.42" |
Overall Length 3.56" |
Overall Length 5.69" |
Overall Length 5.69" |
Socket-to-Socket Length N/A |
Socket-to-Socket Length 1.75" |
Socket-to-Socket Length 2.5" |
Socket-to-Socket Length 4.66" |
Socket-to-Socket Length 4.66" |
|
Medium Arm | Overall Length 2.42" |
Overall Length 3.73" |
Overall Length 5.69" |
Overall Length 8.44" |
Overall Length 12.63" |
Socket-to-Socket Length 1.75" |
Socket-to-Socket Length 3" |
Socket-to-Socket Length 4.66" |
Socket-to-Socket Length 6.88" |
Socket-to-Socket Length 9.88" |
|
Long Arm | Overall Length 6" |
Overall Length 6" |
Overall Length 9.13" |
Overall Length 12.98" |
Overall Length N/A |
Socket-to-Socket Length 5.31" |
Socket-to-Socket Length 5.31" |
Socket-to-Socket Length 8" |
Socket-to-Socket Length 11.41" |
Socket-to-Socket Length N/A |
Kit Components


The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size
Holds .5 lbs.
Trail Cameras

B Size
Holds 2 lbs.
Phones, Action Cameras, Light Duty Tablets

C Size
Holds 4 lbs.
Fishfinders, Heavy Duty Tablets

D Size
Holds 6 lbs.
Heavy Monitors

E Size
Holds 15 lbs.
Heavy Monitors
The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.
Size | A Size | B Size | C Size | D Size | E Size |
---|---|---|---|---|---|
Short Arm | Overall Length N/A |
Overall Length 2.42" |
Overall Length 3.56" |
Overall Length 5.69" |
Overall Length 5.69" |
Socket-to-Socket Length N/A |
Socket-to-Socket Length 1.75" |
Socket-to-Socket Length 2.5" |
Socket-to-Socket Length 4.66" |
Socket-to-Socket Length 4.66" |
|
Medium Arm | Overall Length 2.42" |
Overall Length 3.73" |
Overall Length 5.69" |
Overall Length 8.44" |
Overall Length 12.63" |
Socket-to-Socket Length 1.75" |
Socket-to-Socket Length 3" |
Socket-to-Socket Length 4.66" |
Socket-to-Socket Length 6.88" |
Socket-to-Socket Length 9.88" |
|
Long Arm | Overall Length 6" |
Overall Length 6" |
Overall Length 9.13" |
Overall Length 12.98" |
Overall Length N/A |
Socket-to-Socket Length 5.31" |
Socket-to-Socket Length 5.31" |
Socket-to-Socket Length 8" |
Socket-to-Socket Length 11.41" |
Socket-to-Socket Length N/A |
Kit Components

Get a notification as soon as this product is available by signing up below!
Thank you for your interest in RAM-D-201U-MI1!
We'll email you once the item is available.
Overview
The RAM-D-201U-MI1, standard size double socket arm with jam nut, has a socket at both ends that accommodates 2.25" ball bases. A single spring inside the arm opens the end sockets, allowing you to pivot the ball and socket connection. This socket technology allows for almost infinite adjustment and perfect viewing angles.
product dimensions:
Overall Length: 8.44"
socket to socket length:
6.88"
ball size:
D Size (2.25")
weight capacity:
Standard Use: 6 lbs
Heavy-Duty Use: 5 lbs
materials:
Marine-grade aluminum
packaging type:
Poly Bag
Weight:
2.76 lb
Questions & Answers
Have a Question?
-
Today I installed RAM Mounts Large Marine Electronics Mount RAM-D-111U with Medium Arm. I noticed inside the arm there are positioning post for springs on each end. My unit has one spring installed on the lower base side. Should my Medium arm have 2 inside tension springs? Is there a part number I can order if needed?
There is only one spring in the double socket arms like RAM-D-201U-MI1. That allows you to loosen the arm and only have one side open enough to remove the ball, that way the side you select (the side opposite the spring) will stay tight and either keep the arm clamped onto the ball base that's serving as the mount, or the side that has the marine mounting plate (in your case) so you can remove the arm as well as the marine adapter plate from the base.
-
What is a Jam nut?
The jam nut is an additional nut that is inserted over the threads of the socket arm bolt that literally "jams" against the threads of the bolt, preventing the socket arm to be loosened to any degree to be configured by the user. With this jam nut in place, the knob cannot be loosened to a certain point, without the use of an additional socket wrench tool to remove the jam nut.
