RAM^® 100x100mm VESA Plate with Ball - D Size
Part #: RAM-D-246U UPC: 793442202469 Features Square plate features the VESA hole pattern for connection to a wide variety of devices Included D size 2.25" RAM^® rubber ball allows for connection to any D size RAM^® double socket arm; ball and socket technology allows for near-infinite adjustability Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments Backed by a lifetime warranty

RAM^® 100x100mm VESA Plate with Ball - D Size

Part #: RAM-D-246U UPC: 793442202469

Features

Square plate features the VESA hole pattern for connection to a wide variety of devices
Included D size 2.25" RAM^® rubber ball allows for connection to any D size RAM^® double socket arm; ball and socket technology allows for near-infinite adjustability
Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
Backed by a lifetime warranty

RAM<sup>®</sup> 100x100mm VESA Plate with Ball - D Size

Product Information

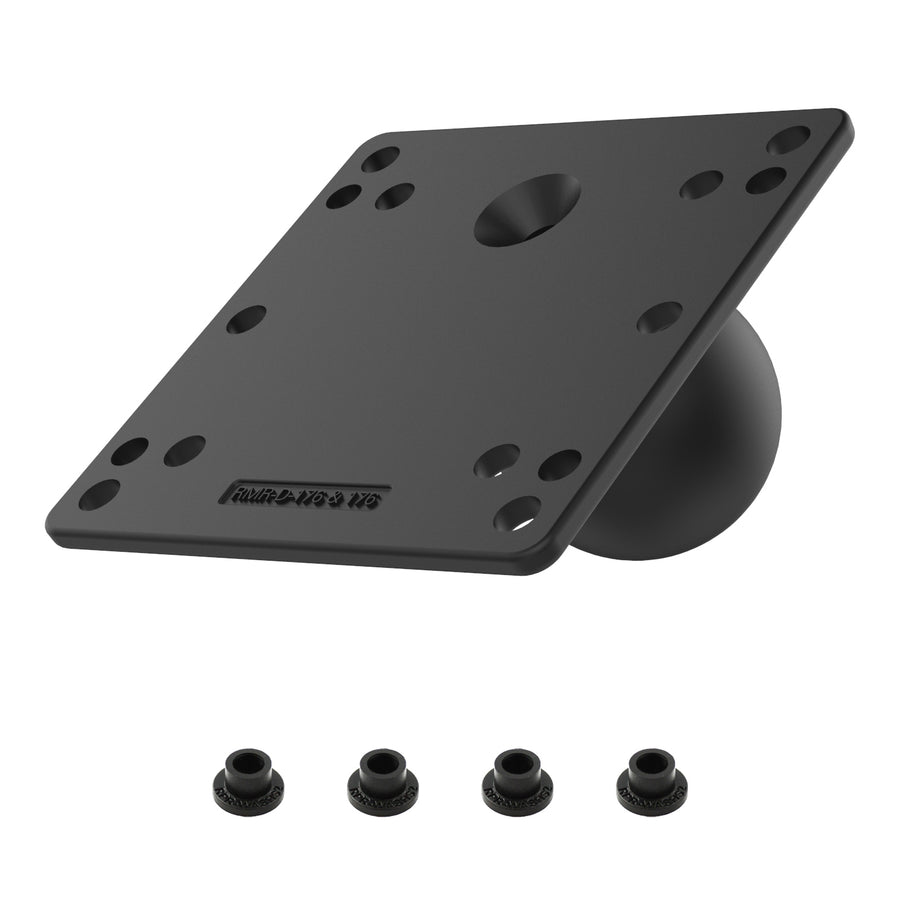

Overview	The RAM-D-246U consists of a 2.25" rubber ball, connected to a 4.75" square plate with 4x100mm holes and 4x75mm holes in each corner.

Specifications
hardware included	(4) .312" x .187" Shoulder Washers
hole pattern	See Drawing
ball size	D Size (2.25")
weight capacity	Standard Use: 6 lbs Heavy-Duty Use: 5 lbs
materials	Marine-grade aluminum
packaging type	Poly Bag
Weight	0.89 lb
