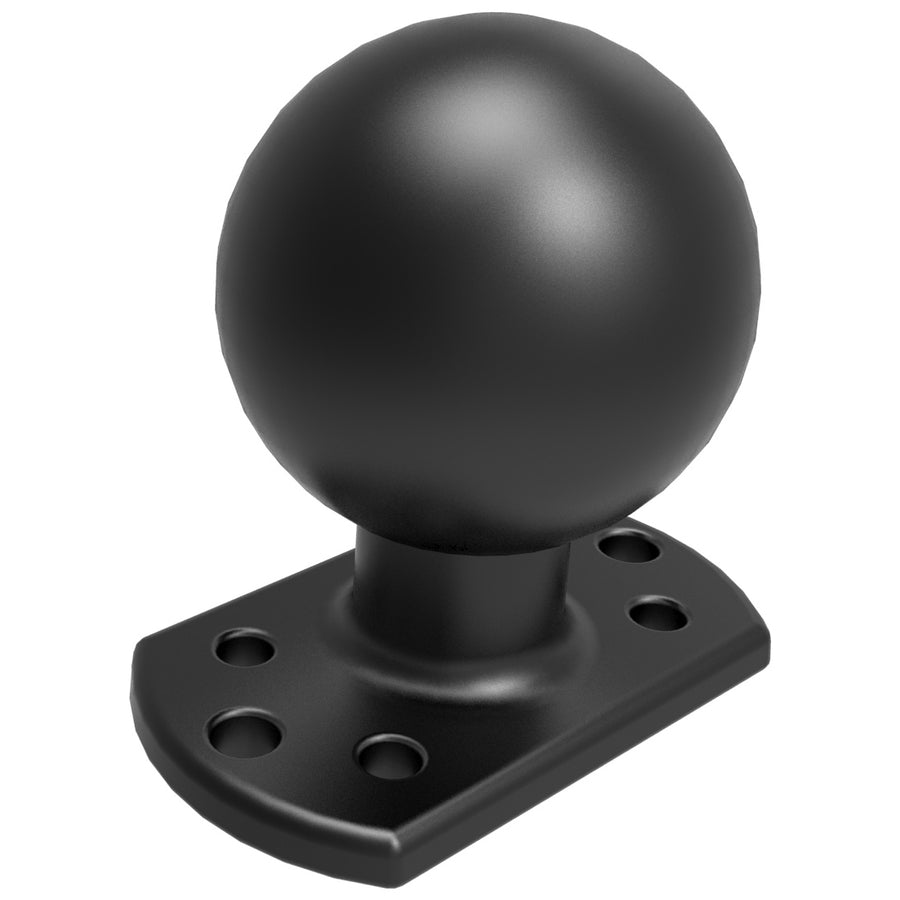

RAM® Ball Base for Crown Work Assist® - D Size
Part #: RAM-D-202U-CRO1 UPC: 793442943942

Product Information
Overview	The Crown ball base contain mounting holes aligned to work with Crown Work Assist® clamp accessories. The addition of the RAM mounting system allows you to position your accessories for the best access and prevent damage due to shock and vibration.

Specifications
hole pattern	See Drawing
ball size	D Size (2.25")
weight capacity	6 lbs
materials	Marine-grade aluminum
packaging type	Poly Bag
Weight	0.57 lb
Additional Information	Crown Work Assist® Clamp not included with purchase.

RAM® Ball Base for Crown Work Assist® - D Size

Name: RAM® Ball Base for Crown Work Assist® - D Size
Brand: RAM Mounts
SKU: RAM-D-202U-CRO1
Price: 44.49 USD
Availability: InStock

Part#: RAM-D-202U-CRO1

UPC: 793442943942

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fish Finders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 3.56"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 3.12"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

$44.49

Options

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fish Finders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 3.56"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 3.12"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

Options

Overview

The Crown ball base contain mounting holes aligned to work with Crown Work Assist® clamp accessories. The addition of the RAM mounting system allows you to position your accessories for the best access and prevent damage due to shock and vibration.

hole pattern:

See Drawing

ball size:

D Size (2.25")

weight capacity:

6 lbs

materials:

Marine-grade aluminum

packaging type:

Poly Bag

Weight:

0.57 lb

Additional Information:

Crown Work Assist® Clamp not included with purchase.

Return Policy:

All products purchased from RAM® can be returned within 30 days with no restocking fee (return shipping not provided). See full return policy here.

Print

Documents

Hole Pattern Reference Guide

Material Handling Catalog

Knowledge Base: Ball Sizes

QUESTIONS & ANSWERS

Have a Question?

Ask a Question

I cannot find a drawing for this part and need the hole size and dimensions -- RAM-D-202U-CRO1

The 4-hole spacing for the RAM-D-202U-CRO1 is 1" x 1.75" with 2.5" distance between the wider 2-hole pattern. RAM recommends using M5x14 screws for the 4-hole pattern and either M6x14 or M6x25 screws for the 2-hole pattern.
