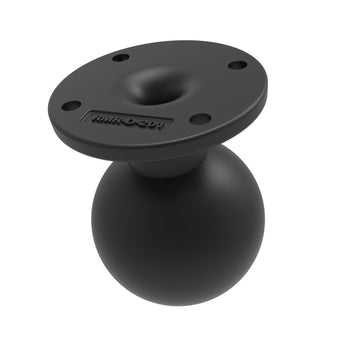

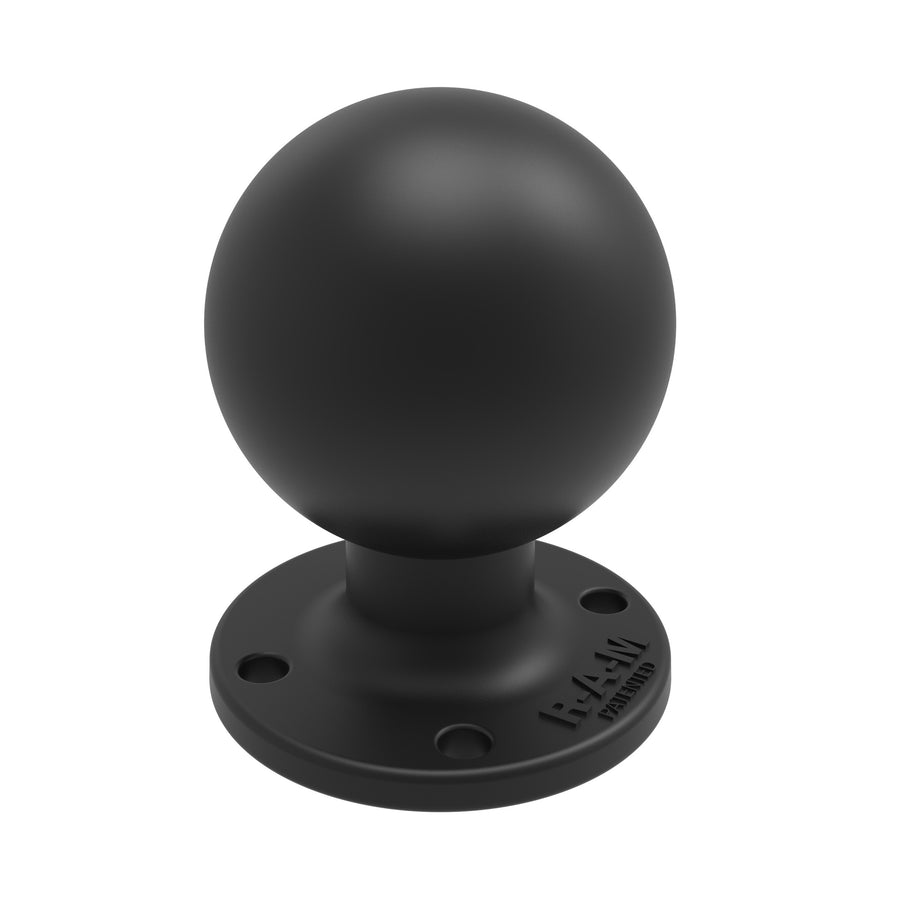

RAM® Round AMPS Plate with Ball
Part#: RAM-D-254U
UPC: 793442202544
Ball Icon D Size
$31.49

Overview

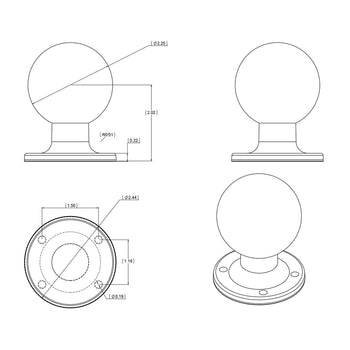

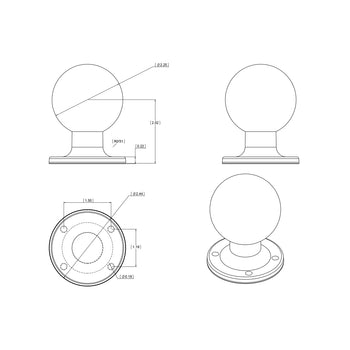

The RAM-D-254U consists of a 2.25" diameter rubber ball, connected to a 2.5" diameter plate containing the industry standard AMPS hole pattern. This AMPS hole pattern can drill down to any flat surface or connect to any RAM® holder or cradle. The D Size ball is compatible with any other RAM® D Size ball & socket components.

Features

  • 2.5" round plate connects to RAM® device holders containing the universal AMPS hole pattern
  • Included D size 2.25" RAM® rubber ball allows for connection to any D size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
  • Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty

hole pattern:

4-Hole AMPS: 1.181" x 1.496"

plate size:

2.5" Diameter

ball size:

D Size (2.25")

weight capacity:

Standard Use: 6 lbs
Heavy-Duty Use: 5 lbs

materials:

Marine-grade aluminum

packaging type:

Poly Bag

Weight:

0.5 lb
