RAM® Large Round Plate with Ball & Steel Reinforced Bolt - D Size

rammount.com
1-800-497-7479
sales@rammount.com

RAM^® Large Round Plate with Ball & Steel Reinforced Bolt - D Size
Part #: RAM-D-202U-IN1 UPC: 793442901867

Product Information

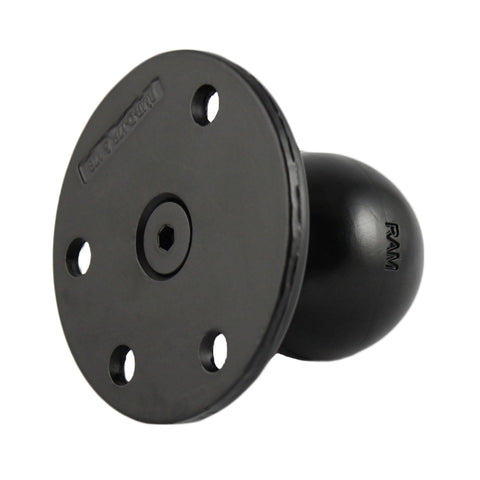

Overview	The RAM-D-202U-IN1 consists of a reinforced post, 2.25" diameter rubber ball, connected at right angles to a 3.68" diameter round base. The base has pre-drilled holes, including two holes at 180 degrees and three holes at 120 degrees.

Specifications
hole pattern	See Drawing
plate size	3.68" Diameter
ball size	D Size (2.25")
weight capacity	6 lbs
materials	Marine-grade aluminum
packaging type	Poly Bag
Weight	0.75 lb

RAM<sup>®</sup> Large Round Plate with Ball & Steel Reinforced Bolt - D Size

Questions about our products? Email us for support.

RAM^® Large Round Plate with Ball & Steel Reinforced Bolt - D Size

Part#: RAM-D-202U-IN1

UPC: 793442901867

D Size

Size Guide

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

$45.49

Options

D Size

Size Guide

Ball Size
Arm Sizes

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

Options

Overview

The RAM-D-202U-IN1 consists of a reinforced post, 2.25" diameter rubber ball, connected at right angles to a 3.68" diameter round base. The base has pre-drilled holes, including two holes at 180 degrees and three holes at 120 degrees.

hole pattern:

See Drawing

plate size:

3.68" Diameter

ball size:

D Size (2.25")

weight capacity:

6 lbs

materials:

Marine-grade aluminum

packaging type:

Poly Bag

Weight:

0.75 lb

Print

Documents

Drawing File - Large Round Ball Plate

Questions & Answers

Have a Question?

Ask a Question

Is the Countersink a typical 82 degrees?

There are 5 countersunk holes on this part. There are four on the base with 82CSK and on at the bottom with 82 degree CSK.
Is it possible to change out the ball size on this plate to the size c ball by getting one of the balls with a threaded insert in it? My current boat has the large marine electronics mount and I don’t need the size d ball but can’t seem to find an adapter from size d to size c.

The RAM-240U-IN1 has the same size plate and hole spacing as the D size round plates but comes with the smaller C size ball. The balls are injection molded onto the posts of the drill down bases and are not interchangeable.
