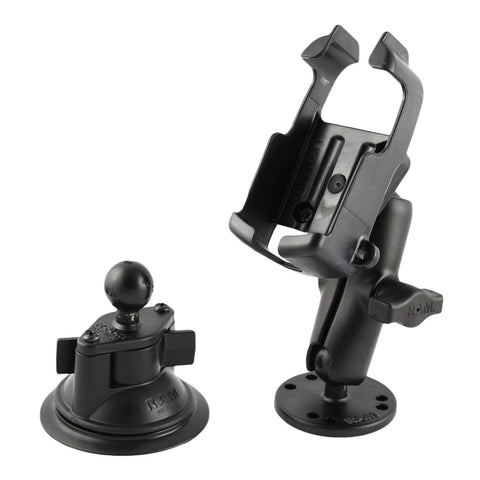

RAM® Twist-Lock™ Suction & Drill-Down Mount for the Garmin Vista + More
Part #: RAM-B-372-GA16 UPC: 793442928758 Patented

Product Information
Overview	This low profile, lightweight and secure suction cup is the perfect way to secure your Garmin eTrex in your vehicle. Simply attach the suction cup base to the windshield of your vehicle for an easy and safe way to view your Garmin eTrex in your vehicle. Rubber ball and socket technology allows for almost infinite adjustment and perfect viewing angles. High quality materials ensure your Garmin eTrex is safe, secure, and within easy reach. RAM’s patented design also dampens shock and vibration helping to extend the life of your mobile device.

Product Information

Overview

This low profile, lightweight and secure suction cup is the perfect way to secure your Garmin eTrex in your vehicle. Simply attach the suction cup base to the windshield of your vehicle for an easy and safe way to view your Garmin eTrex in your vehicle. Rubber ball and socket technology allows for almost infinite adjustment and perfect viewing angles. High quality materials ensure your Garmin eTrex is safe, secure, and within easy reach. RAM’s patented design also dampens shock and vibration helping to extend the life of your mobile device.

Specifications
hardware included	Assembly Hardware
suction size	3.3" Diameter
socket to socket length	3"
hole pattern	4-Hole AMPS: 1.181" x 1.496" 3-Hole 120-Degree: 1.812" Diameter
ball size	B Size (1")
weight capacity	Standard Use: 2 lbs Heavy-Duty Use: 1 lb
materials	Marine-grade aluminum High strength composite
packaging type	Retail Bag
Weight	0.97 lb

RAM® Twist-Lock™ Suction & Drill-Down Mount for the Garmin Vista + More

Questions about our products? Email us for support.

Patented

RAM® Twist-Lock™ Suction & Drill-Down Mount for the Garmin Vista + More

Part#: RAM-B-372-GA16

UPC: 793442928758

B Size

Medium Arm

Size Guide

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 3.73"	Overall Length 5.69"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A
