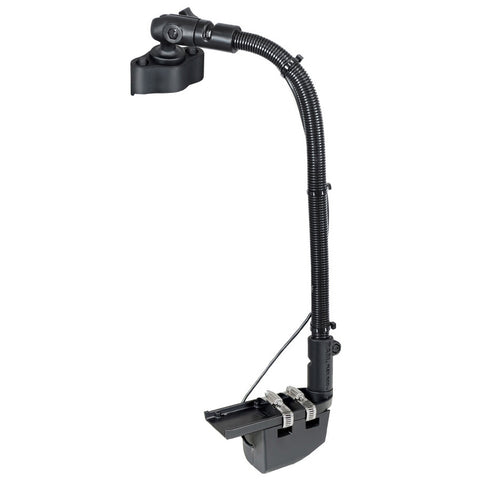

RAM^® Track Ball^™ Quick Release Mount for HydroWave^™ Speaker with 18" Rod
Part #: RAM-B-316-18-TRA2-383 UPC: 793442942433 Patented

Product Information
Overview	Kayak fishing is all about adaptability. RAM Mount offers the widest selection of kayak fishing accessories to adapt to a wide range of fishing scenarios. The custom mounting kit enables quick, effective deployment and retrieval of your HydroWave^™ speaker, while protecting it from damage. Perfect for kayak applications, the included rigid mounting arm can quickly be retrieved if you enter shallow water or when beaching your kayak. With little effort, the HydroWave^™ mount can quickly be moved to a different kayak with an existing 1" RAM ball. Compatible transducers include the HydroWave^™ Speaker. This product is not recommended for top loading gear tracks.

Product Information

Overview

Kayak fishing is all about adaptability. RAM Mount offers the widest selection of kayak fishing accessories to adapt to a wide range of fishing scenarios. The custom mounting kit enables quick, effective deployment and retrieval of your HydroWave^™ speaker, while protecting it from damage. Perfect for kayak applications, the included rigid mounting arm can quickly be retrieved if you enter shallow water or when beaching your kayak. With little effort, the HydroWave^™ mount can quickly be moved to a different kayak with an existing 1" RAM ball. Compatible transducers include the HydroWave^™ Speaker. This product is not recommended for top loading gear tracks.

Specifications
hardware included	Assembly Hardware (2) #20 Worm Drive Strap Clamp (6) #6-32 x 3/8" Sheet Metal Screws
t bolt dimensions	.248" x .93"
ball size	B Size (1")
weight capacity	Standard Use: 2 lbs Heavy-Duty Use: 1 lb
materials	Marine-grade aluminum High strength composite
packaging type	Box
Weight	1.2 lb

RAM<sup>®</sup> Track Ball<sup>™</sup> Quick Release Mount for HydroWave<sup>™</sup> Speaker with 18" Rod

Questions about our products? Email us for support.

Patented

RAM^® Track Ball^™ Quick Release Mount for HydroWave^™ Speaker with 18" Rod

Part#: RAM-B-316-18-TRA2-383

UPC: 793442942433

B Size

Size Guide

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

$91.49

B Size

Size Guide

Ball Size
Arm Sizes

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A
