$32.99
Short Arm

Features

  • Drill-down mounting solution; diamond plate features 2-hole AMPS hole pattern for attachment to compatible device holders

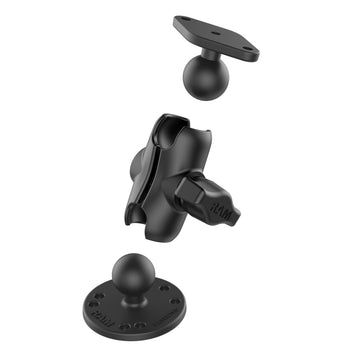

  • Includes round ball base, diamond ball base, and B size short length double socket arm; ball and socket technology allows for near-infinite adjustability
  • Made of Powder-coated, marine-grade aluminum for durability and reliability in the most demanding marine environments
  • Backed by a lifetime warranty
RAM® Double Ball Drill-Down Mount with Diamond Plate - Short
Part#:RAM-B-138U-A UPC:793442903298

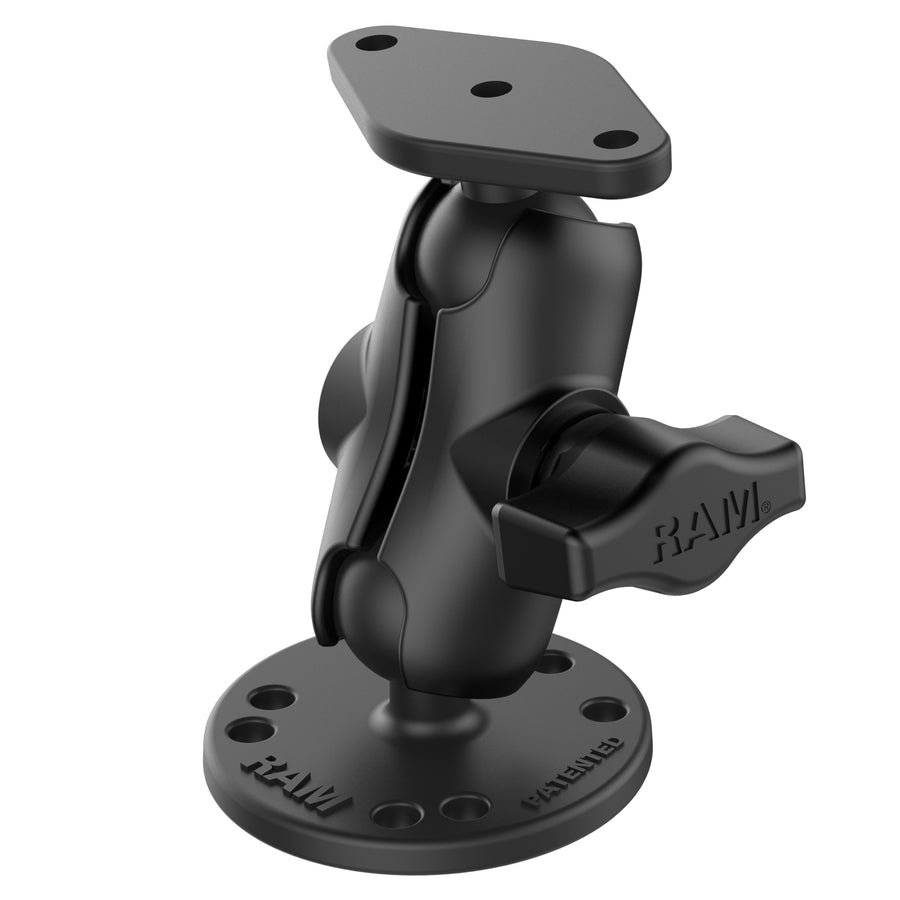

The RAM-B-138U-A consists of a 2.5" diameter round base that contains the universal AMPs hole pattern, SHORT double socket arm and diamond base adapter. The mount is designed with a 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The hole pattern found on the diamond base adapter will connect to most RAM cradles. The included RAM’s patented design dampens shock and vibration, helping to extend the life of your device.

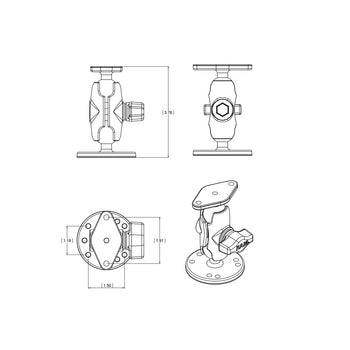

product dimensions

Overall Height: 3.75"

socket to socket length

1.75"

hole pattern

Diamond Plate: 2-Hole AMPS: 1.912"
Round Plate: 4-Hole AMPS: 1.181" x 1.496" & 3-Hole 120-Degree: 1.812" Diameter

plate size

Round Plate: 2.5" Diameter
Diamond Plate: 2.43" x 1.31"

ball size

B Size (1")

weight capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials

Marine-grade aluminum

packaging type

Poly Bag

Weight

0.42 lb

Components

RAM® Diamond Ball Base - B Size RAM-B-238U $9.49
RAM® Double Socket Arm - B Size Short RAM-B-201U-A $17.49
RAM® Round Plate with Ball - B Size RAM-B-202U $10.99
