RAM^® Large Round Plate with Ball and Steel Reinforced Bolt
Part #: RAM-240U-IN1 UPC: 793442909221

Product Information

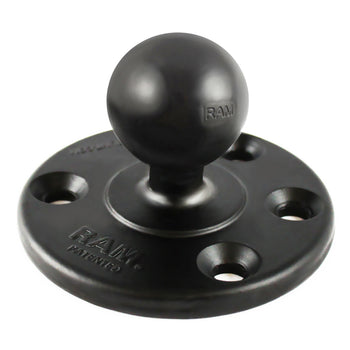

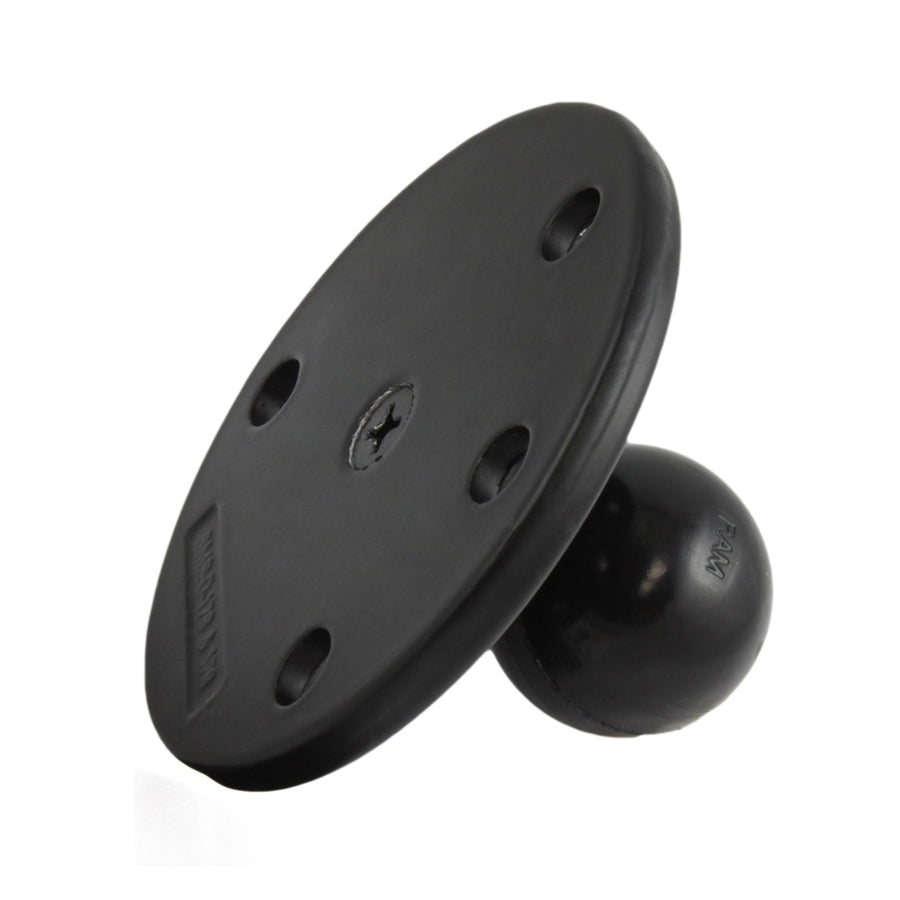

Overview	The RAM-240U consists of a steel reinforced 1.5" diameter rubber ball connected to a flat 3.68" diameter base. This base has 3-hole 120 degree pattern pre-drilled holes that connects to RAM Tough-Dock^™ Powered Docking Stations.

Specifications
hole pattern	See Drawing
ball size	C Size (1.5")
weight capacity	Standard Use: 4 lbs Heavy-Duty Use: 3 lbs
materials	Marine-grade aluminum
packaging type	Poly Bag
Weight	0.45 lb

RAM<sup>®</sup> Large Round Plate with Ball and Steel Reinforced Bolt

Questions about our products? Email us for support.

RAM^® Large Round Plate with Ball and Steel Reinforced Bolt

Part#: RAM-240U-IN1

UPC: 793442909221

C Size

Size Guide

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

$33.99

Options

C Size

Size Guide

Ball Size
Arm Sizes

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

Options

Overview

The RAM-240U consists of a steel reinforced 1.5" diameter rubber ball connected to a flat 3.68" diameter base. This base has 3-hole 120 degree pattern pre-drilled holes that connects to RAM Tough-Dock^™ Powered Docking Stations.

hole pattern:

See Drawing

ball size:

C Size (1.5")

weight capacity:

Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs

materials:

Marine-grade aluminum

packaging type:

Poly Bag

Weight:

0.45 lb
