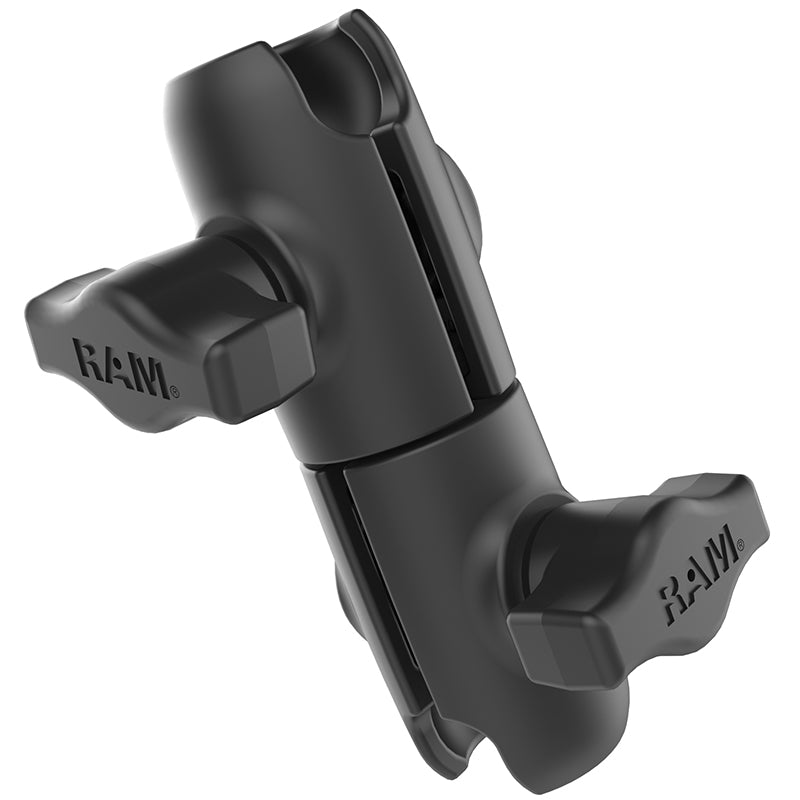

RAM^® Composite Double Socket Swivel Arm
Part #: RAP-B-200-12U UPC: 793442914591 Patented Features Double socket swivel arm features 360-degree center rotation with an overall length of 3.69" and a socket-to-socket length of 3.5" Attaches to any B size RAM^® ball component, including mounting bases and device holders Double ball and socket technology allows for near-infinite adjustability of your RAM^® mounting system Backed by a lifetime warranty

RAM^® Composite Double Socket Swivel Arm

Part #: RAP-B-200-12U UPC: 793442914591 Patented

Features

Double socket swivel arm features 360-degree center rotation with an overall length of 3.69" and a socket-to-socket length of 3.5"
Attaches to any B size RAM^® ball component, including mounting bases and device holders
Double ball and socket technology allows for near-infinite adjustability of your RAM^® mounting system
Backed by a lifetime warranty

RAM<sup>®</sup> Composite Double Socket Swivel Arm

Product Information
Overview	The RAP-B-200-12U composite double socket swivel arm consists of double B size 1" diameter open ball sockets with a 360-degree rotation point at the center of the arm. With open ball sockets at each end, attach RAM^® B size ball components for unsurpassed adjustability.

Specifications
product dimensions	Overall Length: 4.22"
socket to socket length	3.6"
ball size	B Size (1")
weight capacity	Standard Use: 2 lbs Heavy-Duty Use: 1 lb
materials	High strength composite
packaging type	Poly Bag
Weight	0.3 lb

Questions about our products? Email us for support.

Patented

RAM^® Composite Double Socket Swivel Arm

Part#: RAP-B-200-12U

UPC: 793442914591

B Size

Size Guide

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

$18.49

Options

B Size

Size Guide

Ball Size
Arm Sizes

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

Options

Overview

The RAP-B-200-12U composite double socket swivel arm consists of double B size 1" diameter open ball sockets with a 360-degree rotation point at the center of the arm. With open ball sockets at each end, attach RAM^® B size ball components for unsurpassed adjustability.

Features

Double socket swivel arm features 360-degree center rotation with an overall length of 3.69" and a socket-to-socket length of 3.5"
Attaches to any B size RAM^® ball component, including mounting bases and device holders
Double ball and socket technology allows for near-infinite adjustability of your RAM^® mounting system
Backed by a lifetime warranty

product dimensions:

Overall Length: 4.22"

socket to socket length:

3.6"

ball size:

B Size (1")

weight capacity:

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials:

High strength composite

packaging type:

Poly Bag

Weight:

0.3 lb

Print

Questions & Answers

Have a Question?

Ask a Question

Looks like it's not a real 360degree adjustment! Only a few positions can be locked in?

The two sockets of the RAP-B-200-12U can rotate 360 degrees independently of one another on the center axis then will be locked in place once you tighten the corresponding tightening knobs.
When the Socket ends are tightened, does the Swivel also get locked?

Yes, when the sockets are tightened the arm can not swivel.
