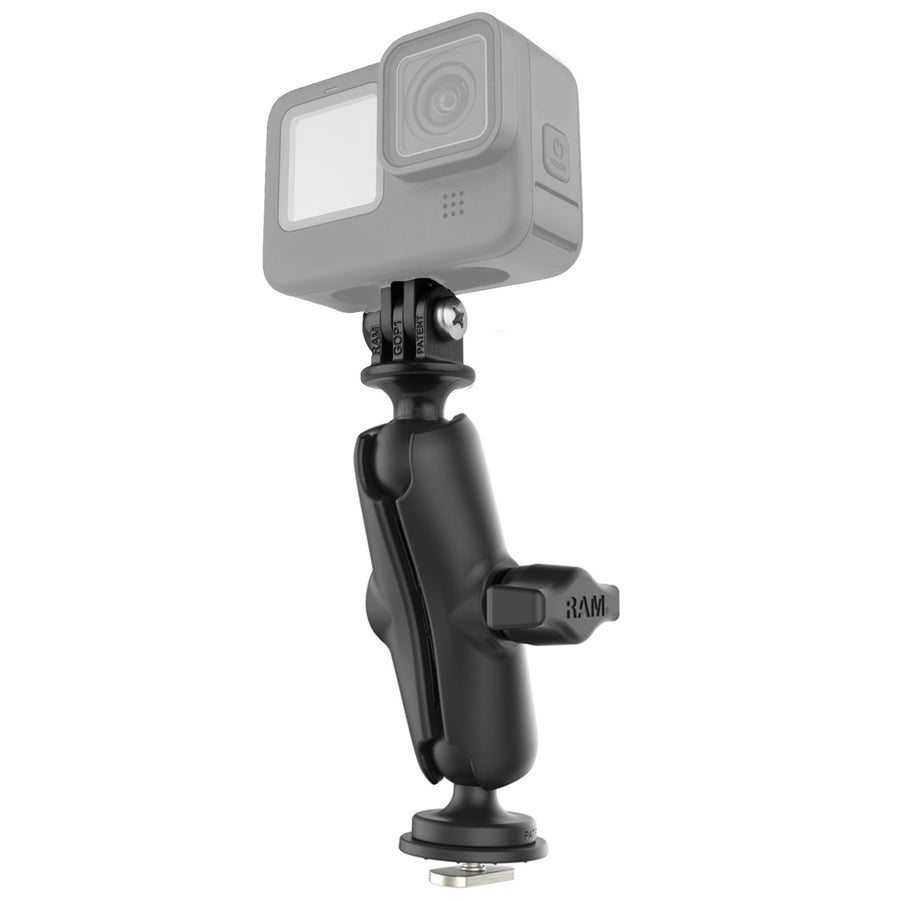

RAM® Track Ball™ Universal Action Camera Mount | |
---|---|
Part #:
RAP-B-202-GOP1-354-TRA1U
UPC:
793442955105
Features
|
![]() |
Product Information | |
---|---|
Overview | The RAP-B-202-GOP1-354-TRA1U consists of a Track Ball™ base, double socket arm and 1" diameter ball with custom GoPro® Hero adapter. The mount is designed with a RAM 1" diameter rubber ball and socket system that has adjustment points at both ends of the double socket arm - allowing for high adjustibility to achieve perfect viewing angles. The GoPro® Hero adapter attaches directly to the underside of the camera, replacing the factory mounting bracket. This kit is compatible with virtually any track system including the RAM Tough-Track™. |
Specifications | |
---|---|
hardware included | Assembly Hardware (1) Friction Washer (1) 1/4"-20 x 7/8" T-Bolt |
t bolt dimensions | .48" x .95" |
socket to socket length | 3" |
ball size | B Size (1") |
weight capacity | Standard Use: 2 lbs Heavy-Duty Use: 1 lb |
materials | High strength composite |
packaging type | Poly Bag |
Weight | 0.34 lb |


The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size
Holds .5 lbs.
Trail Cameras

B Size
Holds 2 lbs.
Phones, Action Cameras, Light Duty Tablets

C Size
Holds 4 lbs.
Fishfinders, Heavy Duty Tablets

D Size
Holds 6 lbs.
Heavy Monitors

E Size
Holds 15 lbs.
Heavy Monitors
The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.
Size | A Size | B Size | C Size | D Size | E Size |
---|---|---|---|---|---|
Short Arm | Overall Length N/A |
Overall Length 3.73" |
Overall Length 5.69" |
Overall Length 5.69" |
Overall Length 5.69" |
Socket-to-Socket Length N/A |
Socket-to-Socket Length 3" |
Socket-to-Socket Length 4.66" |
Socket-to-Socket Length 4.66" |
Socket-to-Socket Length 4.66" |
|
Medium Arm | Overall Length 2.42" |
Overall Length 3.73" |
Overall Length 5.69" |
Overall Length 8.44" |
Overall Length 12.63" |
Socket-to-Socket Length 1.75" |
Socket-to-Socket Length 3" |
Socket-to-Socket Length 4.66" |
Socket-to-Socket Length 6.88" |
Socket-to-Socket Length 9.88" |
|
Long Arm | Overall Length 6" |
Overall Length 6" |
Overall Length 9.13" |
Overall Length 12.98" |
Overall Length N/A |
Socket-to-Socket Length 5.31" |
Socket-to-Socket Length 5.31" |
Socket-to-Socket Length 8" |
Socket-to-Socket Length 11.41" |
Socket-to-Socket Length N/A |


The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size
Holds .5 lbs.
Trail Cameras

B Size
Holds 2 lbs.
Phones, Action Cameras, Light Duty Tablets

C Size
Holds 4 lbs.
Fishfinders, Heavy Duty Tablets

D Size
Holds 6 lbs.
Heavy Monitors

E Size
Holds 15 lbs.
Heavy Monitors
The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.
Size | A Size | B Size | C Size | D Size | E Size |
---|---|---|---|---|---|
Short Arm | Overall Length N/A |
Overall Length 3.73" |
Overall Length 5.69" |
Overall Length 5.69" |
Overall Length 5.69" |
Socket-to-Socket Length N/A |
Socket-to-Socket Length 3" |
Socket-to-Socket Length 4.66" |
Socket-to-Socket Length 4.66" |
Socket-to-Socket Length 4.66" |
|
Medium Arm | Overall Length 2.42" |
Overall Length 3.73" |
Overall Length 5.69" |
Overall Length 8.44" |
Overall Length 12.63" |
Socket-to-Socket Length 1.75" |
Socket-to-Socket Length 3" |
Socket-to-Socket Length 4.66" |
Socket-to-Socket Length 6.88" |
Socket-to-Socket Length 9.88" |
|
Long Arm | Overall Length 6" |
Overall Length 6" |
Overall Length 9.13" |
Overall Length 12.98" |
Overall Length N/A |
Socket-to-Socket Length 5.31" |
Socket-to-Socket Length 5.31" |
Socket-to-Socket Length 8" |
Socket-to-Socket Length 11.41" |
Socket-to-Socket Length N/A |

Get a notification as soon as this product is available by signing up below!
Thank you for your interest in RAP-B-202-GOP1-354-TRA1U!
We'll email you once the item is available.
Overview
The RAP-B-202-GOP1-354-TRA1U consists of a Track Ball™ base, double socket arm and 1" diameter ball with custom GoPro® Hero adapter. The mount is designed with a RAM 1" diameter rubber ball and socket system that has adjustment points at both ends of the double socket arm - allowing for high adjustibility to achieve perfect viewing angles. The GoPro® Hero adapter attaches directly to the underside of the camera, replacing the factory mounting bracket. This kit is compatible with virtually any track system including the RAM Tough-Track™.
Features
- Includes rubber ball connected to a custom action camera adapter compatible with GoPro® and most other brands
- Adapter attaches directly to the underside of the action camera to replace the factory mounting bracket
- Includes B size medium length RAM socket arm and B size RAM® Track-Ball™ for mounting to any RAM® Tough-Track™ or third party kayak track system
- Backed by a lifetime warranty
hardware included:
Assembly Hardware
(1) Friction Washer
(1) 1/4"-20 x 7/8" T-Bolt
t bolt dimensions:
.48" x .95"
socket to socket length:
3"
ball size:
B Size (1")
weight capacity:
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials:
High strength composite
packaging type:
Poly Bag
Weight:
0.34 lb
