RAM^® Composite Drill-Down Double Ratchet Arm with Ball
Part #: RAP-411D-114-PA2-BGU UPC: 793442028168 Patented & Pats. Pend. Features Double ratchet arm provides a longer reach of 19.5" Drill-down base with 4-hole AMPS pattern Backed by a lifetime warranty

Product Information

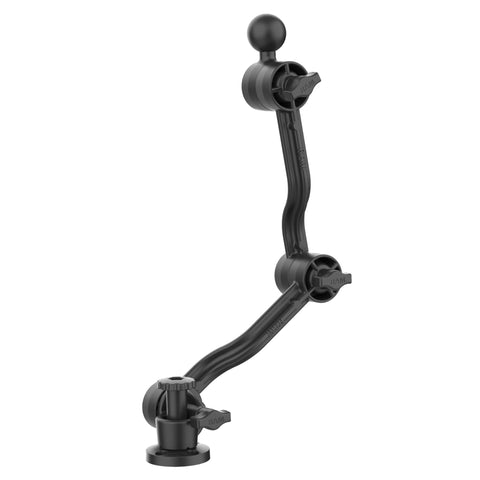

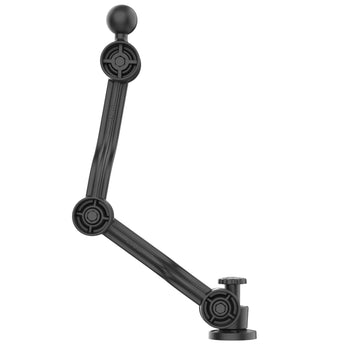

Overview	The RAM^® Composite Drill-Down Double Ratchet Arm with Ball (RAP-411D-114-PA2-BGU) is a light-weight, versatile mounting base with more reach than traditional RAM^® double ball and socket arms. Each ratchet end features locking teeth that adjust in small increments, providing a reinforced hold in rugged environments. Complete your solution and attach any C size arm and device holder.

Specifications

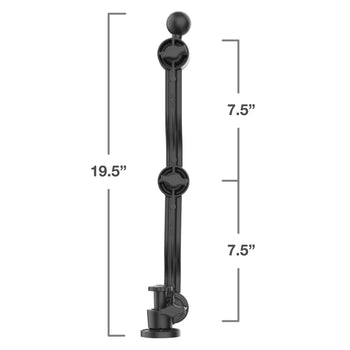

product dimensions	Overall Height: 19.5"
hole pattern	4-Hole AMPS: 1.181" x 1.496"
plate size	2.5" Diameter
ball size	C Size (1.5")
weight capacity	Standard Use: 4 lbs Heavy-Duty Use: 3 lbs
materials	High strength composite
packaging type	Poly Bag
Weight	1.16 lb

RAM<sup>®</sup> Composite Drill-Down Double Ratchet Arm with Ball

Questions about our products? Email us for support.

Patented & Pats. Pend.

RAM^® Composite Drill-Down Double Ratchet Arm with Ball

Part#: RAP-411D-114-PA2-BGU

UPC: 793442028168

C Size

Size Guide

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

$61.49

Options

C Size

Size Guide

Ball Size
Arm Sizes

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A
