Overview

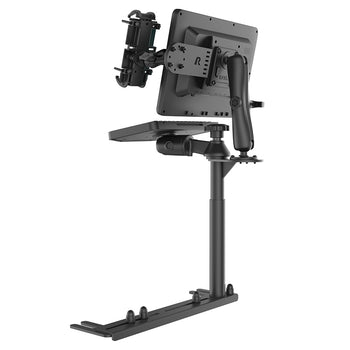

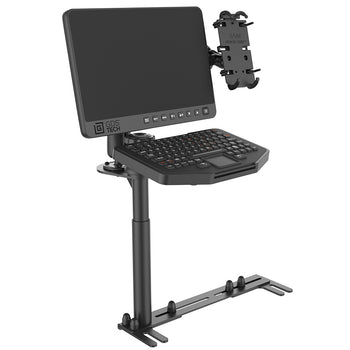

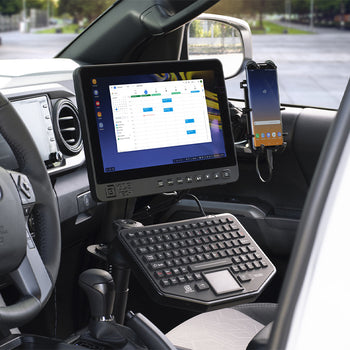

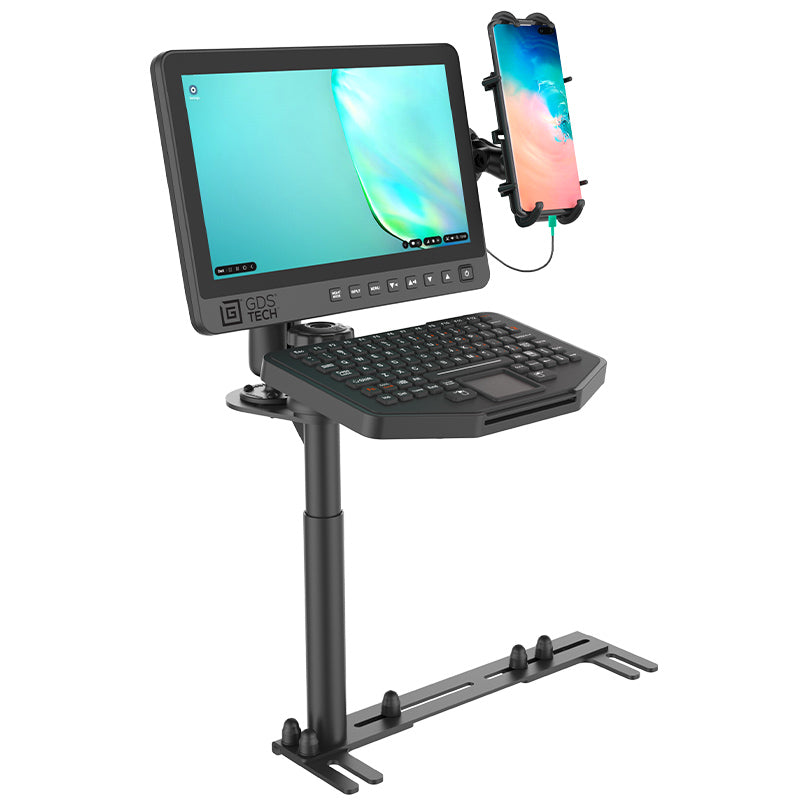

All the benefits of the GDS® Ecosystem™ in one mounting system to create your very own mobile workstation. Centralized around the GDS® View™ 13.3" touch screen monitor, the GDS® Ecosystem™ Vehicle Bundle is mounted on the universal RAM® No-Drill™ vehicle base and tele-pole swing arm system, accompanied by the GDS® Keyboard™ with trackpad, display bracket, RAM® Quick-Grip™ XL phone mount, the GDS® Tough-Hub™, charging accessories and USB Type-C extension cable. This all-in-one mobile workstation is highly adjustable and supports add-on peripherals for a more customized workstation. Take advantage of this vehicle mount bundle to enable Samsung DeX In-Vehicle by placing your DeX compatible phone into the RAM® Quick-Grip™ XL and plugging your DeX Cable directly into the GDS® View™ Monitor.
Features
- Transforms your vehicle into a mobile workstation with highly adjustable RAM® components and enabled by GDS® Tech™ peripherals
- Includes RAM® No-Drill™ Universal Vehicle Base and tele-pole swing arm system, GDS® View™ 13.3" touch screen monitor, GDS® Keyboard™, RAM® Quick-Grip™ Phone Mount, display bracket, GDS® Tough-Hub™, CLA charger, and USB Type-C Cables
- Compatible with Samsung DeX
hardware included:
Assembly Hardware
(1) HDMI Cable
(1) VGA Cable
(1) USB Type-B to USB Type-A Cable
Hardwire & CLA chargers for monitor
USB Type-C cable & CLA charger for hub & phone
holder dimensions:
For Phone Holder:
Height Range: 5.75" - 8.25"
Width Range: 2.625" - 3.625"
Max Depth: .72"

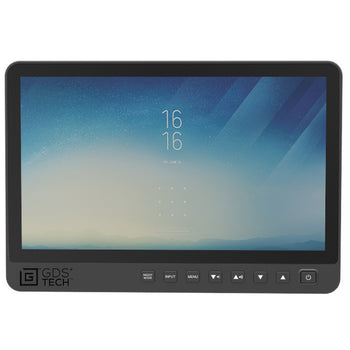

monitor specifications:
Screen Size: 13.3"
Anti-glare and Anti-fingerprint treatment applied on LCD
Max Resolution: 1920 x 1080 high resolution
Aspect ratio: 16:9
Tough Panel: 2-point capacitive touch
Audio: (2) 2W Speakers
Brightness: 800nits
Contrast ratio: 1000:1
Red monochrome night mode to reduce eye strain for night viewing
Control buttons on front of monitor for easy access
Zip tie attachment loops for cable management
materials:
Powder coated steel
Marine grade-aluminum
High strength composite
packaging type:
Box
input voltage:
Monitor: 10-30V DC
CLA Charger for Hub: 12-24V DC
power output:
63W Total (45W for Type-C & 18W for Type-A)
output current:
6A max
operating temperature:
-10°C to +50°C
storage temperature:
0°C to +45°C
ports:
CLA Charger:
(1) Type-C Female (PD)
(1) Type-A Female (QC 3.0)

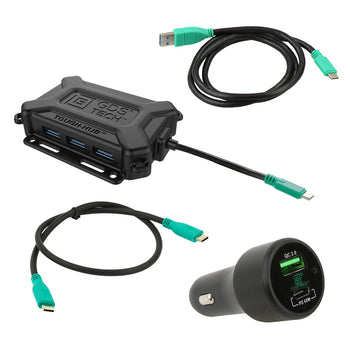

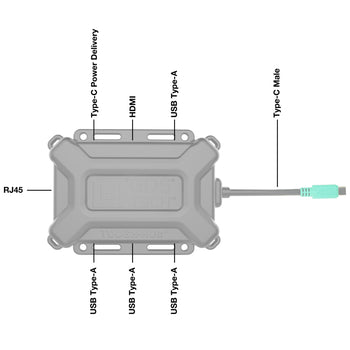

GDS® Tough-Hub™:
(4) USB Type A Ports - One supports BC 1.2 with power up to 7.5W (5V/1.5A)
(1) RJ45 Port - Supports 10/100/1000Mbps bandwidth
(1) HDMI Port - Resolution up to 4Kx2K@30Hz
(1) USB Type-C Port - Supports data and PD charging 100W (20V/5A))
GDS® View™ Monitor:
(1) Power Input
(1) HDMI
(1) VGA
(1) 3.5mm Audio Output
(1) USB Type-B (Host Input)
(3) USB Type-A (Peripheral Outputs)
regulatory:
Meets SAE J-1113
Integrated Short Circuit Protection (SCP)
certifications:
MIL-STD-810H 514.5 Vibration Tested
FCC, CE, IC, RCM, WEEE, E-Mark, ISO 7637-2, and RoHS
Weight:
27.0 lb
Additional Information:

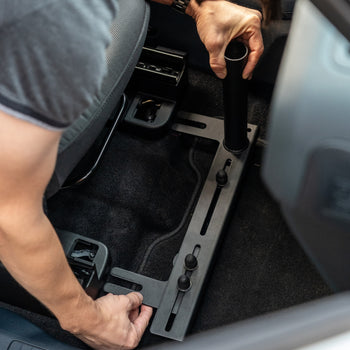

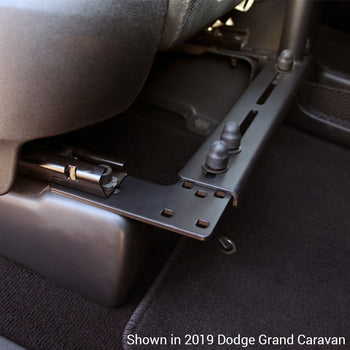

Vehicles in this compatibility list have been tested and confirmed with this base. For all other vehicles, to determine fitment please review the steps in this document:
Universal Vehicle Laptop Mount Compatibility Guide
Depending on your vehicle, some installations may limit the adjustability of the passenger seat.
Questions & Answers
Have a Question?
-
How can I be sure the universal mount is compatible with my vehicle before placing an order?
There is a compatibility guide available in the “Resources” section of this product page. The compatibility guide will show you how to measure your passenger seat bolts and surrounding area to make sure the mount can be installed in your vehicle.
