GDS® View™ 13.3" Touch Screen Monitor | |
---|---|
Part #:
RAM-GDS-MON-13-1
UPC:
793442008481
Features
|
![]() |
Product Information | |
---|---|

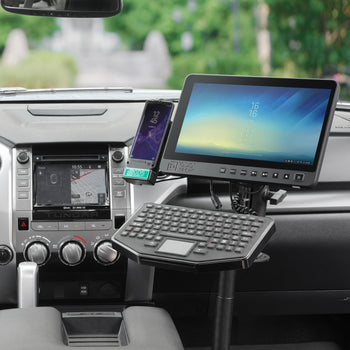

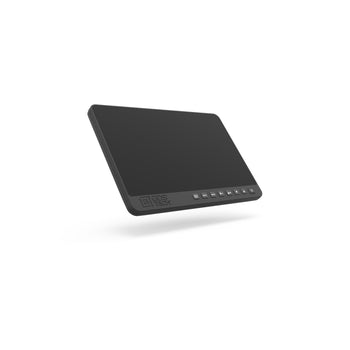

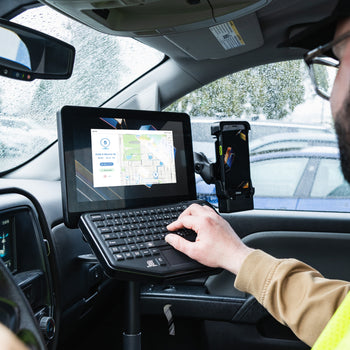

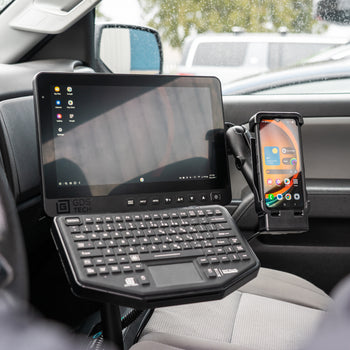

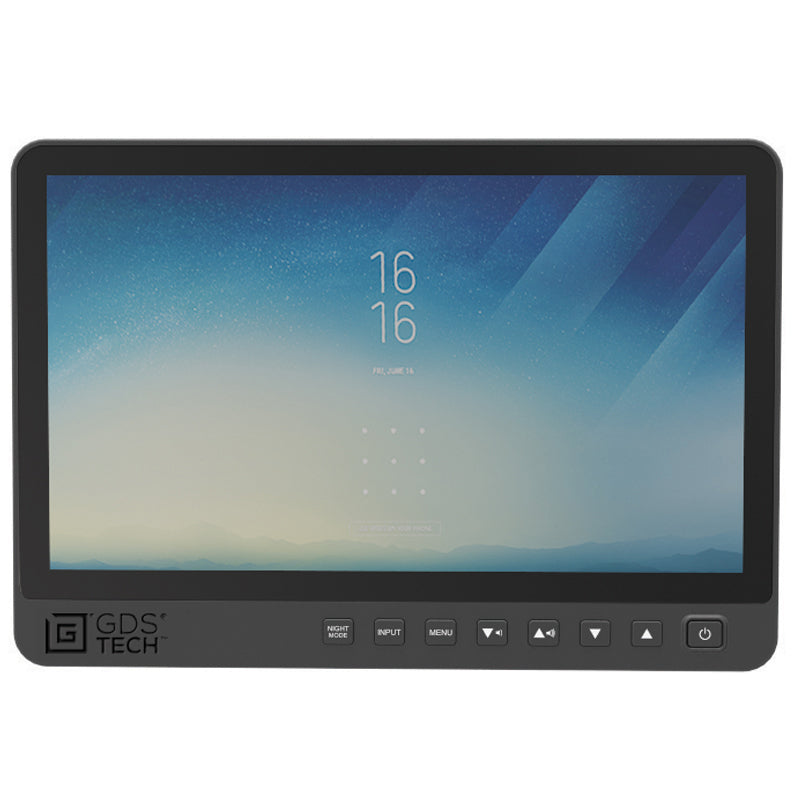

Overview | The GDS® View™ 13.3” touchscreen monitor lets you take the PC experience on the road. Featuring VESA hole patterns compatible with the RAM-2461U and RAM-D-2461U mounting plates, create a mobile workstation that takes advantage of the GDS® Ecosystem™ for data sync and charging capabilities. The GDS® View™ monitor has undergone MIL-STD-810H 514.5 vibration testing, ensuring performance in the most demanding environments. This two-point capacitive touchscreen monitor allows you to pinch, zoom, and select – and includes an anti-glare and anti-fingerprint treatment. Control buttons on the front of the monitor are easy to access, while a red monochrome night mode helps to reduce eyestrain. In addition, two integrated 2W speakers allow for audio. Includes HDMI, VGA, three USB-A Ports, one USB-B Port, and USB Type-B to USB Type-A cables. Always Protected. Always Connected.® |
Specifications | |
---|---|
hardware included | (4) #10-24 x 5/8" Machine Screws (4) #10 Stainless Steel Washers (4) #10 Lock Washers (1) HDMI Cable (1) VGA Cable (1) USB Type-B to USB Type-A Cable Vehicle hardwire and cigarette lighter chargers |
monitor specifications | Screen Size: 13.3" Anti-glare and Anti-fingerprint treatment applied on LCD Max Resolution: 1920 x 1080 high resolution Aspect ratio: 16:9 Tough Panel: 2-point capacitive touch Audio: (2) 2W Speakers Brightness: 800nits Contrast ratio: 1000:1 Red monochrome night mode to reduce eye strain for night viewing Control buttons on front of monitor for easy access Zip tie attachment loops for cable management |
hole pattern | 75 x 75mm VESA |
packaging type | Retail Box |
input voltage | 10-30VDC |

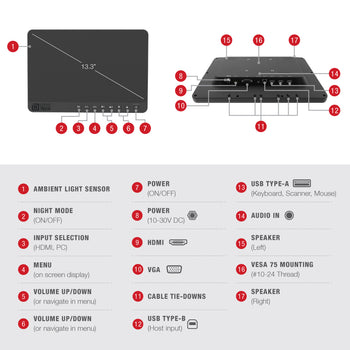

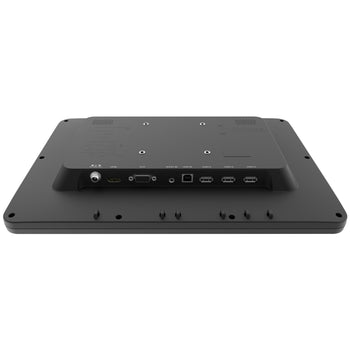

ports | (1) Power Input (1) HDMI (1) VGA (1) 3.5mm Audio Output (1) USB Type-B (Host Input) (3) USB Type-A (Peripheral Outputs) |
regulatory | Meets SAE J-1113 Integrated Short Circuit Protection (SCP) |
certifications | MIL-STD-810H 514.5 Vibration Tested FCC, CE, IC, RCM, WEEE, E-Mark, ISO 7637-2, and RoHS |
Warranty | 1 year warranty |
Weight | 6.16 lb |

Get a notification as soon as this product is available by signing up below!
Thank you for your interest in RAM-GDS-MON-13-1!
We'll email you once the item is available.
Overview
The GDS® View™ 13.3” touchscreen monitor lets you take the PC experience on the road. Featuring VESA hole patterns compatible with the RAM-2461U and RAM-D-2461U mounting plates, create a mobile workstation that takes advantage of the GDS® Ecosystem™ for data sync and charging capabilities. The GDS® View™ monitor has undergone MIL-STD-810H 514.5 vibration testing, ensuring performance in the most demanding environments. This two-point capacitive touchscreen monitor allows you to pinch, zoom, and select – and includes an anti-glare and anti-fingerprint treatment. Control buttons on the front of the monitor are easy to access, while a red monochrome night mode helps to reduce eyestrain. In addition, two integrated 2W speakers allow for audio. Includes HDMI, VGA, three USB-A Ports, one USB-B Port, and USB Type-B to USB Type-A cables. Always Protected. Always Connected.®
Features
- Two-point capacitive 13.3" touch screen monitor with anti-glare and anti-fingerprint treatment
- MIL-STD-810G 514.5 vibration tested to ensure performance in the most demanding environments
- Includes 75 x 75mm VESA hole pattern for attachment to compatible RAM® ball plates; double ball and socket technology allows for ideal placement
- Backed by a 1-year warranty
hardware included:
(4) #10-24 x 5/8" Machine Screws
(4) #10 Stainless Steel Washers
(4) #10 Lock Washers
(1) HDMI Cable
(1) VGA Cable
(1) USB Type-B to USB Type-A Cable
Vehicle hardwire and cigarette lighter chargers
monitor specifications:
Screen Size: 13.3"
Anti-glare and Anti-fingerprint treatment applied on LCD
Max Resolution: 1920 x 1080 high resolution
Aspect ratio: 16:9
Tough Panel: 2-point capacitive touch
Audio: (2) 2W Speakers
Brightness: 800nits
Contrast ratio: 1000:1
Red monochrome night mode to reduce eye strain for night viewing
Control buttons on front of monitor for easy access
Zip tie attachment loops for cable management
hole pattern:
75 x 75mm VESA
packaging type:
Retail Box
input voltage:
10-30VDC
ports:
(1) Power Input
(1) HDMI
(1) VGA
(1) 3.5mm Audio Output
(1) USB Type-B (Host Input)
(3) USB Type-A (Peripheral Outputs)
regulatory:
Meets SAE J-1113
Integrated Short Circuit Protection (SCP)
certifications:
MIL-STD-810H 514.5 Vibration Tested
FCC, CE, IC, RCM, WEEE, E-Mark, ISO 7637-2, and RoHS
Warranty:
1 year warranty
Weight:
6.16 lb
