GDS® Uni-Conn™ Powered Right Locking Snap-In Dock with USB-C Connector
One Dock to Connect Them All™
Part#: RAM-GDS-DOCKLR-U3CPU
UPC: 793442023026
$107.49

Overview

The GDS® Uni-Conn™ Right Locking Powered Snap-In Dock with USB-C Connector (RAM-GDS-DOCKLR-U3CPU) is a versatile snap-in docking solution for devices enclosed in an IntelliSkin® Thin-Case™ with rear pogo pads and features a key lock for additional theft deterrence. Power is provided to the pogo pins integrated into the GDS® Uni-Conn™ adapter via the USB-C connector. This dock features a 2-hole AMPS pattern, allowing it to be integrated into the RAM® ball and socket mounting system with a RAM® Diamond or Round Ball Base. The snap-in attachment method makes this dock ideal for rugged environments, including vehicles. The GDS® Uni-conn™ dock is backed by a 3-year warranty. Warranty is void if lever stop is not installed. One Dock to Connect Them All™ Always Protected. Always Connected.®

Features

  • Snap-in dock featuring GDS® Technology™ uses an integrated pogo pin connector to provide high-speed charging
  • Designed for devices enclosed in the IntelliSkin® Thin-Case™ with Rear Pogo Pads
  • USB Type-C female connector enables high-speed charging capabilities

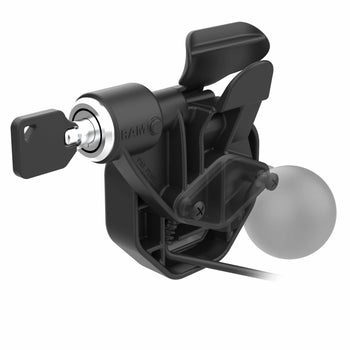

  • Right side key lock provides additional theft deterrence
  • Backed by a 3-year warranty

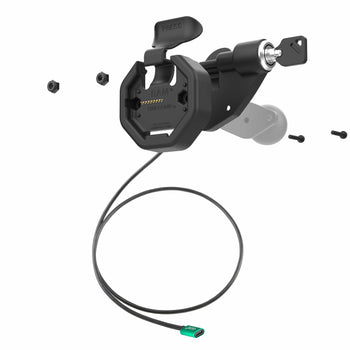

hardware included:

(2) Keys
(1) Locking Lever Stop
(2) #8-32 x 1.125" Machine Screws
(2) #8-32 Nylock Nuts

hole pattern:

2-Hole AMPS: 1.912"

materials:

High strength composite

packaging type:

Poly Bag

output voltage:

USB-C Tablets: 5V - 20V @ 3A Max
mUSB Tablets: 9V @ 1.67A Max

power output:

60W Max

input connector:

USB Type-C (Female)

input cable length:

800mm

Warranty:

3 year warranty

Weight:

0.53 lb

Additional Information:

The Lever Stop included with this dock is required in order to function properly. Warranty on dock is void if dock is used without Lever Stop. GDS® Uni-Conn™ docks are not recommended for high vibration applications such as forklifts.
