RAM® Square Post Clamp Base for Posts 1.75" - 4" Wide - C Size
Part #: RAM-247U UPC: 793442910456 Features Clamping base ideal for square posts from 1.75" - 4" in width; adjustable and easily removable Included C size 1.5" RAM® rubber ball allows for connection to any C size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments Backed by a lifetime warranty

RAM® Square Post Clamp Base for Posts 1.75" - 4" Wide - C Size

Part #: RAM-247U UPC: 793442910456

Features

Clamping base ideal for square posts from 1.75" - 4" in width; adjustable and easily removable
Included C size 1.5" RAM® rubber ball allows for connection to any C size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
Backed by a lifetime warranty

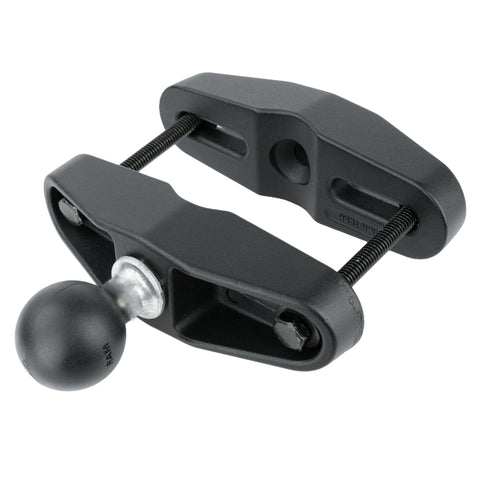

RAM® Square Post Clamp Base for Posts 1.75

Product Information
Overview	The RAM-247U is a clamp base with 1.5" rubber ball that will connect to square posts ranging from 1.75" to 4" in width. Ideal for forklifts, the slotted holes on this base make this varation the most universal clamp base option.

Specifications
hardware included	Assembly Hardware (2) 5/16"-18 x 3.5" Hex Bolts (2) 5/16"-18 Nuts (2) Flat Washers (2) Lock Washers (2) Rubber Caps
clamp range	1.75" - 4" width
ball size	C Size (1.5")
weight capacity	Standard Use: 4 lbs Heavy-Duty Use: 3 lbs
materials	Marine-grade aluminum
packaging type	Poly Bag
Weight	1.45 lb

RAM® Square Post Clamp Base for Posts 1.75" - 4" Wide - C Size

Part#: RAM-247U

UPC: 793442910456

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

$63.99

Ball Size
Arm Sizes

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

Overview

The RAM-247U is a clamp base with 1.5" rubber ball that will connect to square posts ranging from 1.75" to 4" in width. Ideal for forklifts, the slotted holes on this base make this varation the most universal clamp base option.

Features

Clamping base ideal for square posts from 1.75" - 4" in width; adjustable and easily removable
Included C size 1.5" RAM® rubber ball allows for connection to any C size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
Backed by a lifetime warranty

hardware included:

Assembly Hardware
(2) 5/16"-18 x 3.5" Hex Bolts
(2) 5/16"-18 Nuts
(2) Flat Washers
(2) Lock Washers
(2) Rubber Caps

clamp range:

1.75" - 4" width

ball size:

C Size (1.5")

weight capacity:

Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs

materials:

Marine-grade aluminum

packaging type:

Poly Bag

Weight:

1.45 lb

Return Policy:

All products purchased from RAM® can be returned within 30 days with no restocking fee (return shipping not provided). See full return policy here.

Print

Instructions

Square Post Clamp Base Assembly Guide

RAM® Square Post Clamp Base for Posts 1.75" - 4" Wide - C Size
