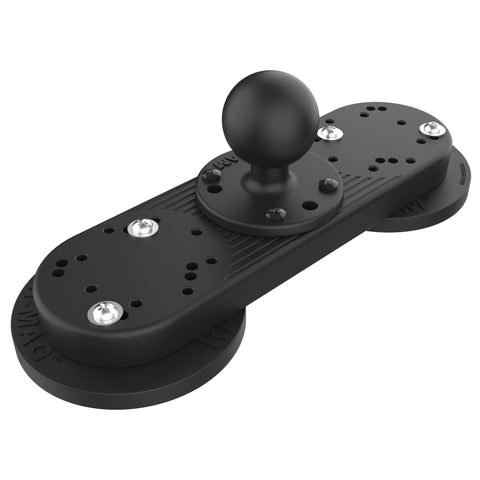

RAM® Tough-Mag™ Double Magnetic Ball Base
Part #: RAM-202-333-MAG88U UPC: 793442024320 Features Dual RAM® Tough-Mag™ base magnetizes to any ferrous metal surface Includes round ball base compatible with any C size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability Magnetizes to any ferrous metal surface Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments Backed by a lifetime warranty

RAM® Tough-Mag™ Double Magnetic Ball Base

Part #: RAM-202-333-MAG88U UPC: 793442024320

Features

Dual RAM® Tough-Mag™ base magnetizes to any ferrous metal surface
Includes round ball base compatible with any C size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
Magnetizes to any ferrous metal surface
Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
Backed by a lifetime warranty

RAM® Tough-Mag™ Double Magnetic Ball Base

Product Information
Overview	The RAM® Tough-Mag™ Double Magnetic Ball Base (RAM-202-333-MAG88U) doubles up the strength of two RAM® Tough-Mag™ pucks to create a heavier-duty magnetic mounting solution for larger tablets or peripheral devices. This solution features a C size ball base, complete the mounting solution with your preferred device holder and C size arm. Each RAM® Tough-Mag™ is built with 10 industrial-strength N52 grade magnets that magnetize to any ferrous metal surface and rubber coating that protects the metal surface you're attaching to.

Product Information

Overview

The RAM® Tough-Mag™ Double Magnetic Ball Base (RAM-202-333-MAG88U) doubles up the strength of two RAM® Tough-Mag™ pucks to create a heavier-duty magnetic mounting solution for larger tablets or peripheral devices. This solution features a C size ball base, complete the mounting solution with your preferred device holder and C size arm. Each RAM® Tough-Mag™ is built with 10 industrial-strength N52 grade magnets that magnetize to any ferrous metal surface and rubber coating that protects the metal surface you're attaching to.

Specifications

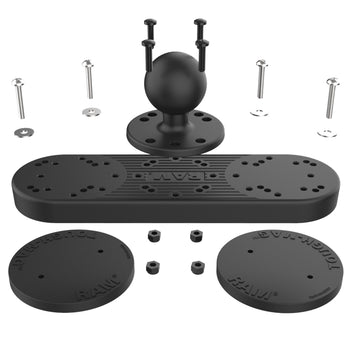

hardware included	Assembly Hardware
product dimensions	Overall Length: 9.25" Overall Width: 3.46" Overall Height: 3.25"
ball size	C Size (1.5")
weight capacity	Standard Use: 4 lbs Heavy-Duty Use: 3 lbs
materials	Marine-grade aluminum High strength composite N52 Magnets (Qty 20)
packaging type	Poly Bag
Weight	1.26 lb

RAM® Tough-Mag™ Double Magnetic Ball Base

Part#: RAM-202-333-MAG88U

UPC: 793442024320

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

$167.49

Options

Ball Size
Arm Sizes

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

Options

Overview

Features

Dual RAM® Tough-Mag™ base magnetizes to any ferrous metal surface
Includes round ball base compatible with any C size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
Magnetizes to any ferrous metal surface
Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
Backed by a lifetime warranty
