RAM® Universal Marine Electronic Mount - C Size Long | |
---|---|
Part #:
RAM-111U-D
UPC:
793442001567
Features
|
![]() |
Product Information | |
---|---|

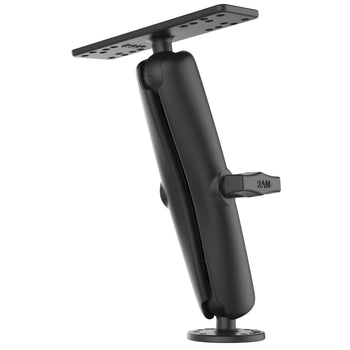

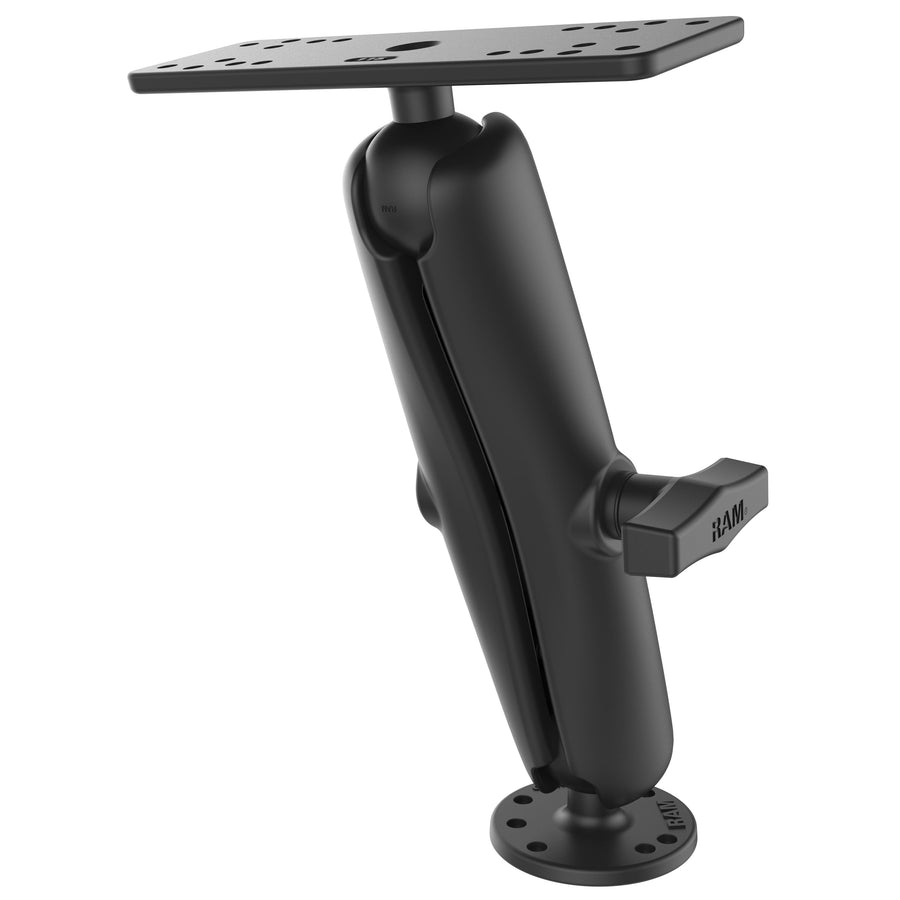

Overview | The RAM-111U-D consists of a 2.5" diameter round base that contains the universal AMPS hole pattern, 9 inch double socket arm and 6.25" x 2" rectangle base. The rectangle base contains different combinations of pre-drilled holes which will match up to many electronic devices and mounts, including Marine GPS, CB Radios, Ham Radios, Gimbal Brackets and more. |
Specifications | |
---|---|
product dimensions | Overall Height: 10.85" |
socket to socket length | 8" |

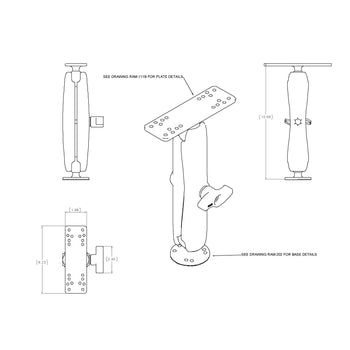

hole pattern | 4-Hole AMPS: 1.181" x 1.496" 3-Hole 120-Degree: 1.812" Diameter See Drawing |
plate size | Rectangular Plate: 6.25" x 2" Round Plate: 2.5" Diameter |
ball size | C Size (1.5") |
weight capacity | Standard Use: 4 lbs Heavy-Duty Use: 3 lbs |
materials | Marine-grade aluminum |
packaging type | Poly Bag |
Weight | 2.3 lb |
Additional Information | The included plate is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device. |


The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size
Holds .5 lbs.
Trail Cameras

B Size
Holds 2 lbs.
Phones, Action Cameras, Light Duty Tablets

C Size
Holds 4 lbs.
Fishfinders, Heavy Duty Tablets

D Size
Holds 6 lbs.
Heavy Monitors

E Size
Holds 15 lbs.
Heavy Monitors
The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.
Size | A Size | B Size | C Size | D Size | E Size |
---|---|---|---|---|---|
Short Arm | Overall Length N/A |
Overall Length 2.42" |
Overall Length 3.56" |
Overall Length 5.69" |
Overall Length 5.69" |
Socket-to-Socket Length N/A |
Socket-to-Socket Length 1.75" |
Socket-to-Socket Length 2.5" |
Socket-to-Socket Length 4.66" |
Socket-to-Socket Length 4.66" |
|
Medium Arm | Overall Length 2.42" |
Overall Length 3.73" |
Overall Length 5.69" |
Overall Length 8.44" |
Overall Length 12.63" |
Socket-to-Socket Length 1.75" |
Socket-to-Socket Length 3" |
Socket-to-Socket Length 4.66" |
Socket-to-Socket Length 6.88" |
Socket-to-Socket Length 9.88" |
|
Long Arm | Overall Length 6" |
Overall Length 6" |
Overall Length 9.13" |
Overall Length 12.98" |
Overall Length N/A |
Socket-to-Socket Length 5.31" |
Socket-to-Socket Length 5.31" |
Socket-to-Socket Length 8" |
Socket-to-Socket Length 11.41" |
Socket-to-Socket Length N/A |
Compatible Devices
Garmin
ECHOMAP Plus 72cv
ECHOMAP Plus 73cv
ECHOMAP Plus 74cv
ECHOMAP Plus 75cv
ECHOMAP Plus 77cv
ECHOMAP UHD2 5"
ECHOMAP UHD2 7"
GPSMAP 722
GPSMAP 722xs
GPSMAP 723
GPSMAP 723xsv
GPSMAP 742
GPSMAP 742xs
GPSMAP 743
GPSMAP 743xsv
Striker Plus 5cv
Striker Vivid 5cv
Striker Plus 7cv
Striker Plus 7sv
Striker Vivid 5cv
Striker Vivid 7cv
Striker Vivid 7sv
Fishfinders and GPS Chartplotters
Lowrance
Eagle 7
Eagle 9
Elite FS 7
HDS Carbon 7
HDS LIVE 7
Hook Reveal 7 Series
Hook Reveal 9 Series
Fishfinders and GPS Chartplotters
Humminbird
Fishfinders and GPS Chartplotters
Raymarine
Fishfinders and GPS Chartplotters
Kit Components


The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size
Holds .5 lbs.
Trail Cameras

B Size
Holds 2 lbs.
Phones, Action Cameras, Light Duty Tablets

C Size
Holds 4 lbs.
Fishfinders, Heavy Duty Tablets

D Size
Holds 6 lbs.
Heavy Monitors

E Size
Holds 15 lbs.
Heavy Monitors
The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.
Size | A Size | B Size | C Size | D Size | E Size |
---|---|---|---|---|---|
Short Arm | Overall Length N/A |
Overall Length 2.42" |
Overall Length 3.56" |
Overall Length 5.69" |
Overall Length 5.69" |
Socket-to-Socket Length N/A |
Socket-to-Socket Length 1.75" |
Socket-to-Socket Length 2.5" |
Socket-to-Socket Length 4.66" |
Socket-to-Socket Length 4.66" |
|
Medium Arm | Overall Length 2.42" |
Overall Length 3.73" |
Overall Length 5.69" |
Overall Length 8.44" |
Overall Length 12.63" |
Socket-to-Socket Length 1.75" |
Socket-to-Socket Length 3" |
Socket-to-Socket Length 4.66" |
Socket-to-Socket Length 6.88" |
Socket-to-Socket Length 9.88" |
|
Long Arm | Overall Length 6" |
Overall Length 6" |
Overall Length 9.13" |
Overall Length 12.98" |
Overall Length N/A |
Socket-to-Socket Length 5.31" |
Socket-to-Socket Length 5.31" |
Socket-to-Socket Length 8" |
Socket-to-Socket Length 11.41" |
Socket-to-Socket Length N/A |
Compatible Devices
Garmin
ECHOMAP Plus 72cv
ECHOMAP Plus 73cv
ECHOMAP Plus 74cv
ECHOMAP Plus 75cv
ECHOMAP Plus 77cv
ECHOMAP UHD2 5"
ECHOMAP UHD2 7"
GPSMAP 722
GPSMAP 722xs
GPSMAP 723
GPSMAP 723xsv
GPSMAP 742
GPSMAP 742xs
GPSMAP 743
GPSMAP 743xsv
Striker Plus 5cv
Striker Vivid 5cv
Striker Plus 7cv
Striker Plus 7sv
Striker Vivid 5cv
Striker Vivid 7cv
Striker Vivid 7sv
Fishfinders and GPS Chartplotters
Lowrance
Eagle 7
Eagle 9
Elite FS 7
HDS Carbon 7
HDS LIVE 7
Hook Reveal 7 Series
Hook Reveal 9 Series
Fishfinders and GPS Chartplotters
Humminbird
Fishfinders and GPS Chartplotters
Raymarine
Fishfinders and GPS Chartplotters
Kit Components

Get a notification as soon as this product is available by signing up below!
Thank you for your interest in RAM-111U-D!
We'll email you once the item is available.
Overview
The RAM-111U-D consists of a 2.5" diameter round base that contains the universal AMPS hole pattern, 9 inch double socket arm and 6.25" x 2" rectangle base. The rectangle base contains different combinations of pre-drilled holes which will match up to many electronic devices and mounts, including Marine GPS, CB Radios, Ham Radios, Gimbal Brackets and more.
Features
- Complete flat surface, drill-down mounting solution with an overall height of 10.68"
- Includes C size long socket arm, 2.5" diameter flat surface drill-down base, and a 6.25" x 2" marine electronic adapter for fishfinders depthfinders and more; RAM® Mounts ball and socket technology allows for near-infinite adjustability

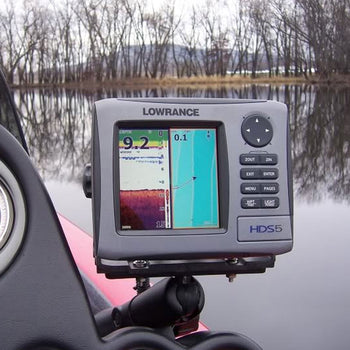

- Compatible with select Garmin, Lowrance, Raymarine and Humminbird Fishfinders and GPS chartplotters
- Made of Powder-coated, marine-grade aluminum for durability and reliability in the most demanding marine environments
- Backed by a lifetime warranty
product dimensions:
Overall Height: 10.85"
socket to socket length:
8"
hole pattern:
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
See Drawing
plate size:
Rectangular Plate: 6.25" x 2"
Round Plate: 2.5" Diameter
ball size:
C Size (1.5")
weight capacity:
Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs
materials:
Marine-grade aluminum
packaging type:
Poly Bag
Weight:
2.3 lb
Additional Information:
The included plate is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.
Questions & Answers
Have a Question?
-
Does this SKU include the hardware needed to bolt it to a flat surface?
No, the hardware required to install this mount is not included. Because these are mounted to such a wide variety of materials and applications we do not know what hardware to provide. The best resource for that type of information is usually a local hardware store or the manufacturer of the vehicle you are mounting to.
-
What screws are used to attach the RAM Mount to the gimbal bracket?
Typically the gimbal bracket included with your fishfinder will also come with mounting screws that should connect to the RAM® mounting plate. As these mounts are universal and are for many different applications, the necessary hardware needed for each application will vary. For marine applications, RAM® recommends stainless steel hardware to prevent corrosion.
-
What size screws are needed for the holes on this ball plate?
The most common screw sizes are #8, #10, M4 and M5 screws. However, if you are pairing this with any RAM® Holder, the holder will come with the necessary hardware to connect to your mount.
