RAM® Universal Marine Electronic Mount - B Size Long
Part #: RAM-B-111U-C UPC: 793442943270 Features Complete flat surface, drill-down mounting solution with an overall height of 7.5" RAM® Mounts ball and socket technology allows for near-infinite adjustability Made of Powder-coated, marine-grade aluminum for durability and reliability in the most demanding marine environments Backed by a lifetime warranty

Product Information

Overview

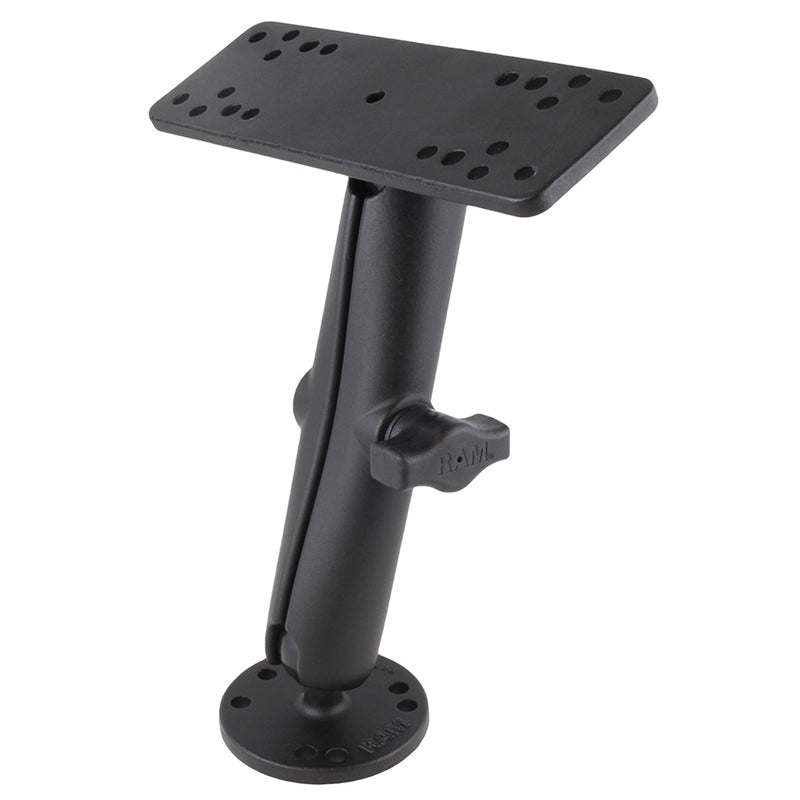

The RAM-B-111U-C consists of a long double socket arm, 2.5" diameter round base, and 6.25" x 2" rectangle base. The round base includes a 1" B size rubber ball and contains pre-drilled holes, including the universal AMPS hole pattern. The rectangle base also includes a 1" B size rubber ball and contains a variety of pre-drilled holes that are compatible with several marine electronic devices, including fish finders and chartplotters.

Specifications
product dimensions	Overall Height: 7.3125"
socket to socket length	5.31"
hole pattern	4-Hole AMPS: 1.181" x 1.496" 3-Hole 120-Degree: 1.812" Diameter See Drawing
plate size	Top Plate: 6.25" x 2.5" Bottom Plate: 2.5" Diameter
ball size	B Size (1")
weight capacity	Standard Use: 2 lbs Heavy-Duty Use: 1 lb
materials	Marine-grade aluminum
packaging type	Poly Bag
Weight	0.97 lb
Additional Information	This plate is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.

RAM® Universal Marine Electronic Mount - B Size Long

RAM® Universal Marine Electronic Mount - B Size Long

Name: RAM® Universal Marine Electronic Mount - B Size Long
Brand: RAM Mounts
SKU: RAM-B-111U-C
Price: 56.49 USD
Availability: InStock

Part#: RAM-B-111U-C

UPC: 793442943270

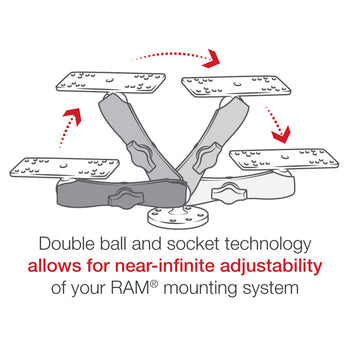

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fish Finders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 3.56"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 3.12"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A
