RAM® Drill-Down Marine Electronic Mount
Overview

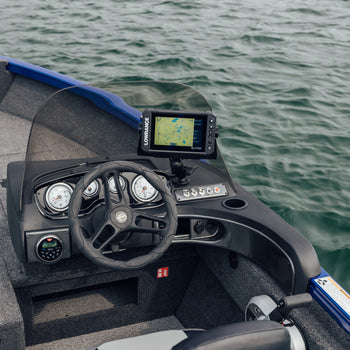

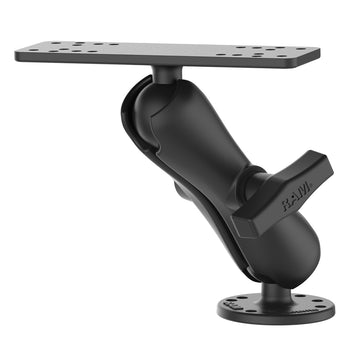

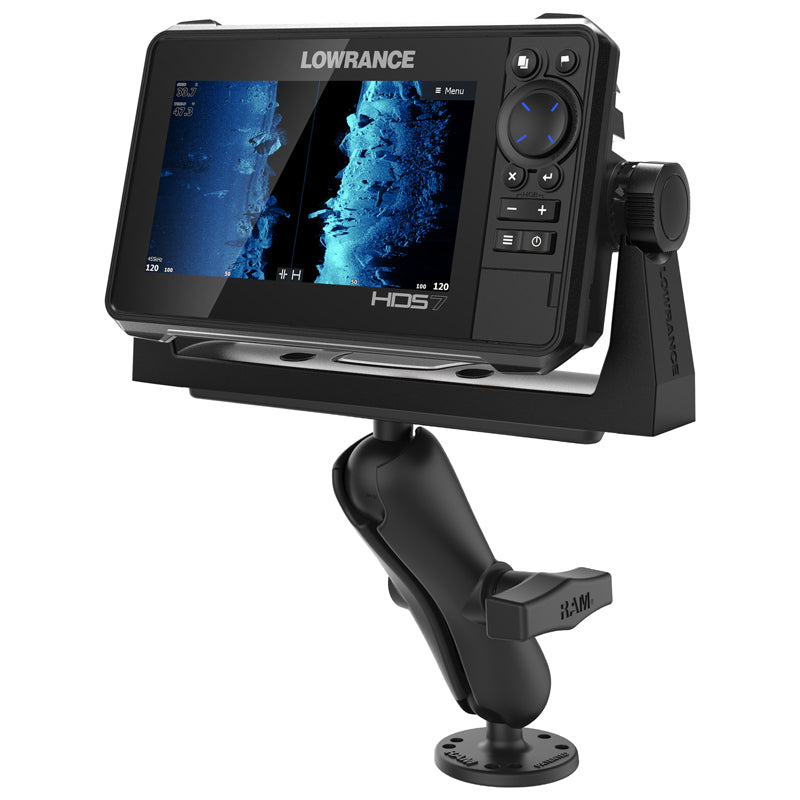

The RAM® Drill-Down Marine Electronic Mount (RAM-111U) is a rugged, fully adjustable mounting solution designed for reliable performance on the water. Constructed from powder-coated, marine-grade aluminum, this system includes a C size double socket arm, a 2.5" diameter round base, and a 6.25" x 2" rectangular adapter plate for secure device mounting. The rectangular adapter features multiple pre-drilled hole patterns, making it compatible with a wide range of marine electronics and mounting configurations, including fish finders, marine GPS units, CB and ham radios, gimbal brackets, and more.
Features
- Complete flat surface, drill-down mounting solution with an overall height of 7.35"

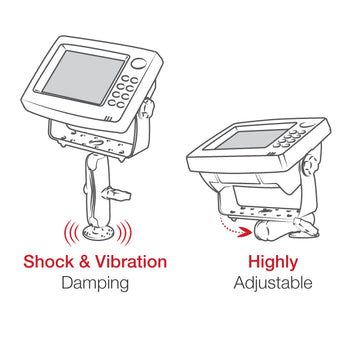

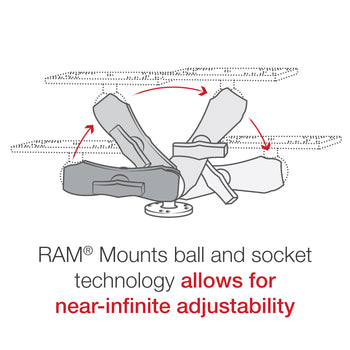

- RAM® Mounts ball and socket technology allows for near-infinite adjustability
- Made of Powder-coated, marine-grade aluminum for durability and reliability in the most demanding marine environments
- Backed by a lifetime warranty

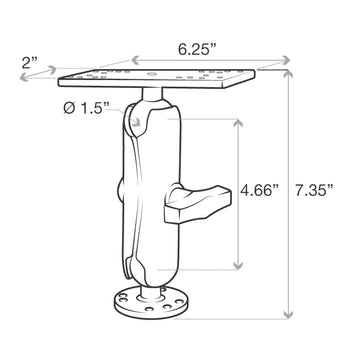

product dimensions:
Overall Height: 7.35"
socket to socket length:
4.66"
hole pattern:
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

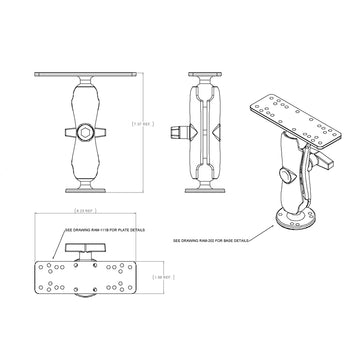

See Drawing
plate size:
Rectangular Plate: 6.25" x 2"
Round Plate: 2.5" Diameter
ball size:
C Size (1.5")
weight capacity:
Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs
materials:
Marine-grade aluminum
packaging type:
Poly Bag
Weight:
1.34 lb
Return Policy:
All products purchased from RAM® can be returned within 30 days with no restocking fee (return shipping not provided). See full return policy here.
QUESTIONS & ANSWERS
Have a Question?
-
Does this SKU include the hardware needed to bolt it to a flat surface?
No, the hardware required to install this mount is not included. Because these are mounted to such a wide variety of materials and applications we do not know what hardware to provide. The best resource for that type of information is usually a local hardware store or the manufacturer of the vehicle you are mounting to.
-
What screws are used to attach the RAM Mount to the gimbal bracket?
Typically, the gimbal bracket included with your fishfinder will also come with mounting screws that should connect to the RAM® mounting plate. As these mounts are universal and are for many different applications, the necessary hardware needed for each application will vary. For marine applications, RAM® recommends stainless steel hardware to prevent corrosion.
-
What size screws are needed for the holes on this ball plate?
The most common screw sizes are #8, #10, M4 and M5 screws. However, if you are pairing this with any RAM® Holder, the holder will come with the necessary hardware to connect to your mount.
-
Please advise what specific RAM -111 mount is compatible with the Garmin Echomap Ultra 102 sv with 10" screen?
For that fishfinder we would recommend RAM-D-115-C.
-
Will this work with a lowrance carbon 9?
No, RAM recommends a RAM-D-111-KNOB9HU due to the weight of a Lowrance HDS Carbon 9.
