RAM^® Universal Marine Electronic Ball - C Size
Part #: RAM-111BU UPC: 793442001550 Features Universal marine electronic plate includes a variety of pre-drilled holes that match a wide range of devices Included C size 1.5" RAM^® rubber ball allows for connection to any C size RAM^® double socket arm; ball and socket technology allows for near-infinite adjustability Made of Powder-coated, marine-grade aluminum for durability and reliability in the most demanding marine environments Backed by a lifetime warranty

RAM^® Universal Marine Electronic Ball - C Size

Part #: RAM-111BU UPC: 793442001550

Features

Universal marine electronic plate includes a variety of pre-drilled holes that match a wide range of devices
Included C size 1.5" RAM^® rubber ball allows for connection to any C size RAM^® double socket arm; ball and socket technology allows for near-infinite adjustability
Made of Powder-coated, marine-grade aluminum for durability and reliability in the most demanding marine environments
Backed by a lifetime warranty

RAM<sup>®</sup> Universal Marine Electronic Ball - C Size

Product Information

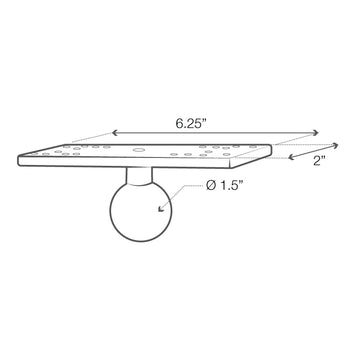

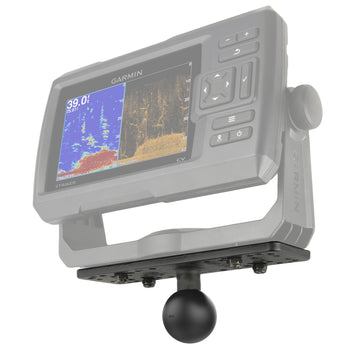

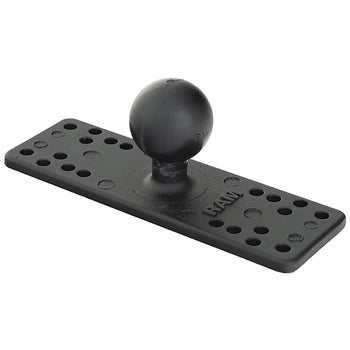

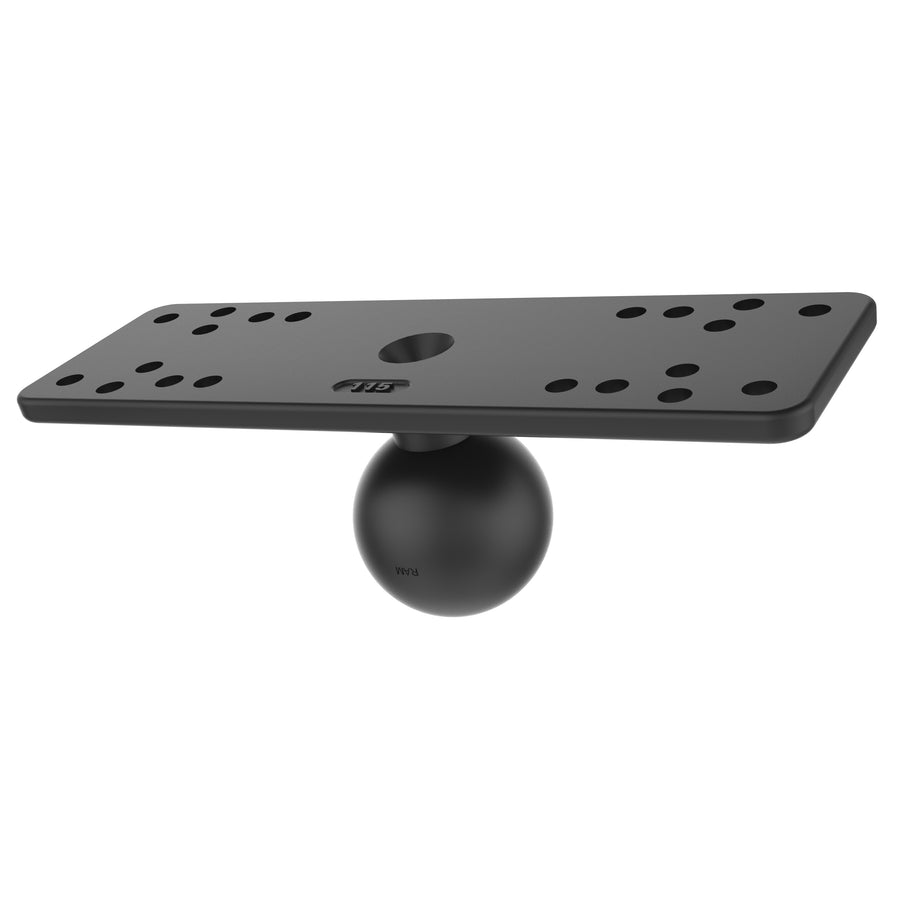

Overview	The RAM-111BU consists of a C size 1.5" rubber ball connected at right angles to a flat 6.25 x 2" rectangular plate. The plate contains different combinations of pre-drilled holes that will match many electronic devices and mounts, including marine GPS, CB radios, Ham radios, gimbal brackets, and more.

Specifications
hole pattern	See Drawing
plate size	6.25" x 2"
ball size	C Size (1.5")
weight capacity	Standard Use: 4 lbs Heavy-Duty Use: 3 lbs
materials	Marine-grade aluminum
packaging type	Poly Bag
Weight	0.41 lb
Additional Information	The included plate is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.

Questions about our products? Email us for support.

RAM^® Universal Marine Electronic Ball - C Size

Part#: RAM-111BU

UPC: 793442001550

C Size

Size Guide

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

Compatible Devices

Garmin

ECHOMAP UHD2 5"

ECHOMAP UHD2 7"

GPSMAP 722xs

GPSMAP 723

GPSMAP 723xsv

GPSMAP 742xs

GPSMAP 743

GPSMAP 743xsv

Striker Plus 5cv

Striker Vivid 5cv

Striker Plus 7cv

Striker Plus 7sv

Striker Vivid 5cv

Striker Vivid 7cv

Striker Vivid 7sv

Fishfinders and GPS Chartplotters

Lowrance

Elite FS 7

HDS Carbon 7

HDS LIVE 7

Hook Reveal 7 Series

Hook Reveal 9 Series

Fishfinders and GPS Chartplotters

Humminbird

Fishfinders and GPS Chartplotters

Raymarine

Fishfinders and GPS Chartplotters

Additonal Information:

The included plate is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.

$24.49

Options

C Size

Size Guide

Ball Size
Arm Sizes

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

Compatible Devices

Garmin

ECHOMAP UHD2 5"

ECHOMAP UHD2 7"

GPSMAP 722xs

GPSMAP 723

GPSMAP 723xsv

GPSMAP 742xs

GPSMAP 743

GPSMAP 743xsv

Striker Plus 5cv

Striker Vivid 5cv

Striker Plus 7cv

Striker Plus 7sv

Striker Vivid 5cv

Striker Vivid 7cv

Striker Vivid 7sv

Fishfinders and GPS Chartplotters

Lowrance

Elite FS 7

HDS Carbon 7

HDS LIVE 7

Hook Reveal 7 Series

Hook Reveal 9 Series

Fishfinders and GPS Chartplotters

Humminbird

Fishfinders and GPS Chartplotters

Raymarine

Fishfinders and GPS Chartplotters

Additonal Information:

Options

Overview

The RAM-111BU consists of a C size 1.5" rubber ball connected at right angles to a flat 6.25 x 2" rectangular plate. The plate contains different combinations of pre-drilled holes that will match many electronic devices and mounts, including marine GPS, CB radios, Ham radios, gimbal brackets, and more.

Features

Universal marine electronic plate includes a variety of pre-drilled holes that match a wide range of devices
Included C size 1.5" RAM^® rubber ball allows for connection to any C size RAM^® double socket arm; ball and socket technology allows for near-infinite adjustability
Made of Powder-coated, marine-grade aluminum for durability and reliability in the most demanding marine environments
Backed by a lifetime warranty

hole pattern:

See Drawing

plate size:

6.25" x 2"

ball size:

C Size (1.5")

weight capacity:

Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs

materials:

Marine-grade aluminum

packaging type:

Poly Bag

Weight:

0.41 lb

Additional Information:

Print

Documents

Drawing File - Marine Electronic Ball Plate

On Water Catalog

Questions & Answers

Have a Question?

Ask a Question

What size fits a hummingbird helix 10

For Humminbird Helix 10 you will want the following:
RAM® Drill-Down Ball Mount for Humminbird Helix 8-10 & XPLORE Series – RAM Mounts
will this fit my ECHOMAP UHD2 93SV

For the ECHOMAP UDH2 9" we would suggest RAM® Marine Electronics Ball Adapter D size
Will this fit ECHOMAP UDH2 93sv

For the ECHOMAP UDH2 9" we would suggest RAM® Marine Electronics Ball Adapter D size
Will this fit my cradle for my Garmin UHD 73cv

Yes, this base would be a great choice for the Garmin UHD 73 CV
