RAM^® No-Drill^™ Laptop Mount for '14-15 Chevrolet Silverado 1500 (Bench)
Part #: RAM-VB-191-SW1 UPC: 793442942099 Patented

Product Information

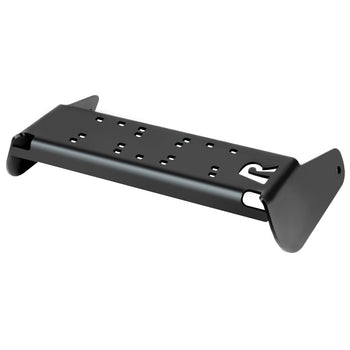

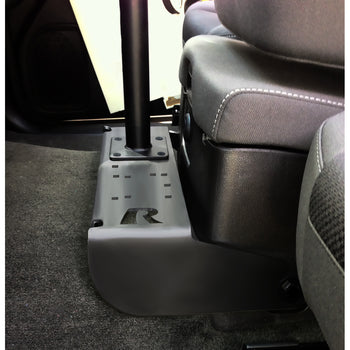

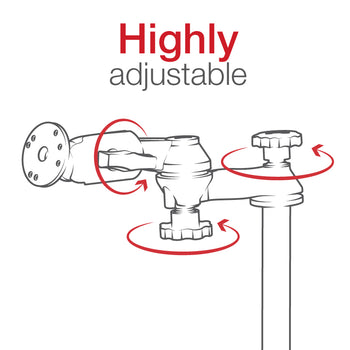

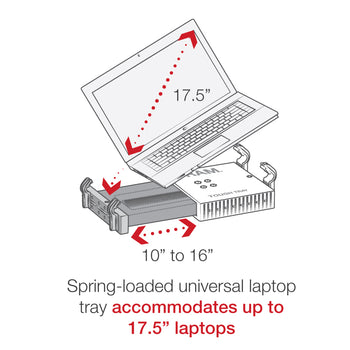

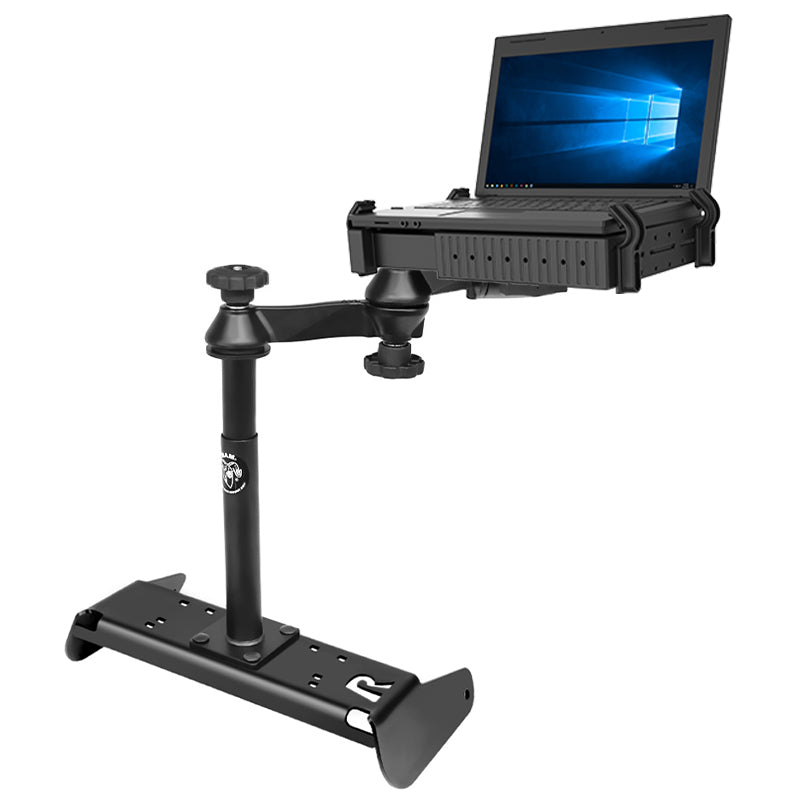

Overview	This No-Drill^™ Laptop Stand System installs quickly and easily into the specified vehicles using the existing hardware of the passenger side seat rails. This configuration provides a telescoping feature with upper and lower poles that allow you to set your mount to the desired height with the simple turn of a knob. Dual swing arms provide articulation and 12 inches of reach for passenger and driver access to the mounted device. Patented rubber ball and socket joint provides additional adjustment as well as shock and vibration isolation. The RAM Tough-Tray^™ is spring loaded to accommodate 10" to 16" wide laptops (17" wide screens). The tray features four adjustable retaining arms with rubber grip feature. These arms can be moved both vertically and horizontally. This allows for a custom fit for varying thicknesses of laptops and the freedom of not blocking ports or drives. A screen support and USB light are also available to accessorize the tray. Hole patterns on perimeter of tray facilitate the mounting of additional RAM systems to support GPS or other electronics.

Product Information

Overview

This No-Drill^™ Laptop Stand System installs quickly and easily into the specified vehicles using the existing hardware of the passenger side seat rails. This configuration provides a telescoping feature with upper and lower poles that allow you to set your mount to the desired height with the simple turn of a knob. Dual swing arms provide articulation and 12 inches of reach for passenger and driver access to the mounted device. Patented rubber ball and socket joint provides additional adjustment as well as shock and vibration isolation. The RAM Tough-Tray^™ is spring loaded to accommodate 10" to 16" wide laptops (17" wide screens). The tray features four adjustable retaining arms with rubber grip feature. These arms can be moved both vertically and horizontally. This allows for a custom fit for varying thicknesses of laptops and the freedom of not blocking ports or drives. A screen support and USB light are also available to accessorize the tray. Hole patterns on perimeter of tray facilitate the mounting of additional RAM systems to support GPS or other electronics.

Specifications
hardware included	Assembly Hardware Foot Stabilizer (2) M10-1.5 x 60mm Hex Bolts (2) 1.68" Stand-Offs (2) 3/8" Fender Washers
tray dimensions	Width Range: 10" - 16" Side Arm Clamp Height: .5" - 1.75" Tray Depth: 10" Tray Thickness: 2.125"
ball size	C Size (1.5")
materials	Powder coated steel Marine grade-aluminum High strength composite
packaging type	Box
Weight	17.14 lb
Additional Information	This base is recommended for the Chevrolet Silverado 1500 with 40/20/40 bench seat and no pass through console. For all other Chevrolet Silverado 1500 models refer to the RAM-VB-193-SW1. This product will not install properly into trucks with the 4x4 lever on the center hump of the vehicle.

RAM<sup>®</sup> No-Drill<sup>™</sup> Laptop Mount for '14-15 Chevrolet Silverado 1500 (Bench)

Questions about our products? Email us for support.

Patented

RAM^® No-Drill^™ Laptop Mount for '14-15 Chevrolet Silverado 1500 (Bench)

Part#: RAM-VB-191-SW1

UPC: 793442942099

C Size

Size Guide

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

$405.49

C Size

Size Guide

Ball Size
Arm Sizes

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

Overview

hardware included:

Assembly Hardware
Foot Stabilizer
(2) M10-1.5 x 60mm Hex Bolts
(2) 1.68" Stand-Offs
(2) 3/8" Fender Washers

tray dimensions:

Width Range: 10" - 16"
Side Arm Clamp Height: .5" - 1.75"
Tray Depth: 10"
Tray Thickness: 2.125"

ball size:

C Size (1.5")

materials:

Powder coated steel
Marine grade-aluminum
High strength composite

packaging type:

Box

Weight:

17.14 lb

Additional Information:

This base is recommended for the Chevrolet Silverado 1500 with 40/20/40 bench seat and no pass through console. For all other Chevrolet Silverado 1500 models refer to the RAM-VB-193-SW1. This product will not install properly into trucks with the 4x4 lever on the center hump of the vehicle.

Print

Instructions

Tough-Tray Assembly Guide

RAM No-Drill Seat Bases Instructions 191 Series

Upper Tele-Pole Assembly Guide

Questions & Answers

Have a Question?

Ask a Question

will it fit my GMC sierra 2018 with 40/20/40 split bench seats?

At this time we do not have a vehicle-specific No-Drill mount for your particular vehicle, but we do have a couple of universal options for you to consider. I have provided links to those options below.

The first one is the VB-196, which is our Universal No-Drill Kit. On this product page you will find a compatibility guide that will help you to determine whether it will work with your specific vehicle or not:

RAM-VB-196-SW1 - Universal No Drill

The other option is the VBD-122, which is our Universal Drill Down mount.

RAM-VBD-122-SW1 - Drill Down Mount

Please take a look and let me know if you have any other questions or require further assistance.
