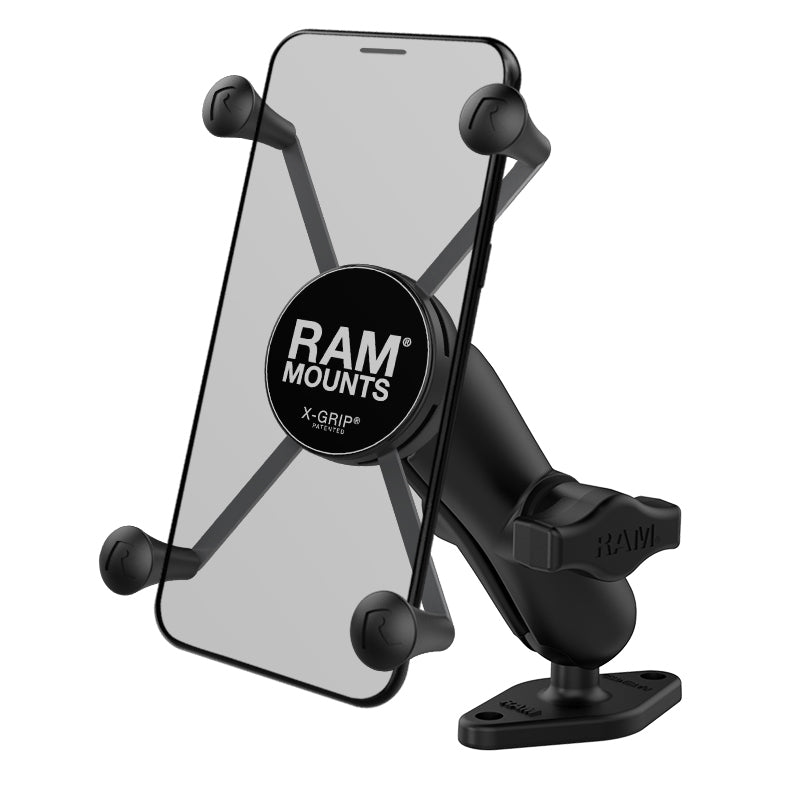

RAM® X-Grip® Large Phone Mount with Diamond Base | |
---|---|
Part #:
RAM-B-102-UN10U
UPC:
793442940668
Patented
Features
|
![]() |
Product Information | |
---|---|
Overview | The popular spring-loaded RAM® X-Grip® phone holder features an 'X' design that expands and contracts to provide a perfect fit for your device – even if it's in a case. This large version of the RAM® X-Grip® fits phones ranging from 1.75" to 4.5" in width and keeps your device completely functional and accessible. The included diamond ball base features the industry-standard AMPS hole pattern, while RAM® ball and socket technology allows for near-infinite adjustability to achieve the ideal viewing angle – and helps to extend the life of your phone by providing shock and vibration damping. For outdoor applications – like being used as a motorcycle phone mount – the RAM® X-Grip® includes a device tether that is recommended for added security and peace of mind. |
Specifications | |
---|---|
hardware included | (1) Optional Tether (1) Glue Tube for Rubber Caps (2) #8-32 x 1/2" Machine Screws (2) #8-32 x 5/8" Machine Screws (2) #8-32 x .75" Screws (2) #8-32 Nylock Nuts |
holder dimensions | Width Range: 1.75" - 4.5" Depth Range: .875" max |
socket to socket length | 3" |
hole pattern | 2-Hole AMPS: 1.912" |
plate size | 2.43" x 1.31" |
ball size | B Size (1") |
weight capacity | Standard Use: 2 lbs Heavy-Duty Use: 1 lb |
materials | Marine-grade aluminum High strength composite Stainless steel |
packaging type | Poly Bag |
Weight | 0.62 lb |
Additional Information | Exposure to vibrations, like those generated by high-powered motorcycle engines, might impact iPhone cameras. Click here to learn more. |


The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size
Holds .5 lbs.
Trail Cameras

B Size
Holds 2 lbs.
Phones, Action Cameras, Light Duty Tablets

C Size
Holds 4 lbs.
Fishfinders, Heavy Duty Tablets

D Size
Holds 6 lbs.
Heavy Monitors

E Size
Holds 15 lbs.
Heavy Monitors
The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.
Size | A Size | B Size | C Size | D Size | E Size |
---|---|---|---|---|---|
Short Arm | Overall Length N/A |
Overall Length 2.42" |
Overall Length 3.56" |
Overall Length 5.69" |
Overall Length 5.69" |
Socket-to-Socket Length N/A |
Socket-to-Socket Length 1.75" |
Socket-to-Socket Length 2.5" |
Socket-to-Socket Length 4.66" |
Socket-to-Socket Length 4.66" |
|
Medium Arm | Overall Length 2.42" |
Overall Length 3.73" |
Overall Length 5.69" |
Overall Length 8.44" |
Overall Length 12.63" |
Socket-to-Socket Length 1.75" |
Socket-to-Socket Length 3" |
Socket-to-Socket Length 4.66" |
Socket-to-Socket Length 6.88" |
Socket-to-Socket Length 9.88" |
|
Long Arm | Overall Length 6" |
Overall Length 6" |
Overall Length 9.13" |
Overall Length 12.98" |
Overall Length N/A |
Socket-to-Socket Length 5.31" |
Socket-to-Socket Length 5.31" |
Socket-to-Socket Length 8" |
Socket-to-Socket Length 11.41" |
Socket-to-Socket Length N/A |
Compatible Devices
Apple
iPhone 6s Plus
iPhone 7 Plus
iPhone 8 Plus
iPhone Xs Max
iPhone 11 Pro Max
iPhone 12 Pro Max
iPhone 13 Pro Max
iPhone 14 Plus
iPhone 14 Pro Max
iPhone 15
iPhone 15 Plus
iPhone 15 Pro Max
iPhone 16
iPhone 16 Plus
iPhone 16 Pro
iPhone 16 Pro Max
iPhone 16e
Blackberry
Evolve X
Blackview
BV9900
BV9900 Pro
Cat
S42
S62
S62 Pro
Garmin
Drive 50
Drive 51 LM
Drive 52
Drive 61 LM
DriveSmart 51 LMT-S
DriveSmart 61 LMT-S
DriveTrack 71
Nuvi 2788LM
RV 660LMT
RV 770 LMT-S
Pixel 2 XL
Pixel 3 XL
Pixel 3a XL
Pixel 7 Pro
Pixel 8 Pro
HTC
Bolt
U Ultra
Huawei
Mate 20 X
Kyocera
DuraSport 5G
LG
Fiesta 2 LTE
Fiesta LTE
G8S ThinQ
Harmony
Stylo 2 V
Stylo 3
Stylo 3 Plus Titan
Stylo 4
V20
V50 ThinQ
X charge
X venture
Magellan
TR5
TR7
Motorola
moto e4 plus
moto g4
moto z2
moto z2 play
moto z3
Rand
McNally Road Explorer 5
McNally TND 540
Razer
Phone 2
Samsung
Galaxy A7
Galaxy A7 (2017)
Galaxy A7 (2018)
Galaxy A8
Galaxy A8 (2016)
Galaxy A9 (2016)
Galaxy A9 Pro (2016)
Galaxy A9 (2018)
Galaxy A15
Galaxy A70
Galaxy A80
Galaxy A90 5G
Galaxy C7
Galaxy C7 Pro
Galaxy C9 Pro
Galaxy E7
Galaxy Grand Neo Plus
Galaxy J7
Galaxy J7 Max
Galaxy J7 V
Galaxy Note 5
Galaxy Note 10 Plus
Galaxy Note20 Ultra
Galaxy On7
Galaxy S10 5G
Galaxy S8
Galaxy S8 Active
Galaxy S21 5G
Galaxy S21+ 5G
Galaxy S21 Ultra 5G
Galaxy S22 Ultra 5G
Galaxy S23+
Galaxy S23 Ultra
Galaxy S24+
Galaxy S24 Ultra
Galaxy S25+
Galaxy S25 Ultra
Galaxy XCover7
Social
Mobile Rhino C6
Sonim
RS60
Sony
Xperia C4
Xperia L2
Xperia XA Ultra
Xperia XA1 Ultra
Xperia XA2 Ultra
Xperia XZ Premium
Kit Components


The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size
Holds .5 lbs.
Trail Cameras

B Size
Holds 2 lbs.
Phones, Action Cameras, Light Duty Tablets

C Size
Holds 4 lbs.
Fishfinders, Heavy Duty Tablets

D Size
Holds 6 lbs.
Heavy Monitors

E Size
Holds 15 lbs.
Heavy Monitors
The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.
Size | A Size | B Size | C Size | D Size | E Size |
---|---|---|---|---|---|
Short Arm | Overall Length N/A |
Overall Length 2.42" |
Overall Length 3.56" |
Overall Length 5.69" |
Overall Length 5.69" |
Socket-to-Socket Length N/A |
Socket-to-Socket Length 1.75" |
Socket-to-Socket Length 2.5" |
Socket-to-Socket Length 4.66" |
Socket-to-Socket Length 4.66" |
|
Medium Arm | Overall Length 2.42" |
Overall Length 3.73" |
Overall Length 5.69" |
Overall Length 8.44" |
Overall Length 12.63" |
Socket-to-Socket Length 1.75" |
Socket-to-Socket Length 3" |
Socket-to-Socket Length 4.66" |
Socket-to-Socket Length 6.88" |
Socket-to-Socket Length 9.88" |
|
Long Arm | Overall Length 6" |
Overall Length 6" |
Overall Length 9.13" |
Overall Length 12.98" |
Overall Length N/A |
Socket-to-Socket Length 5.31" |
Socket-to-Socket Length 5.31" |
Socket-to-Socket Length 8" |
Socket-to-Socket Length 11.41" |
Socket-to-Socket Length N/A |
Compatible Devices
Apple
iPhone 6s Plus
iPhone 7 Plus
iPhone 8 Plus
iPhone Xs Max
iPhone 11 Pro Max
iPhone 12 Pro Max
iPhone 13 Pro Max
iPhone 14 Plus
iPhone 14 Pro Max
iPhone 15
iPhone 15 Plus
iPhone 15 Pro Max
iPhone 16
iPhone 16 Plus
iPhone 16 Pro
iPhone 16 Pro Max
iPhone 16e
Blackberry
Evolve X
Blackview
BV9900
BV9900 Pro
Cat
S42
S62
S62 Pro
Garmin
Drive 50
Drive 51 LM
Drive 52
Drive 61 LM
DriveSmart 51 LMT-S
DriveSmart 61 LMT-S
DriveTrack 71
Nuvi 2788LM
RV 660LMT
RV 770 LMT-S
Pixel 2 XL
Pixel 3 XL
Pixel 3a XL
Pixel 7 Pro
Pixel 8 Pro
HTC
Bolt
U Ultra
Huawei
Mate 20 X
Kyocera
DuraSport 5G
LG
Fiesta 2 LTE
Fiesta LTE
G8S ThinQ
Harmony
Stylo 2 V
Stylo 3
Stylo 3 Plus Titan
Stylo 4
V20
V50 ThinQ
X charge
X venture
Magellan
TR5
TR7
Motorola
moto e4 plus
moto g4
moto z2
moto z2 play
moto z3
Rand
McNally Road Explorer 5
McNally TND 540
Razer
Phone 2
Samsung
Galaxy A7
Galaxy A7 (2017)
Galaxy A7 (2018)
Galaxy A8
Galaxy A8 (2016)
Galaxy A9 (2016)
Galaxy A9 Pro (2016)
Galaxy A9 (2018)
Galaxy A15
Galaxy A70
Galaxy A80
Galaxy A90 5G
Galaxy C7
Galaxy C7 Pro
Galaxy C9 Pro
Galaxy E7
Galaxy Grand Neo Plus
Galaxy J7
Galaxy J7 Max
Galaxy J7 V
Galaxy Note 5
Galaxy Note 10 Plus
Galaxy Note20 Ultra
Galaxy On7
Galaxy S10 5G
Galaxy S8
Galaxy S8 Active
Galaxy S21 5G
Galaxy S21+ 5G
Galaxy S21 Ultra 5G
Galaxy S22 Ultra 5G
Galaxy S23+
Galaxy S23 Ultra
Galaxy S24+
Galaxy S24 Ultra
Galaxy S25+
Galaxy S25 Ultra
Galaxy XCover7
Social
Mobile Rhino C6
Sonim
RS60
Sony
Xperia C4
Xperia L2
Xperia XA Ultra
Xperia XA1 Ultra
Xperia XA2 Ultra
Xperia XZ Premium
Kit Components

Get a notification as soon as this product is available by signing up below!
Thank you for your interest in RAM-B-102-UN10U!
We'll email you once the item is available.
Overview
The popular spring-loaded RAM® X-Grip® phone holder features an 'X' design that expands and contracts to provide a perfect fit for your device – even if it's in a case. This large version of the RAM® X-Grip® fits phones ranging from 1.75" to 4.5" in width and keeps your device completely functional and accessible. The included diamond ball base features the industry-standard AMPS hole pattern, while RAM® ball and socket technology allows for near-infinite adjustability to achieve the ideal viewing angle – and helps to extend the life of your phone by providing shock and vibration damping. For outdoor applications – like being used as a motorcycle phone mount – the RAM® X-Grip® includes a device tether that is recommended for added security and peace of mind.
Features
- Spring-loaded 'X' design for large phones with rubber caps sports great holding power without hiding your phone; includes optional device tether for peace of mind during rugged use
- Diamond ball base featuring universal AMPS hole pattern included; ball and socket technology allows for near-infinite adjustability
- Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments
- Backed by a lifetime warranty
hardware included:
(1) Optional Tether
(1) Glue Tube for Rubber Caps
(2) #8-32 x 1/2" Machine Screws
(2) #8-32 x 5/8" Machine Screws
(2) #8-32 x .75" Screws
(2) #8-32 Nylock Nuts
holder dimensions:
Width Range: 1.75" - 4.5"
Depth Range: .875" max
socket to socket length:
3"
hole pattern:
2-Hole AMPS: 1.912"
plate size:
2.43" x 1.31"
ball size:
B Size (1")
weight capacity:
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials:
Marine-grade aluminum
High strength composite
Stainless steel
packaging type:
Poly Bag
Weight:
0.62 lb
Additional Information:
Exposure to vibrations, like those generated by high-powered motorcycle engines, might impact iPhone cameras. Click here to learn more.
Instructions
Documents
Questions & Answers
Have a Question?
-
Does this kit come with mounting hardware?
Yes, it comes with all the hardware listed under "product information" on this page.
-
I noticed my phone can rotate back and forth when it is in the X-Grip. Is that normal?
That type of movement is totally normal for the X-Grip. When being used for less rugged applications the small amount of movement allowed is not an issue, but sometimes when traveling at higher speeds or in bumpy environments it can be. If that is causing problems in your application, it is best to use the safety tether which will prevent that type of movement by creating tension between the phone and backplate.
-
Will this mount to the Tough Tray laptop mount?
Yes, the diamond ball base that is part of RAM-B-102-UN10U, the RAM-B-238U, will allow you to use the Tough Tray as an attachment point for a phone mount.
