Patented & Pats. Pend.

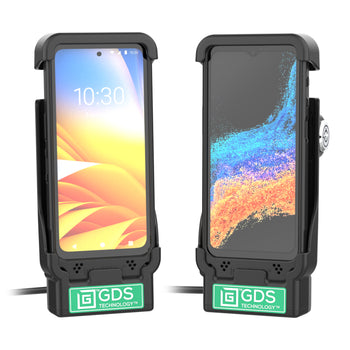

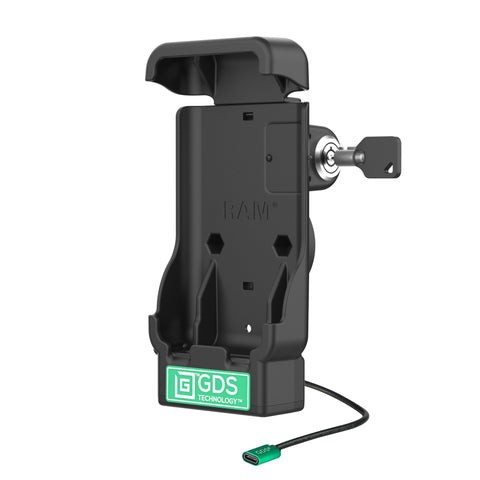

GDS® Powered Locking Vehicle Dock for Handhelds with IntelliSkin®

Always Protected. Always Connected.®
Part#: RAM-GDS-DOCKL-V15-BU
UPC: 793442028908
$182.99

Overview

The GDS® Powered Locking Vehicle Dock for Handhelds with IntelliSkin® (RAM-GDS-DOCKL-V15-BU) is a rugged dock that will meet and exceed the demands of modern workflows, featuring integrated pogo pins that perfectly align with IntelliSkin®. The spring-loaded design of this dock allows for a quick one-handed insertion or removal of your device. The back cavity of the dock accommodates ergonomic accessories secured to the back of the device. An integrated cutout on the top allows for the ability to access buttons, ports, or scanners without removing the device from the dock. The key lock provides peace of mind and theft deterrence in high-traffic environments. Complete the solution by building your mount—this holder is RAM® Compatible™ featuring a 2-hole AMPS pattern for adding a diamond ball adapter.

Features

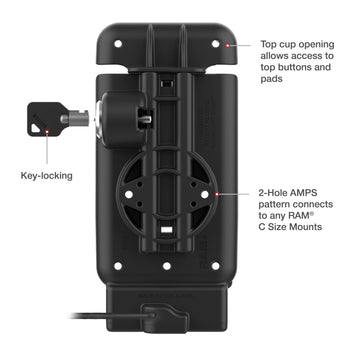

  • Key-locking, spring-loaded powered dock designed for select handhelds wrapped in IntelliSkin®

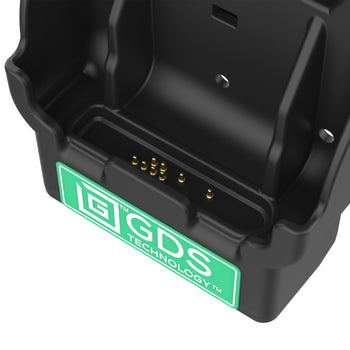

  • Power delivered through integrated pogo pin technology via USB-C connector
  • Compatible with RAM® diamond bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
  • Made of high-strength composites for durability and reliability in the most demanding environments
  • Backed by a 3-year warranty

hardware included:

(2) Keys
(2) #8-32 x 5/8" Machine Screws
(2) #8-32 x 3/4" Machine Screws
(2) #8-32 Nylock Nuts
(1) Cable Clamp Kit

hole pattern:

2-Hole AMPS: 1.912"

materials:

High strength composite

packaging type:

Poly Bag

output voltage:

5V - 12V @ 3A

power output:

15W

input connector:

USB Type-C

input cable length:

380mm

Warranty:

3 year warranty

Weight:

0.86 lb

Additional Information:

*For Samsung XCover6 Pro, XCover7 Pro & Zebra EM45, this dock will only support the version of IntellISkin® that does not have the external USB-C port. For compatibililty of these devices with IntelliSkin® that include the USB-C port, please see RAM-GDS-DOCKL-V15-AU
.

Return Policy:

All products purchased from RAM® can be returned within 30 days with no restocking fee (return shipping not provided). See full return policy here.

Print

Documents

GDS® Docks for Zebra Handheld PCs with IntelliSkin®
GDS® Tech™ Catalog
Samsung Catalog
GDS® Powered Locking Vehicle Dock for Handhelds with IntelliSkin®
$182.99

Add-on & Accessories

C Size Diamond Plate Mounts
See All
RAM® Dashboard Mount with Backing Plate & Diamond Plate - C Size Medium RAM-138-225B2U $70.99
RAM® Double Ball Mount with Diamond Plate Adapter - Medium RAM-138U $60.49
RAM® Double Ball Mount with Diamond Plate Adapter - Short RAM-138U-B $58.49
RAM® Tough-Mag™ Heavy Duty Magnetic Mount with Diamond Plate - Medium RAM-138-MAG88U $127.99
RAM® Dashboard Mount with Backing Plate & Diamond Plate - C Size Short RAM-138-B-225B2U $68.99
RAM® Pod HD™ 24" Vehicle Mount with Diamond Plate RAM-316-HD-238U $236.49

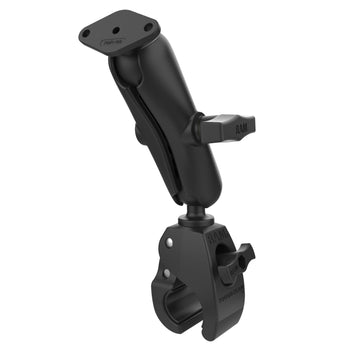

RAM® Tough-Claw™ Medium Clamp Mount with Diamond Plate Adapter - Medium RAP-404-238U $94.99
RAM® Double Ball Mount with Diamond Plate Adapter - Long RAM-138U-D $85.49
RAM® Universal Post Clamp Mount with Diamond Plate - C Size Medium Arm RAM-102U-247 $102.49
RAM® Double Diamond Plate Mount - C Size Long RAM-102U-D $82.99

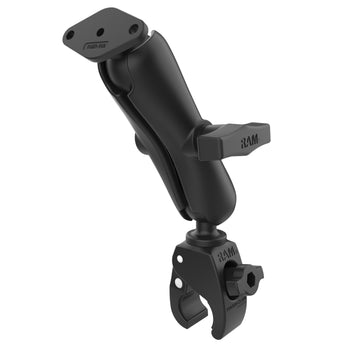

RAM® Tough-Claw™ Small Clamp Mount with Diamond Plate Adapter - Medium RAP-400-238U $91.99

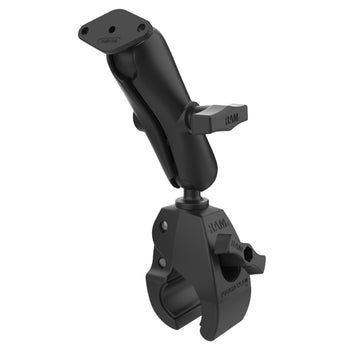

RAM® Tough-Claw™ Large Clamp Mount with Diamond Plate Adapter - Medium RAP-401-238U $94.99
RAM® Double U-Bolt Rail Mount for Larger Rails with Diamond Plate RAM-138U-235-1 $72.49
RAM® Double Diamond Plate Mount - C Size Medium RAM-102U $57.99
RAM® Twist-Lock™ Triple Suction Cup Mount with Diamond Plate RAP-365-138U $107.49
RAM® Universal Post Clamp Mount with Diamond Plate - C Size Short Arm RAM-102U-B-247 $100.49
RAM® Double U-Bolt Rail Mount for Smaller Rails with Diamond Plate RAM-138U-235 $74.49

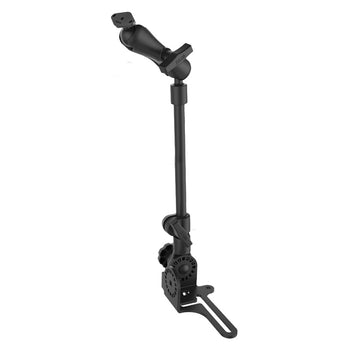

RAM® Pod HD™ 30" Vehicle Mount with Diamond Plate RAM-316-HD-18-238U $245.49
