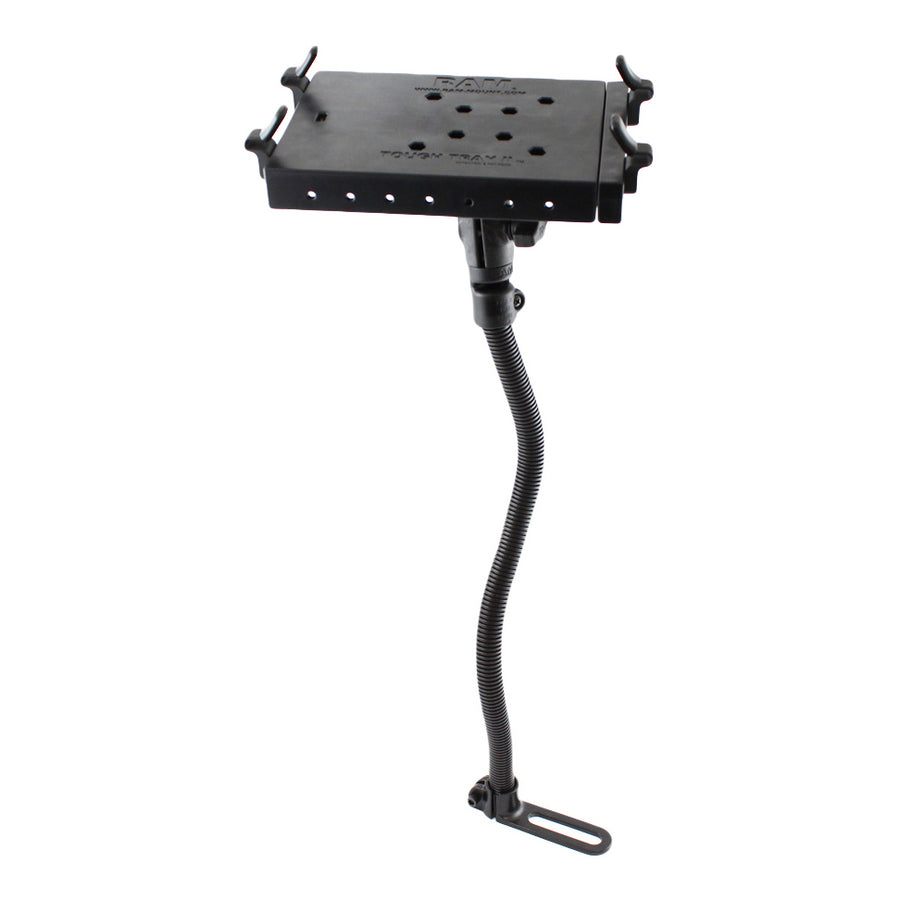

RAM® Tough-Tray™ II Holder with RAM® Pod™ I Vehicle Mount - B Size
Part #: RAM-B-316-1-234-6U UPC: 793442922497 Patented

Product Information
Overview	This kit includes the RAM-234-6 with the RAM POD I with a 1" diameter ball and socket. This universal vehicle mounting base quickly and easily installs into a variety of vehicles and other applications. The RAM POD I has a maximum extension of 18" but can be cut to desired length. The black steel foot can be attached to the inside seat rail bolt of the passenger or any existing bolt.

Specifications
hardware included	Assembly Hardware
tray dimensions	Width Range: 8.56" - 11.2" Side Arm Clamp Height: 2.75" max Tray Depth: 6" Tray Thickness: 1"
ball size	B Size (1")
weight capacity	Standard Use: 2 lbs Heavy-Duty Use: 1 lb
materials	Marine-grade aluminum High strength composite
packaging type	Poly Bag
Weight	4.2 lb

Patented

RAM® Tough-Tray™ II Holder with RAM® Pod™ I Vehicle Mount - B Size

Name: RAM® Tough-Tray™ II Holder with RAM® Pod™ I Vehicle Mount - B Size
Brand: RAM Mounts
SKU: RAM-B-316-1-234-6U
Price: 113.99 USD
Availability: InStock

Part#: RAM-B-316-1-234-6U

UPC: 793442922497

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fish Finders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 3.56"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 3.12"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

$113.99

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fish Finders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 3.56"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 3.12"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

Overview

This kit includes the RAM-234-6 with the RAM POD I with a 1" diameter ball and socket. This universal vehicle mounting base quickly and easily installs into a variety of vehicles and other applications. The RAM POD I has a maximum extension of 18" but can be cut to desired length. The black steel foot can be attached to the inside seat rail bolt of the passenger or any existing bolt.

hardware included:

Assembly Hardware

tray dimensions:

Width Range: 8.56" - 11.2"
Side Arm Clamp Height: 2.75" max
Tray Depth: 6"
Tray Thickness: 1"

ball size:

B Size (1")

weight capacity:

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials:

Marine-grade aluminum
High strength composite

packaging type:

Poly Bag

Weight:

4.2 lb

Return Policy:

All products purchased from RAM® can be returned within 30 days with no restocking fee (return shipping not provided). See full return policy here.

Print

Instructions

RAM Pod I Universal No-Drill Instructions

RAM Tough-Tray II Assembly Guide

Documents

Drawing File: RAM® Tough-Tray™ II

QUESTIONS & ANSWERS

Have a Question?

Ask a Question

Is this a universal fit for any vehicle?

The RAM-B-316-1-234-6U is compatible with any vehicle that has an exposed seat rail bolt that you can remove then pass back through the black steel foot of that kit. The installation instructions have a diagram showing that mount being assembled and installed.
