RAM® Pod™ I Vehicle Mount with 18" Rod and Socket Arm

rammount.com
1-800-497-7479
sales@rammount.com

RAM® Pod™ I Vehicle Mount with 18" Rod and Socket Arm
Part #: RAM-B-316-1U UPC: 793442103162 Patented Features Universal vehicle mount attaches to seat rail without any drilling necessary; 18" aluminum rod can be bent to your ideal position Single socket arm compatible with RAM® B size ball bases Made of powder-coated, marine-grade aluminum and high-strength composite for durability and reliability in the most demanding environments Backed by a lifetime warranty

Part #: RAM-B-316-1U UPC: 793442103162 Patented

Features

Universal vehicle mount attaches to seat rail without any drilling necessary; 18" aluminum rod can be bent to your ideal position
Single socket arm compatible with RAM® B size ball bases
Made of powder-coated, marine-grade aluminum and high-strength composite for durability and reliability in the most demanding environments
Backed by a lifetime warranty

Product Information

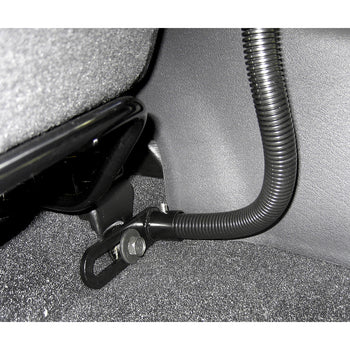

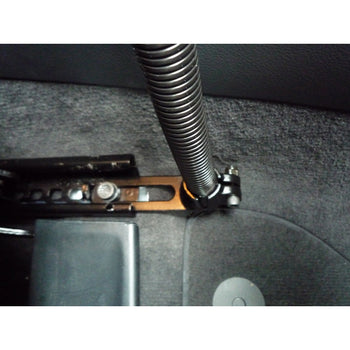

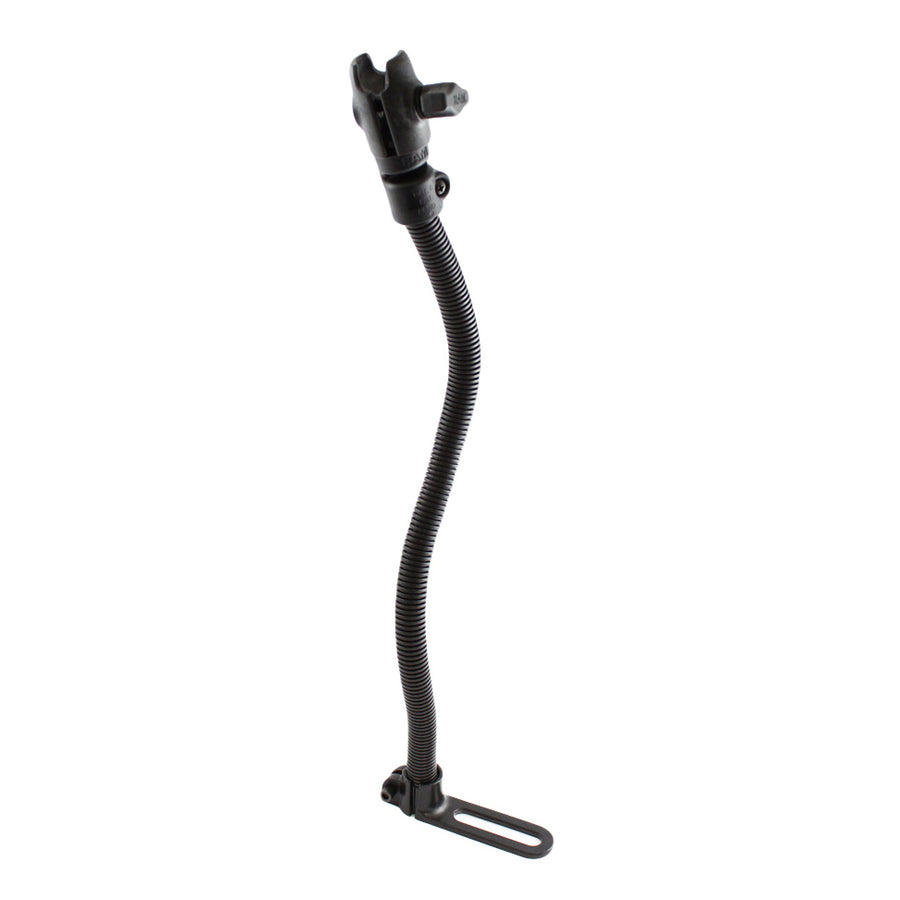

Overview	The RAM® No-Drill™ RAM-B-316-1U vehicle mount consists of the RAM® POD™ I base, 18” rigid aluminum rod, and B Size 1" ball socket arm. The base of the mount connects to your seat rail without any drilling necessary. The 18" rigid aluminum rod can be bent to position your device an ideal viewing and operating angle. For proper fit, make sure your vehicle has an appropriate bolt to mount the base securely. The RAM-B-316-1U is not compatible with 2014 and newer Chevrolet seats that have the seat hook system.

Product Information

Overview

The RAM® No-Drill™ RAM-B-316-1U vehicle mount consists of the RAM® POD™ I base, 18” rigid aluminum rod, and B Size 1" ball socket arm. The base of the mount connects to your seat rail without any drilling necessary. The 18" rigid aluminum rod can be bent to position your device an ideal viewing and operating angle. For proper fit, make sure your vehicle has an appropriate bolt to mount the base securely. The RAM-B-316-1U is not compatible with 2014 and newer Chevrolet seats that have the seat hook system.

Specifications
hardware included	Assembly Hardware
ball size	B Size (1")
weight capacity	Standard Use: 2 lbs Heavy-Duty Use: 1 lb
materials	Marine-grade aluminum High strength composite
packaging type	Poly Bag
Weight	1.15 lb

RAM® Pod™ I Vehicle Mount with 18" Rod and Socket Arm

Questions about our products? Email us for support.

Patented

RAM® Pod™ I Vehicle Mount with 18" Rod and Socket Arm

Part#: RAM-B-316-1U

UPC: 793442103162

B Size

Size Guide

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

$42.49

Options

B Size

Size Guide

Ball Size
Arm Sizes

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

Options

Overview

Features

Universal vehicle mount attaches to seat rail without any drilling necessary; 18" aluminum rod can be bent to your ideal position
Single socket arm compatible with RAM® B size ball bases
Made of powder-coated, marine-grade aluminum and high-strength composite for durability and reliability in the most demanding environments
Backed by a lifetime warranty

hardware included:

Assembly Hardware

ball size:

B Size (1")

weight capacity:

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials:

Marine-grade aluminum
High strength composite

packaging type:

Poly Bag

Weight:

1.15 lb

Print

Instructions

RAM Pod I Universal No-Drill Instructions
