RAM® Double Ball Mount for Lowrance Elite-4 & Mark-4 | |
---|---|
Part #:
RAM-B-101-C-LO11
UPC:
793442938269
|
![]() |
Product Information | |
---|---|

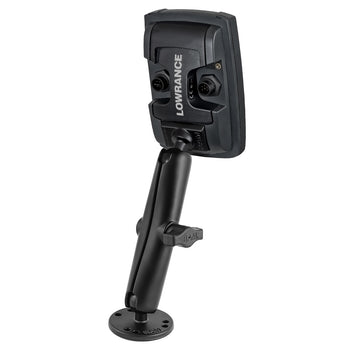

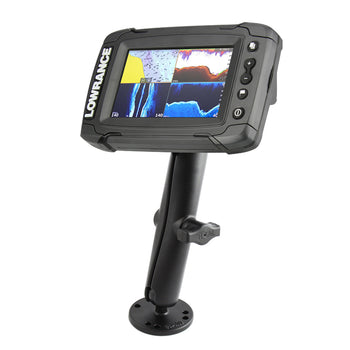

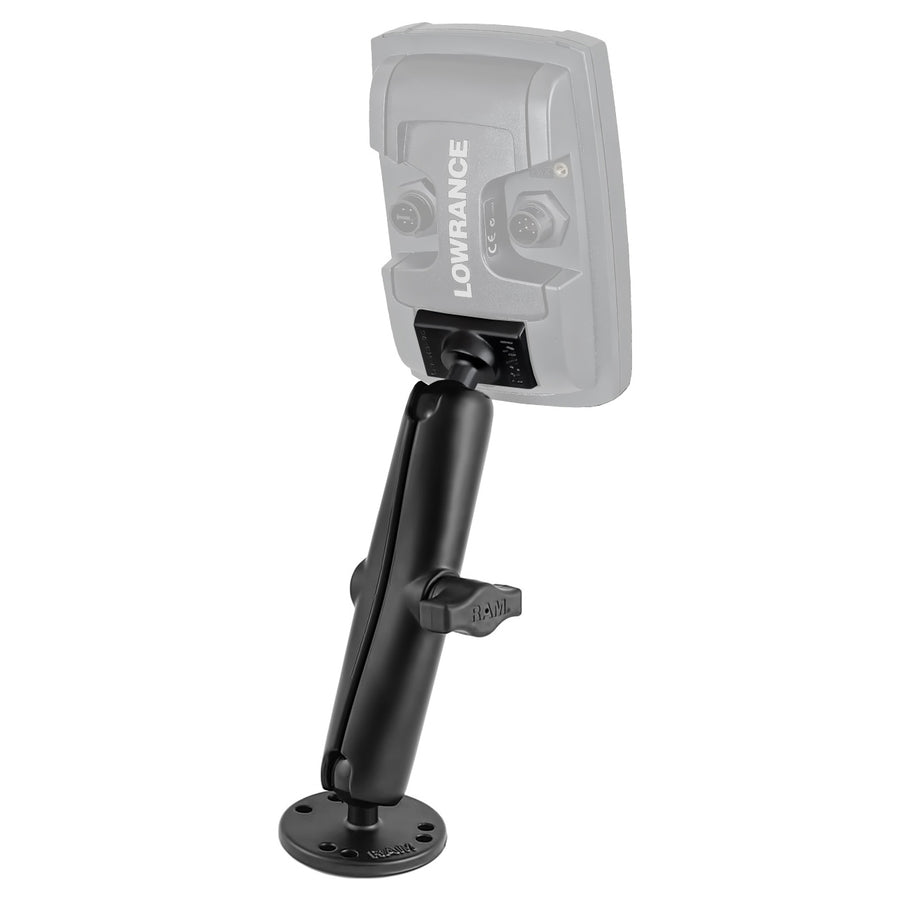

Overview | The RAM-B-101-C-LO11 consists of a 2.5" diameter round base with the universal AMPS hole pattern, long double socket arm and adapter base that inserts directly to the back of Lowrance Elite-4, Mark-4 and Hook-4 Fishfinders. The adapter serves as a quick release mechanism, allowing you to remove or transfer your Fishfinder in seconds. Designed into the mount is a 1" diameter patented rubber ball and socket system with adjustment points at both socket ends of the arm; this with RAM's rubber ball and socket technology allows for almost infinite adjustment and perfect viewing angles. |
Specifications | |
---|---|
product dimensions | Overall Height: 7.3125" |
socket to socket length | 5.31" |
hole pattern | 4-Hole AMPS: 1.181" x 1.496" 3-Hole 120-Degree: 1.812" Diameter |
plate size | 2.5" Diameter |
ball size | B Size (1") |
weight capacity | Standard Use: 2 lbs Heavy-Duty Use: 1 lb |
materials | Marine-grade aluminum |
packaging type | Retail Bag |
Weight | 0.82 lb |
Additional Information | This product is not compatible with the standard Lowrance Elite-7. |


The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size
Holds .5 lbs.
Trail Cameras

B Size
Holds 2 lbs.
Phones, Action Cameras, Light Duty Tablets

C Size
Holds 4 lbs.
Fishfinders, Heavy Duty Tablets

D Size
Holds 6 lbs.
Heavy Monitors

E Size
Holds 15 lbs.
Heavy Monitors
The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.
Size | A Size | B Size | C Size | D Size | E Size |
---|---|---|---|---|---|
Short Arm | Overall Length N/A |
Overall Length 3.73" |
Overall Length 5.69" |
Overall Length 5.69" |
Overall Length 5.69" |
Socket-to-Socket Length N/A |
Socket-to-Socket Length 3" |
Socket-to-Socket Length 4.66" |
Socket-to-Socket Length 4.66" |
Socket-to-Socket Length 4.66" |
|
Medium Arm | Overall Length 2.42" |
Overall Length 3.73" |
Overall Length 5.69" |
Overall Length 8.44" |
Overall Length 12.63" |
Socket-to-Socket Length 1.75" |
Socket-to-Socket Length 3" |
Socket-to-Socket Length 4.66" |
Socket-to-Socket Length 6.88" |
Socket-to-Socket Length 9.88" |
|
Long Arm | Overall Length 6" |
Overall Length 6" |
Overall Length 9.13" |
Overall Length 12.98" |
Overall Length N/A |
Socket-to-Socket Length 5.31" |
Socket-to-Socket Length 5.31" |
Socket-to-Socket Length 8" |
Socket-to-Socket Length 11.41" |
Socket-to-Socket Length N/A |
Compatible Devices
Lowrance
Elite-4
Elite-4 DSI
Elite-4 Gold
Elite-4x
Elite-4x DSI
Elite-4m
Mark-4


The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size
Holds .5 lbs.
Trail Cameras

B Size
Holds 2 lbs.
Phones, Action Cameras, Light Duty Tablets

C Size
Holds 4 lbs.
Fishfinders, Heavy Duty Tablets

D Size
Holds 6 lbs.
Heavy Monitors

E Size
Holds 15 lbs.
Heavy Monitors
The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.
Size | A Size | B Size | C Size | D Size | E Size |
---|---|---|---|---|---|
Short Arm | Overall Length N/A |
Overall Length 3.73" |
Overall Length 5.69" |
Overall Length 5.69" |
Overall Length 5.69" |
Socket-to-Socket Length N/A |
Socket-to-Socket Length 3" |
Socket-to-Socket Length 4.66" |
Socket-to-Socket Length 4.66" |
Socket-to-Socket Length 4.66" |
|
Medium Arm | Overall Length 2.42" |
Overall Length 3.73" |
Overall Length 5.69" |
Overall Length 8.44" |
Overall Length 12.63" |
Socket-to-Socket Length 1.75" |
Socket-to-Socket Length 3" |
Socket-to-Socket Length 4.66" |
Socket-to-Socket Length 6.88" |
Socket-to-Socket Length 9.88" |
|
Long Arm | Overall Length 6" |
Overall Length 6" |
Overall Length 9.13" |
Overall Length 12.98" |
Overall Length N/A |
Socket-to-Socket Length 5.31" |
Socket-to-Socket Length 5.31" |
Socket-to-Socket Length 8" |
Socket-to-Socket Length 11.41" |
Socket-to-Socket Length N/A |
Compatible Devices
Lowrance
Elite-4
Elite-4 DSI
Elite-4 Gold
Elite-4x
Elite-4x DSI
Elite-4m
Mark-4

Get a notification as soon as this product is available by signing up below!
Thank you for your interest in RAM-B-101-C-LO11!
We'll email you once the item is available.
Overview
The RAM-B-101-C-LO11 consists of a 2.5" diameter round base with the universal AMPS hole pattern, long double socket arm and adapter base that inserts directly to the back of Lowrance Elite-4, Mark-4 and Hook-4 Fishfinders. The adapter serves as a quick release mechanism, allowing you to remove or transfer your Fishfinder in seconds. Designed into the mount is a 1" diameter patented rubber ball and socket system with adjustment points at both socket ends of the arm; this with RAM's rubber ball and socket technology allows for almost infinite adjustment and perfect viewing angles.
product dimensions:
Overall Height: 7.3125"
socket to socket length:
5.31"
hole pattern:
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
plate size:
2.5" Diameter
ball size:
B Size (1")
weight capacity:
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials:
Marine-grade aluminum
packaging type:
Retail Bag
Weight:
0.82 lb
Additional Information:
This product is not compatible with the standard Lowrance Elite-7.
