RAM® Quick Release Ball Adapter for Lowrance Elite-4 & Mark-4 Series

Part#: RAM-B-202U-LO11
UPC: 793442934612

Compatibility

Lowrance

Elite 3x Elite 3x DSI Elite-4 Elite-4 DSI Elite-4 Gold Elite-4x Elite-4x DSI Elite-4m Mark-4
$17.49

Size Guide

Ball sizes
  • A Size 0.56" ball
  • B Size — this product 1" ball
  • C Size 1.5" ball
  • D Size 2.25" ball
  • E Size 3.38" ball

Every RAM® mount is built around a rubber ball and socket system. The ball size sets how much weight the mount can carry. Match it to your device for smooth adjustment with a rock-solid hold.

RAM Mounts ball size specifications and typical uses
Size Ball Diameter Max Load* Best For
A0.56" (14.3 mm)0.5 lbAction cameras and other ultra-light devices
B — this product1" (25.4 mm)2 lbsPhones, GPS units, and small tablets — the most common size
C1.5" (38.1 mm)4 lbsLarge tablets, fish finders, and rougher rides
D2.25" (57.2 mm)6 lbsRugged tablets, laptops, and heavy equipment
E3.38" (85.9 mm)15 lbsLarge displays and demanding aviation or industrial use

*Approximate capacity for a standard ball with a mid-length arm. Shorter arms and steel-reinforced posts increase real-world capacity.

Reading part numbers

The letter after RAM tells you the ball size: RAM-B-166 uses a 1" B ball, while RAM-D-201 uses a 2.25" D ball. C size parts are the exception and carry no letter, so RAM-201U is a C size arm.

Overview

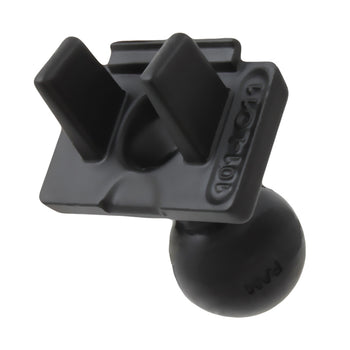

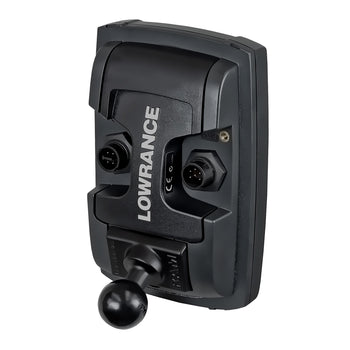

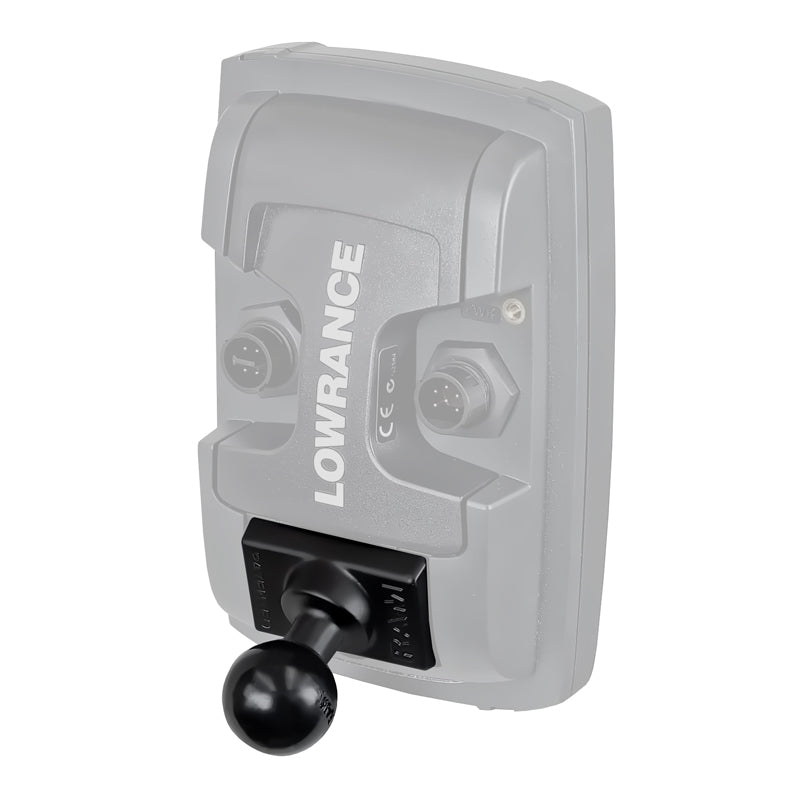

The RAM-B-202U-LO11 includes a 1" diameter rubber ball and inserts directly to the back of Lowrance Elite 4, Mark-4 and Hook-4 fish finders. The adapter serves as a quick release mechanism, allowing you to remove or transfer your fish finder in seconds.

ball size:

B Size (1")

weight capacity:

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials:

Marine-grade aluminum

packaging type:

Poly Bag

Weight:

0.11 lb

Additional Information:

This product is not compatible with the standard Lowrance Elite-7.

Return Policy:

All products purchased from RAM® can be returned within 30 days with no restocking fee (return shipping not provided). See full return policy here.

Print

Documents

On Water Catalog
Knowledge Base: Ball Sizes
