RAM® Track Ball™ Marine Electronic Mount | |
---|---|
Part #:
RAM-111B-354-TRA1U
UPC:
793442954696
Features
|
![]() |
Product Information | |
---|---|

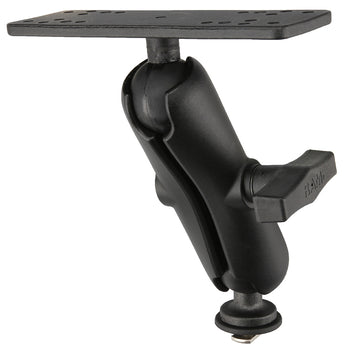

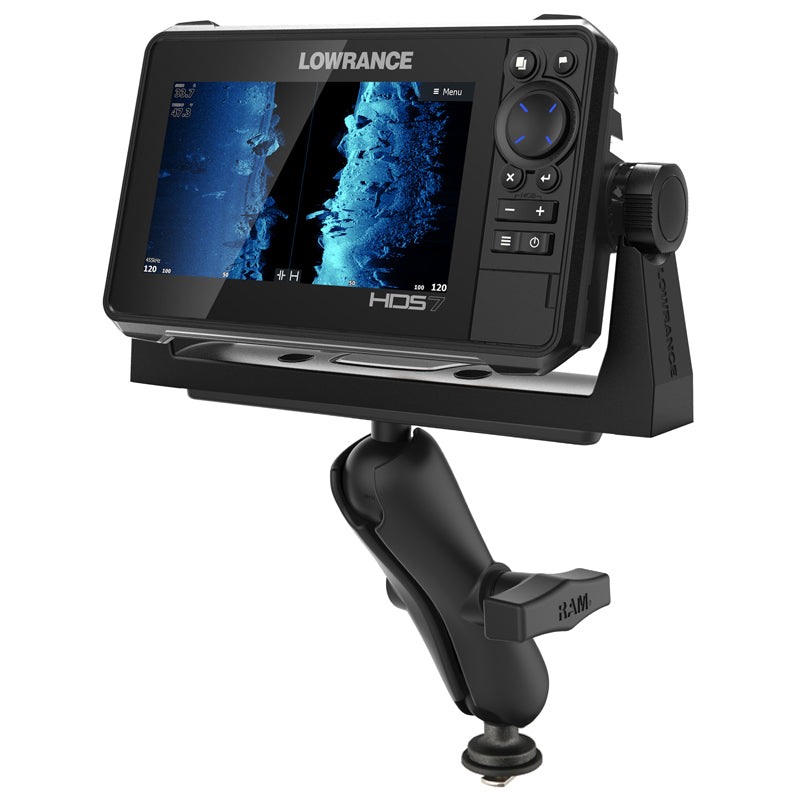

Overview | The RAM-111B-354-TRA1U consists of a Track Ball™ base that can attach to any track system including the RAM Tough-Track™. Connected to the base is a standard length double socket arm and 6.25" x 2" rectangle plate for supporting a wide range of fishfinders and chartplotters. The rectangular plate contains different combinations of pre-drilled holes which will match up to many electronic devices and mounts, including Marine GPS, CB Radios, Ham Radios, Gimbal Brackets and more. |
Specifications | |
---|---|
hardware included | (1) Friction Washer (1) 1/4"-20 x 7/8" T-Bolt |
product dimensions | Overall Height: 7.5" |
t bolt dimensions | .48" x .95" |
socket to socket length | 4.66" |
hole pattern | See Drawing |
plate size | 6.25" x 2" |
ball size | C Size (1.5") |
weight capacity | Standard Use: 4 lbs Heavy-Duty Use: 3 lbs |
materials | Marine-grade aluminum High strength composite |
packaging type | Poly Bag |
Weight | 1.2 lb |
Additional Information | The included plate is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device. |


The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size
Holds .5 lbs.
Trail Cameras

B Size
Holds 2 lbs.
Phones, Action Cameras, Light Duty Tablets

C Size
Holds 4 lbs.
Fishfinders, Heavy Duty Tablets

D Size
Holds 6 lbs.
Heavy Monitors

E Size
Holds 15 lbs.
Heavy Monitors
The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.
Size | A Size | B Size | C Size | D Size | E Size |
---|---|---|---|---|---|
Short Arm | Overall Length N/A |
Overall Length 3.73" |
Overall Length 5.69" |
Overall Length 5.69" |
Overall Length 5.69" |
Socket-to-Socket Length N/A |
Socket-to-Socket Length 3" |
Socket-to-Socket Length 4.66" |
Socket-to-Socket Length 4.66" |
Socket-to-Socket Length 4.66" |
|
Medium Arm | Overall Length 2.42" |
Overall Length 3.73" |
Overall Length 5.69" |
Overall Length 8.44" |
Overall Length 12.63" |
Socket-to-Socket Length 1.75" |
Socket-to-Socket Length 3" |
Socket-to-Socket Length 4.66" |
Socket-to-Socket Length 6.88" |
Socket-to-Socket Length 9.88" |
|
Long Arm | Overall Length 6" |
Overall Length 6" |
Overall Length 9.13" |
Overall Length 12.98" |
Overall Length N/A |
Socket-to-Socket Length 5.31" |
Socket-to-Socket Length 5.31" |
Socket-to-Socket Length 8" |
Socket-to-Socket Length 11.41" |
Socket-to-Socket Length N/A |
Compatible Devices
Garmin
ECHOMAP Plus 72cv
ECHOMAP Plus 73cv
ECHOMAP Plus 74cv
ECHOMAP Plus 75cv
ECHOMAP Plus 77cv
ECHOMAP UHD2 5"
ECHOMAP UHD2 7"
GPSMAP 722
GPSMAP 722xs
GPSMAP 723
GPSMAP 723xsv
GPSMAP 742
GPSMAP 742xs
GPSMAP 743
GPSMAP 743xsv
Striker Plus 5cv
Striker Vivid 5cv
Striker Plus 7cv
Striker Plus 7sv
Striker Vivid 5cv
Striker Vivid 7cv
Striker Vivid 7sv
Fishfinders and GPS Chartplotters
Lowrance
HDS Carbon 7
HDS LIVE 7
Fishfinders and GPS Chartplotters
Humminbird
Fishfinders and GPS Chartplotters
Raymarine
Fishfinders and GPS Chartplotters


The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size
Holds .5 lbs.
Trail Cameras

B Size
Holds 2 lbs.
Phones, Action Cameras, Light Duty Tablets

C Size
Holds 4 lbs.
Fishfinders, Heavy Duty Tablets

D Size
Holds 6 lbs.
Heavy Monitors

E Size
Holds 15 lbs.
Heavy Monitors
The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.
Size | A Size | B Size | C Size | D Size | E Size |
---|---|---|---|---|---|
Short Arm | Overall Length N/A |
Overall Length 3.73" |
Overall Length 5.69" |
Overall Length 5.69" |
Overall Length 5.69" |
Socket-to-Socket Length N/A |
Socket-to-Socket Length 3" |
Socket-to-Socket Length 4.66" |
Socket-to-Socket Length 4.66" |
Socket-to-Socket Length 4.66" |
|
Medium Arm | Overall Length 2.42" |
Overall Length 3.73" |
Overall Length 5.69" |
Overall Length 8.44" |
Overall Length 12.63" |
Socket-to-Socket Length 1.75" |
Socket-to-Socket Length 3" |
Socket-to-Socket Length 4.66" |
Socket-to-Socket Length 6.88" |
Socket-to-Socket Length 9.88" |
|
Long Arm | Overall Length 6" |
Overall Length 6" |
Overall Length 9.13" |
Overall Length 12.98" |
Overall Length N/A |
Socket-to-Socket Length 5.31" |
Socket-to-Socket Length 5.31" |
Socket-to-Socket Length 8" |
Socket-to-Socket Length 11.41" |
Socket-to-Socket Length N/A |
Compatible Devices
Garmin
ECHOMAP Plus 72cv
ECHOMAP Plus 73cv
ECHOMAP Plus 74cv
ECHOMAP Plus 75cv
ECHOMAP Plus 77cv
ECHOMAP UHD2 5"
ECHOMAP UHD2 7"
GPSMAP 722
GPSMAP 722xs
GPSMAP 723
GPSMAP 723xsv
GPSMAP 742
GPSMAP 742xs
GPSMAP 743
GPSMAP 743xsv
Striker Plus 5cv
Striker Vivid 5cv
Striker Plus 7cv
Striker Plus 7sv
Striker Vivid 5cv
Striker Vivid 7cv
Striker Vivid 7sv
Fishfinders and GPS Chartplotters
Lowrance
HDS Carbon 7
HDS LIVE 7
Fishfinders and GPS Chartplotters
Humminbird
Fishfinders and GPS Chartplotters
Raymarine
Fishfinders and GPS Chartplotters

Get a notification as soon as this product is available by signing up below!
Thank you for your interest in RAM-111B-354-TRA1U!
We'll email you once the item is available.
Overview
The RAM-111B-354-TRA1U consists of a Track Ball™ base that can attach to any track system including the RAM Tough-Track™. Connected to the base is a standard length double socket arm and 6.25" x 2" rectangle plate for supporting a wide range of fishfinders and chartplotters. The rectangular plate contains different combinations of pre-drilled holes which will match up to many electronic devices and mounts, including Marine GPS, CB Radios, Ham Radios, Gimbal Brackets and more.
Features
- Fishfinder track mount designed for track mounting systems including the RAM® Tough-Track™ and other third party track systems
- Includes 1.5" diameter C size RAM® Track-Ball™, medium length C size socket arm, and 6.25" x 2" adapter plate for fishfinders and GPS chartplotters; RAM® Mounts ball and socket technology allows for near-infinite adjustability
- RAM® Track-Ball® compatible with most integrated kayak tracks
- Adapter plate compatible with select Garmin, Lowrance, Raymarine and Humminbird Fishfinders and GPS chartplotters
- Backed by a lifetime warranty
hardware included:
(1) Friction Washer
(1) 1/4"-20 x 7/8" T-Bolt
product dimensions:
Overall Height: 7.5"
t bolt dimensions:
.48" x .95"
socket to socket length:
4.66"
hole pattern:
See Drawing
plate size:
6.25" x 2"
ball size:
C Size (1.5")
weight capacity:
Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs
materials:
Marine-grade aluminum
High strength composite
packaging type:
Poly Bag
Weight:
1.2 lb
Additional Information:
The included plate is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.
