RAM® Double Ball Mount with 1/4"-20 Male Thread - C Size Medium
Part#: RAM-101AU
UPC: 793442905339
Ball Icon C Size
Arm Icon Medium Arm
$67.99

Overview

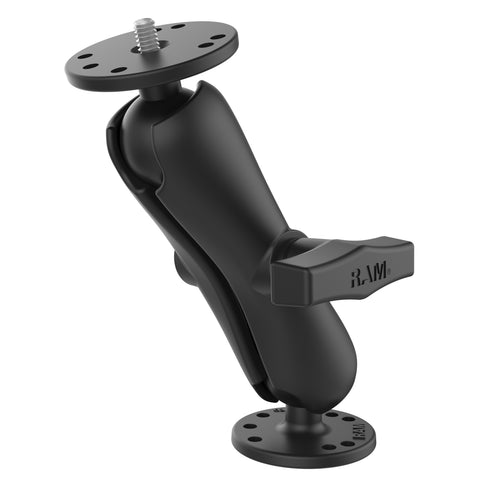

The RAM-101AU consists of a 6 inch double socket arm, one round 2.5" diameter base with the universal AMPS hole pattern and round base with a 1/4"-20 threaded steel stud. The round base provides support and stability for cameras that rest on top of it.The male 1/4"-20 threaded steel stud will connect to any standard female thread found on camcorders and digital cameras. Loosen the knob on the double socket arm to get near-infinite viewing angles.

Features

  • Double socket arm mount; consists of round plate featuring the AMPS hole pattern for attachment to compatible drill-down device holders and round base with male 1/4"-20 thread steel stud

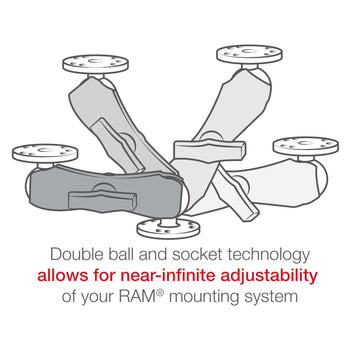

  • Includes two round ball bases and C size medium length double socket arm; ball and socket technology allows for near-infinite adjustability
  • Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty

product dimensions:

Overall Height: 7.35"

socket to socket length:

4.66"

hole pattern:

4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

plate size:

2.5" Diameter

ball size:

C Size (1.5")

weight capacity:

Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs

materials:

Marine-grade aluminum

packaging type:

Poly Bag

Weight:

1.1 lb
