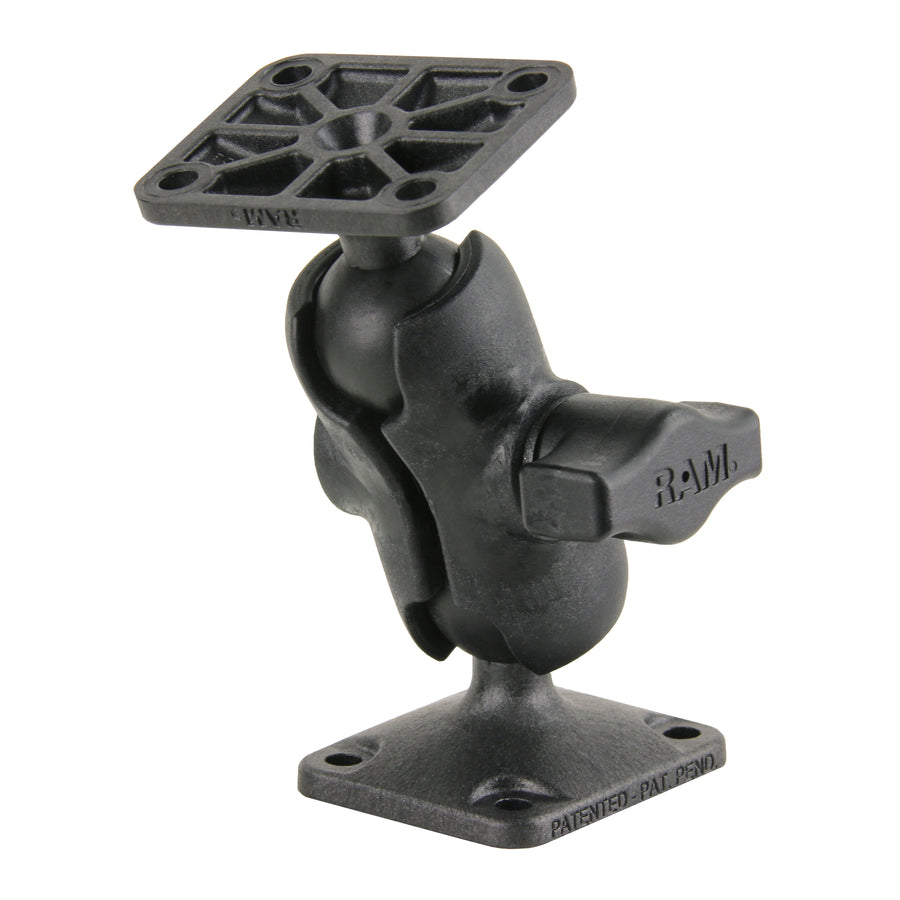

RAM® Composite Double Ball Mount with Rectangle AMPS Plates - Short

Part#: RAP-B-141U-A
UPC: 793442007972

Kit Components

Previous Slide Next Slide
$22.99

Size Guide

Arm lengths
Short, medium, and long double socket arms compared side by side. This product uses a Short arm

The double socket arm clamps over two balls — one on the base and one on your device holder. Arm length sets your reach: short arms are the most stable, while longer arms give you more freedom to position the device.

RAM Mounts overall and socket-to-socket arm lengths by ball size
Arm Length Measurement A Size B Size — this product's ball size C Size D Size E Size
Short Overall Length N/A 2.42" — this product 3.56" 5.69" 5.69"
Socket-to-Socket Length N/A 1.75" 2.5" 4.66" 4.66"
Medium Overall Length 2.42" 3.73" 5.69" 8.44" 12.63"
Socket-to-Socket Length 1.75" 3" 4.66" 6.88" 9.88"
Long Overall Length 3.56" 6" 9.13" 12.98" N/A
Socket-to-Socket Length 3.12" 5.31" 8" 11.41" N/A
RAM® Backing Plate Adapter

RAM® Backing Plate Adapter

$13.99

Overview

This composite drill-down double ball mount features two AMPS hole pattern bases with 1" diameter balls. Each base has four pre-drilled holes at each corner with 1.5" x 1.188" hole spacing. These bases attach directly to the included short double socket arm. Take advantage of the RAM® double ball and socket system for near-infinite adjustability to achieve a perfect viewing angle for your mounted device.

socket to socket length:

1.75"

hole pattern:

4-Hole AMPS: 1.181" x 1.496"

ball size:

B Size (1")

weight capacity:

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials:

High strength composite

packaging type:

Poly Bag

Weight:

0.27 lb

Return Policy:

All products purchased from RAM® can be returned within 30 days with no restocking fee (return shipping not provided). See full return policy here.
