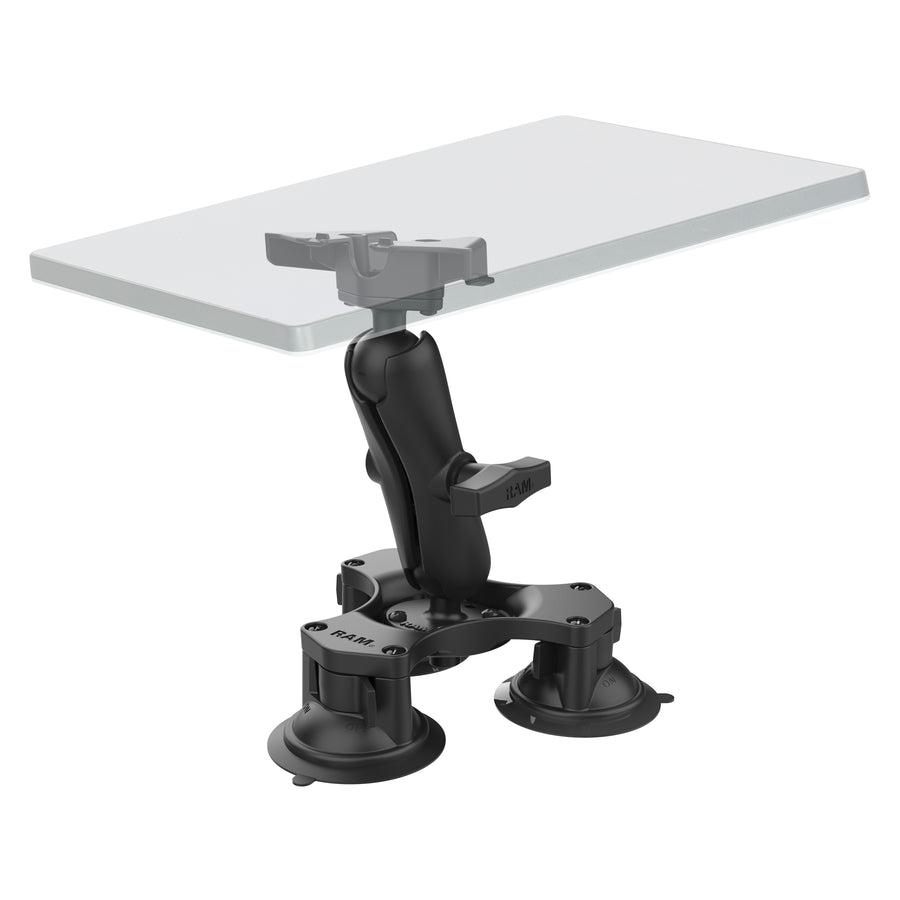

RAM® Twist-Lock™ Triple Suction Heavy Duty Mount for Starlink Mini

Part#: RAP-365-138-STA1U
UPC: 793442029462

Kit Components

Previous Slide Next Slide
$131.49
RAM® Tough-Mag™ 48MM 3-Point Magnetic Mounting Base

RAM® Tough-Mag™ 48MM 3-Point Magnetic Mounting Base

$454.49

Overview

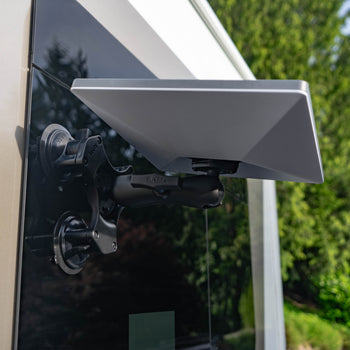

The RAM® Twist-Lock™ Triple Suction Heavy Duty Mount for Starlink Mini (RAP-365-138-STA1U) features everything you need to secure your Starlink Mini to on any smooth non-porous surfaces, like windshields. The RAM® ball-and-socket system enables you to securely position your Starlink Mini at the recommended 8° horizontal angle for optimal satellite performance. Made of powder-coated, marine-grade aluminum and high-strength composite materials, this kit is engineered to withstand harsh environments, making it as versatile as you need it to be. The modular, fully adjustable RAM® system allows for quick installation, easy repositioning, and effortless removal—so you can stow your Starlink Mini safely when not in use. The base combines the power of three Twist-Lock™ suction cups that can quickly be secured to flat surfaces, all it takes is a flick of the switch. Whether you're off-grid, on the road, or setting up a remote worksite, this comprehensive mounting solution for the Starlink Mini gives you the flexibility and durability to stay connected wherever you go.

Features

  • Toolless suction cup mounting solution for Starlink Mini

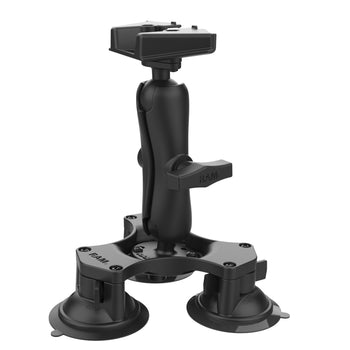

  • Includes one Twist-Lock™ triple suction cup base, one starlink mini adapter, and C size medium length double socket arm; ball and socket technology allows for near-infinite adjustability
  • RAM® Twist-Lock™ triple suction cup base is ideal for windshields and other nonporous surfaces
  • Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty

hardware included:

Assembly Hardware

suction size:

(3) 3.3" Diameter Bases, Total Width 7.95"

socket to socket length:

4.66"

ball size:

C Size (1.5")

weight capacity:

Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs

materials:

Marine-grade aluminum
High strength composite

packaging type:

Poly Bag

Weight:

1.94 lb

Return Policy:

All products purchased from RAM® can be returned within 30 days with no restocking fee (return shipping not provided). See full return policy here.

Print

Instructions

Assembly Instructions for Starlink Mini Adapter

Documents

Drawing File: Triple Suction Cup Ball Base
Off Road Catalog

QUESTIONS & ANSWERS

Have a Question?

Ask a Question

  • Do these suction cups work on fiberglass campers?

    Yes the rammount suction cup would work on a fiberglass camper, the suction cup is designed for nonporous surfaces.
RAM® Twist-Lock™ Triple Suction Heavy Duty Mount for Starlink Mini
$131.49

Size Guide

Ball sizes
  • A Size 0.56" ball
  • B Size 1" ball
  • C Size — this product 1.5" ball
  • D Size 2.25" ball
  • E Size 3.38" ball

Every RAM® mount is built around a rubber ball and socket system. The ball size sets how much weight the mount can carry. Match it to your device for smooth adjustment with a rock-solid hold.

RAM Mounts ball size specifications and typical uses
Size Ball Diameter Max Load* Best For
A0.56" (14.3 mm)0.5 lbAction cameras and other ultra-light devices
B1" (25.4 mm)2 lbsPhones, GPS units, and small tablets — the most common size
C — this product1.5" (38.1 mm)4 lbsLarge tablets, fish finders, and rougher rides
D2.25" (57.2 mm)6 lbsRugged tablets, laptops, and heavy equipment
E3.38" (85.9 mm)15 lbsLarge displays and demanding aviation or industrial use

*Approximate capacity for a standard ball with a mid-length arm. Shorter arms and steel-reinforced posts increase real-world capacity.

Reading part numbers

The letter after RAM tells you the ball size: RAM-B-166 uses a 1" B ball, while RAM-D-201 uses a 2.25" D ball. C size parts are the exception and carry no letter, so RAM-201U is a C size arm.
