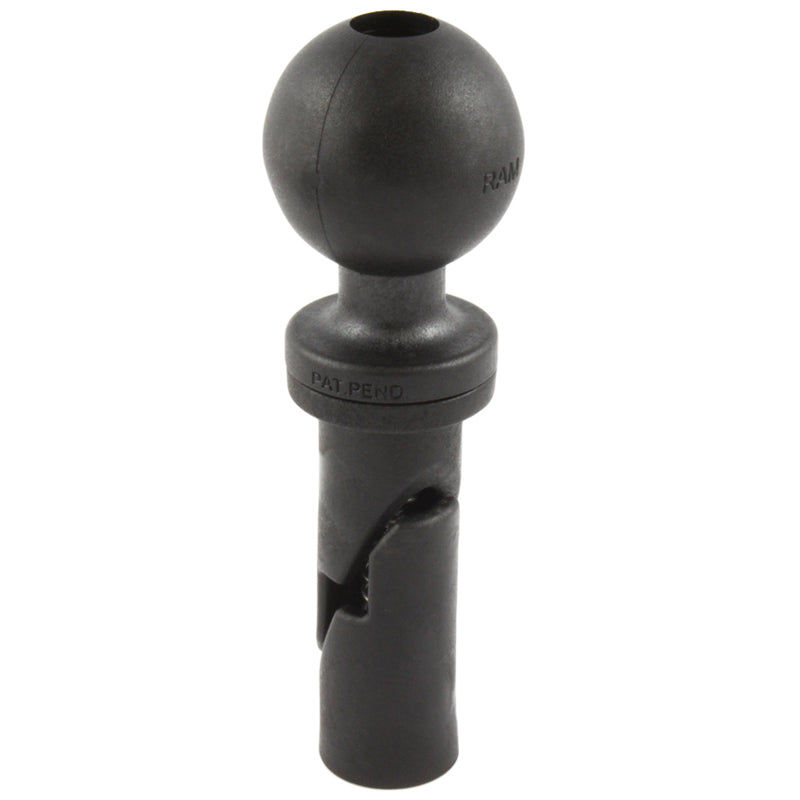

RAM® Wedge Ball Adapter for Scotty and Hobie Sail Port Base - C Size
Part #: RAP-354U UPC: 793442911880 Patented

Product Information
Overview	Keeping things simple and versatile, the new RAM Ball Wedge Mounts are a great way to provide a mounting point to practically anything. Simply slide the wedge into the round opening of your rod holder base and tighten the screw. The new RAM Ball Wedge Base expands to accommodate holes from 7/8”- 1” diameter and locks in tight. Once installed, you have the perfect way to mount anything from RAM Rod holders, GPS, Cell Phone, Cup Holder, Fishfinder, or Flash Light which can all be supported and perfectly positioned using this great new product.

Product Information

Overview

Keeping things simple and versatile, the new RAM Ball Wedge Mounts are a great way to provide a mounting point to practically anything. Simply slide the wedge into the round opening of your rod holder base and tighten the screw. The new RAM Ball Wedge Base expands to accommodate holes from 7/8”- 1” diameter and locks in tight. Once installed, you have the perfect way to mount anything from RAM Rod holders, GPS, Cell Phone, Cup Holder, Fishfinder, or Flash Light which can all be supported and perfectly positioned using this great new product.

Specifications
hardware included	Assembly Hardware
ball size	C Size (1.5")
weight capacity	Standard Use: 4 lbs Heavy-Duty Use: 3 lbs
materials	High strength composite
packaging type	Poly Bag
Weight	0.2 lb

RAM® Wedge Ball Adapter for Scotty and Hobie Sail Port Base - C Size

Questions about our products? Email us for support.

Patented

RAM® Wedge Ball Adapter for Scotty and Hobie Sail Port Base - C Size

Part#: RAP-354U

UPC: 793442911880

C Size

Size Guide

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

$20.99
