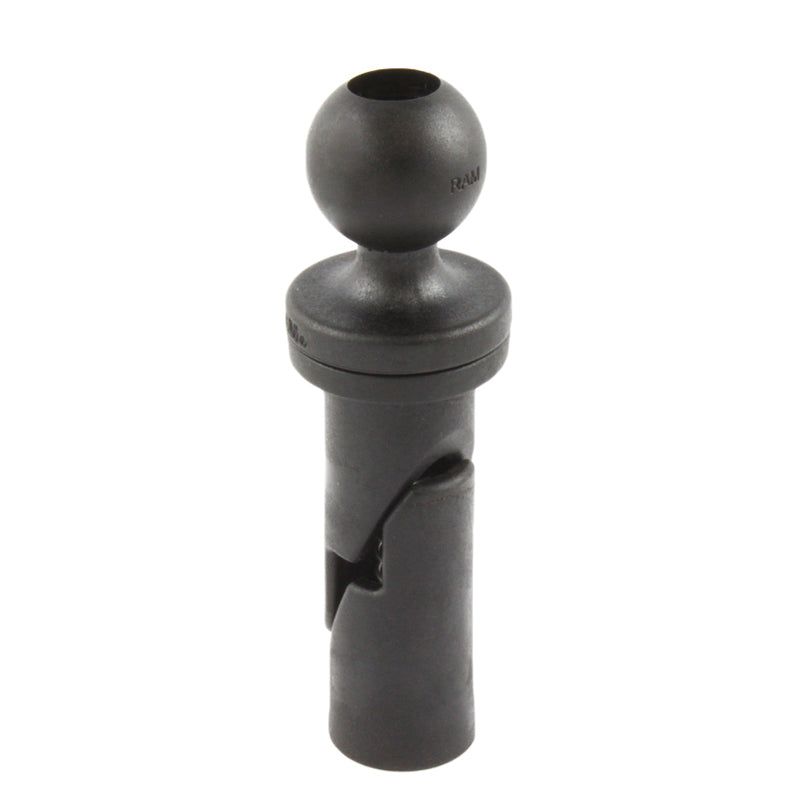

RAM® Wedge Ball Adapter for Scotty and Hobie Sail Port Base - B Size
Part #: RAP-B-354U UPC: 793442911903 Patented

Product Information

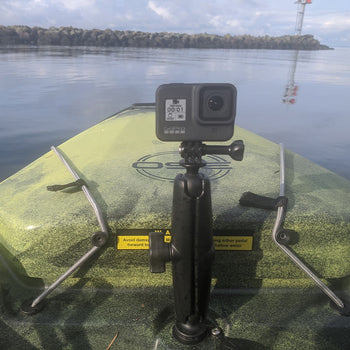

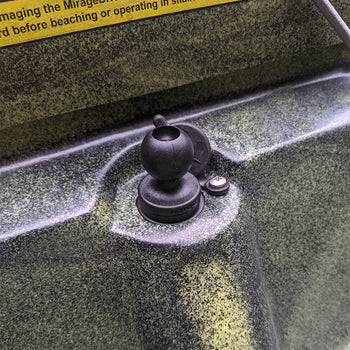

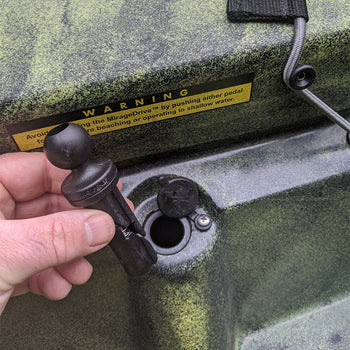

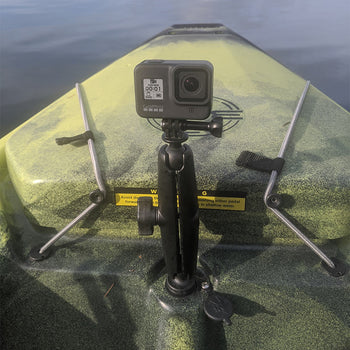

Overview	Keeping things simple and versatile, the new RAM Ball Wedge Mounts are a great way to provide a mounting point to practically anything. Simply slide the wedge into the round opening of your rod holder base and tighten the screw. The new RAM Ball Wedge Base expands to accommodate holes from 7/8”- 1” diameter and locks in tight.

Specifications
hardware included	Assembly Hardware
wedge dimensions	Fits tube diameters .875" - 1"
ball size	B Size (1")
weight capacity	Standard Use: 2 lbs Heavy-Duty Use: 1 lb
materials	High strength composite
packaging type	Poly Bag
Weight	0.17 lb

RAM® Wedge Ball Adapter for Scotty and Hobie Sail Port Base - B Size

Patented

RAM® Wedge Ball Adapter for Scotty and Hobie Sail Port Base - B Size

Name: RAM® Wedge Ball Adapter for Scotty and Hobie Sail Port Base - B Size
Brand: RAM Mounts
SKU: RAP-B-354U
Price: 16.49 USD
Availability: InStock

Part#: RAP-B-354U

UPC: 793442911903

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fish Finders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 3.56"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 3.12"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

$16.49

Options

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fish Finders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 3.56"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 3.12"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

Options

Overview

Keeping things simple and versatile, the new RAM Ball Wedge Mounts are a great way to provide a mounting point to practically anything. Simply slide the wedge into the round opening of your rod holder base and tighten the screw. The new RAM Ball Wedge Base expands to accommodate holes from 7/8”- 1” diameter and locks in tight.

hardware included:

Assembly Hardware

wedge dimensions:

Fits tube diameters .875" - 1"

ball size:

B Size (1")

weight capacity:

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials:

High strength composite

packaging type:

Poly Bag

Weight:

0.17 lb

Return Policy:

All products purchased from RAM® can be returned within 30 days with no restocking fee (return shipping not provided). See full return policy here.

Print

Instructions

RAM Wedge Base Assembly Guide

Documents

Knowledge Base: Ball Sizes

QUESTIONS & ANSWERS

Have a Question?

Ask a Question

Does this fit the hobie mirage revolution sail port?

The RAP-B-354U expands to accommodate holes from 7/8”- 1” diameter and locks in tight. If the Hobie Mirage Revolution Sail port is within that range, it'll fit.
What are the specs of the screw used on part #: RAP-B-354U? It's part "D" on the parts index. Thank you!

The screw (Part D) included with RAP-B-354U is a #10-24 X 3-1/2" Phillips drive machine screw.
