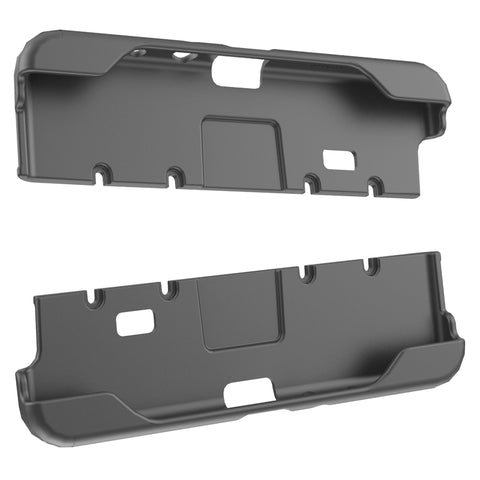

RAM® Tab-Tite™ End Cups for Samsung Galaxy Tab E 9.6
Part#:RAM-HOL-TAB31-CUPSU UPC:793442950193
The RAM-HOL-TAB31-CUPSU includes (2 qty) Tab-Tite™ cup ends and hardware. The interchangeable support cups can be used, along with all RAM Tab-Tite™ and Tab-Lock™ mounts; these include the universal backplate that support all TAB cups. Hardware is included to attach the cup ends to the backplate.

hardware included

(10) #4 x 3/8" Sheet Metal Screws
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 x 1/2" Machine Screws
(4) #8-32 Nylock Nuts

holder dimensions

Height Range: 9.375" - 11.875"
Width Range: 4.5" - 5.875"
Depth Range: .3125" max


High strength composite

packaging type

Poly Bag


0.23 lb
