• Interchangeable RAM® Tab-Tite™ end cups support most 7-8" tablets with cases
  • Included hardware allows for easy attachment to RAM® Tab-Lock™ and RAM® Tab-Tite™ backplates
  • Made of high-strength composites for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty

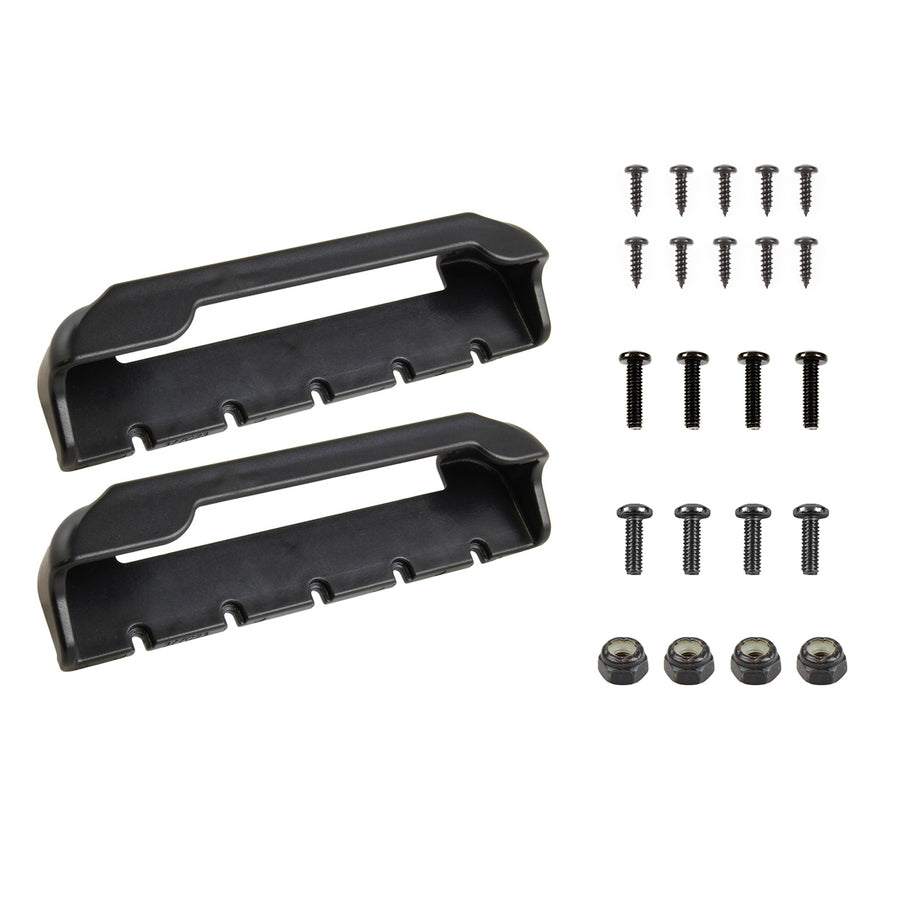

RAM® Tab-Tite™ End Cups for 7-8" Tablets with Cases
Part#:RAM-HOL-TAB23-CUPSU UPC:793442948107
The RAM-HOL-TAB23-CUPSU includes (2 qty) Tab-Tite™ cup ends and hardware. The interchangeable support cups can be used, along with all RAM Tab-Tite™ and Tab-Lock™ mounts; these include the universal backplate that support all TAB cups. Hardware is included to attach the cup ends to the backplate. The Tab-Tite™ cradle end cups are compatible with any tablet that will fit the dimensions listed below. It is important to verify the dimensions of your tablet in the case when determining the overall size.

hardware included

(10) #4 x 3/8" Sheet Metal Screws
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 x 1/2" Machine Screws
(4) #8-32 Nylock Nuts

holder dimensions

Height Range: 8.32" - 10.92"
Width Range: 4.43" - 5.3"
Depth Range: .13" - .62"


High strength composite

packaging type

Poly Bag


0.19 lb
