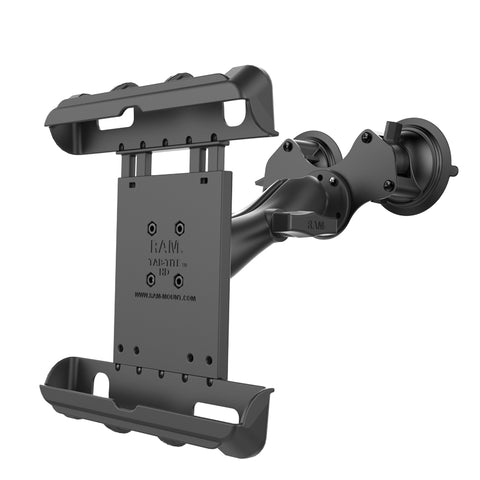

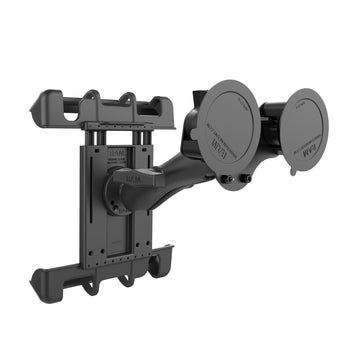

RAM^® Tab-Tite^™ Tablet Mount with RAM^® Twist-Lock^™ Double Suction Cup
Part #: RAM-HOL-TAB17-189BU UPC: 793442948077 Patented

Product Information
Overview	The RAM-HOL-TAB17-189BU consists of a double 3.3" twist lock suction cup base with 1.5" dia. ball, double socket arm, round base adapter and Tab-Tite^™ universal clamping cradle. The suction cup base is designed to have a strong hold on glass and non-porous plastic surfaces. The spring loaded Tab-Tite^™ cradle makes it easy to load and unload your tablet, along with keeping it secure while on the go. Interchangeable cup ends are designed to optimize the functionality of your tablet, allowing access to audio jacks, usb, power, and other ports, your tablet can be used just as it was intended. For off-road environments and extreme use, we recommended the use of a tether to assist in retaining your device.The Tab-Tite^™ cradle is compatible with any tablet that will fit the dimensions listed below. It is important to verify the dimensions of your tablet when determining the overall size.

Product Information

Overview

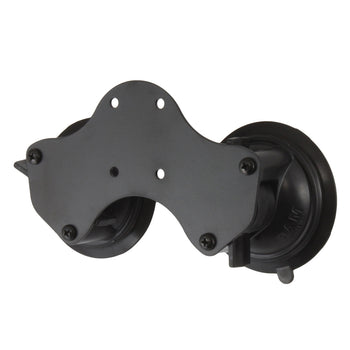

The RAM-HOL-TAB17-189BU consists of a double 3.3" twist lock suction cup base with 1.5" dia. ball, double socket arm, round base adapter and Tab-Tite^™ universal clamping cradle. The suction cup base is designed to have a strong hold on glass and non-porous plastic surfaces. The spring loaded Tab-Tite^™ cradle makes it easy to load and unload your tablet, along with keeping it secure while on the go. Interchangeable cup ends are designed to optimize the functionality of your tablet, allowing access to audio jacks, usb, power, and other ports, your tablet can be used just as it was intended. For off-road environments and extreme use, we recommended the use of a tether to assist in retaining your device.The Tab-Tite^™ cradle is compatible with any tablet that will fit the dimensions listed below. It is important to verify the dimensions of your tablet when determining the overall size.

Specifications
hardware included	Assembly Hardware
holder dimensions	Height Range: 9.5" - 11.75" Width Range: 6.375" - 8.25" Depth Range: .13" - 1.1"
ball size	C Size (1.5")
weight capacity	Standard Use: 4 lbs Heavy-Duty Use: 3 lbs
materials	High strength composite
packaging type	Poly Bag
Weight	2.5 lb

RAM<sup>®</sup> Tab-Tite<sup>™</sup> Tablet Mount with RAM<sup>®</sup> Twist-Lock<sup>™</sup> Double Suction Cup

Questions about our products? Email us for support.

Patented

RAM^® Tab-Tite^™ Tablet Mount with RAM^® Twist-Lock^™ Double Suction Cup

Part#: RAM-HOL-TAB17-189BU

UPC: 793442948077

C Size

Medium Arm

Size Guide

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A
