Overview

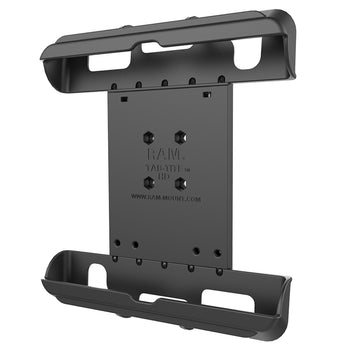

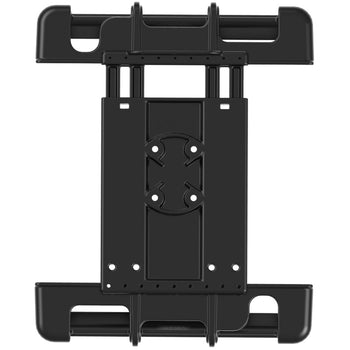

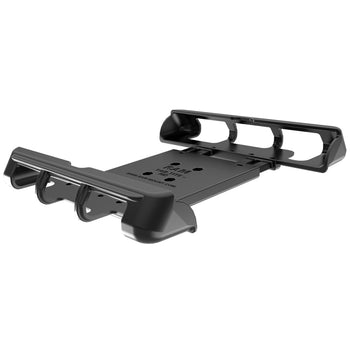

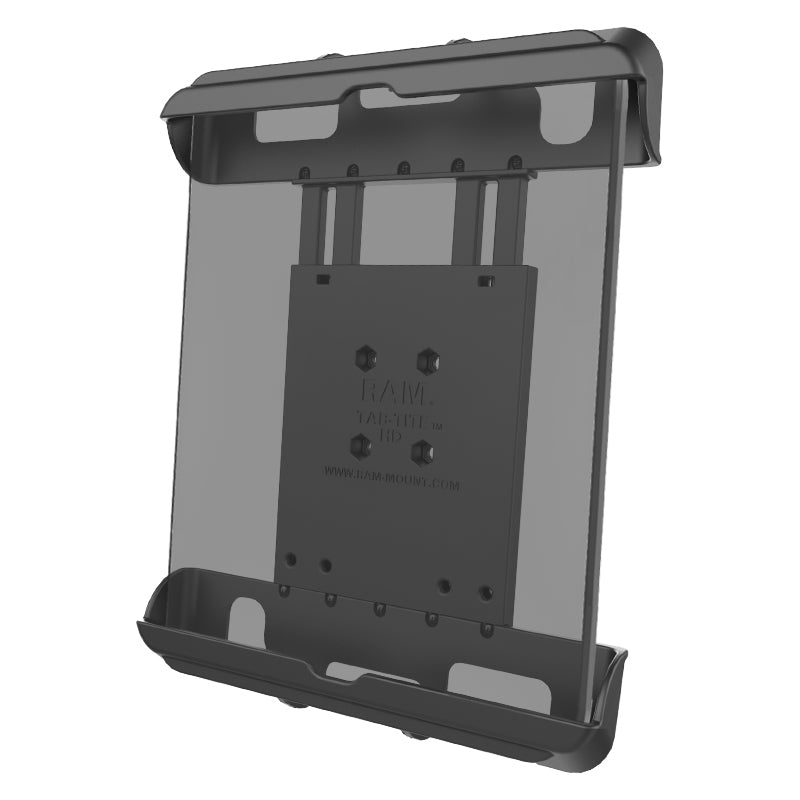

The RAM® Tab-Tite™ spring-loaded, quick release holder offers a secure fit with easy access to the mounted tablet. The spring-loaded design makes it easy to insert and remove your tablet, while keeping it secure in a variety of applications. The custom end cups are designed to optimize the functionality of your tablet, enabling access to all buttons, ports, and tablet functions. Included is a set of four nuts and bolts to attach the holder to any RAM® components that contain the universal AMPS hole pattern. For off road environments and use in open cockpit applications, we recommended the use of a tether to assist in securing your device. The RAM® Tab-Tite™ holder is compatible with any tablet within the listed dimensions.
Features

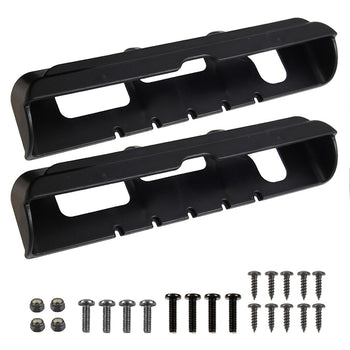

- Spring-loaded holder secures the iPad (1st, 2nd, 3rd, and 4th Gen) with case and more; interchangeable end cups allow you to modify the holder when upgrading devices
- Compatible with B and C size RAM® round ball bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
- Made of high-strength composites for durability and reliability in the most demanding environments
- Backed by a lifetime warranty
hardware included:
Assembly Hardware
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 x 1/2" Machine Screws
(4) #8-32 Nylock Nuts
holder dimensions:
Height Range: 9.5" - 11.75"
Width Range: 6.375" - 8.25"
Depth Range: .13" - 1.1"
hole pattern:
4-Hole AMPS: 1.181" x 1.496"
materials:
High strength composite
packaging type:
Poly Bag
Weight:
0.69 lb
Instructions
Documents
Questions & Answers
Have a Question?
-
I don't see my tablet listed in the compatibility section for this cradle. How can I make sure my tablet is compatible before placing an order?
You can find a list of compatible dimensions for this cradle in the product information section. If you want to make sure your tablet will fit in this cradle you can measure your tablet to make sure it falls within the compatible dimensions.
-
This item, will it fit iPad Pro 11 5th generation. Will the pencil pro still attach to the iPad?
Yes, it will fit the iPad Pro 11 gen 5 as long as it's within these dimension ranges:
height 9.5" to 11.75"
width 6.375" to 8.5"
thickness .13" to 1.1"
I'm sorry but it does not hold the pencil pro.
