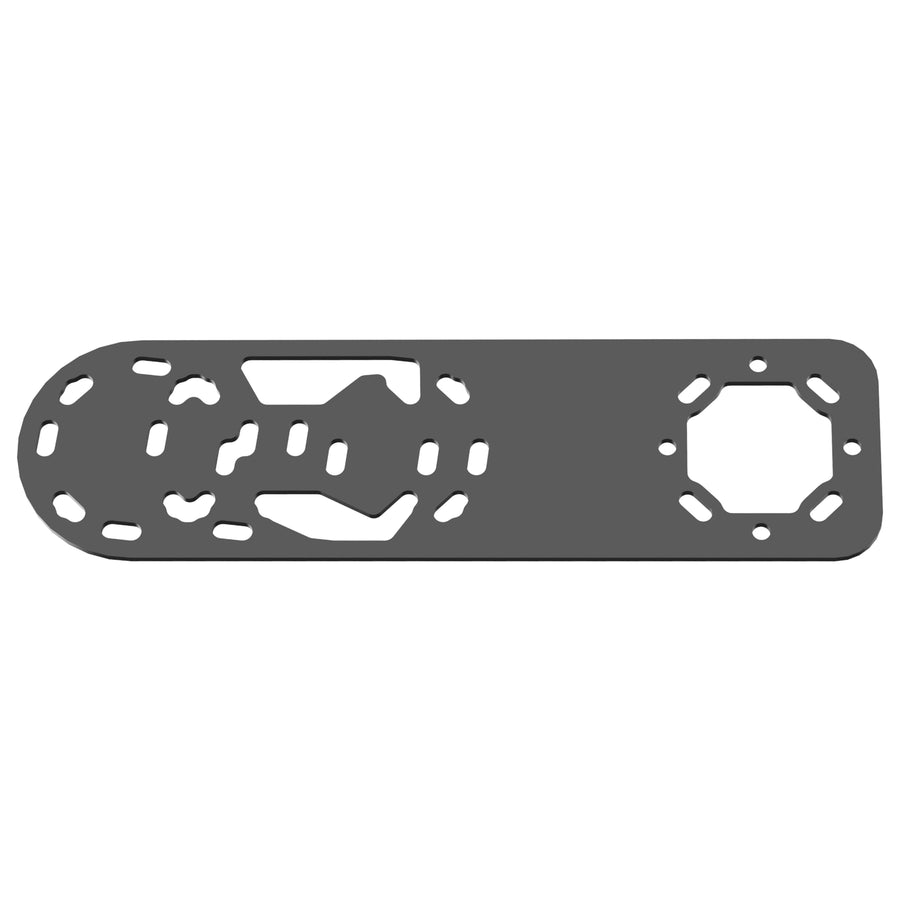

RAM® Short Bracket Adapter for Speakers & Microphones
$15.99
Short Length

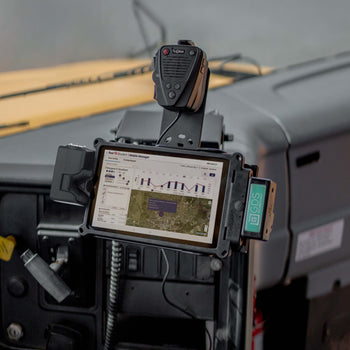

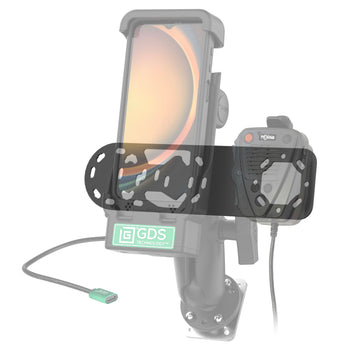

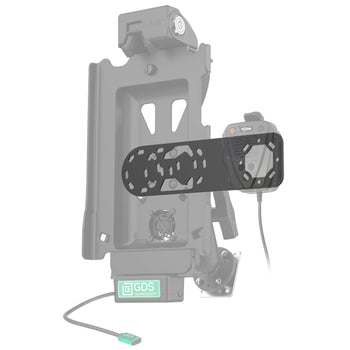

Attach a speaker or microphone to your RAM® Tab-Tite™ or RAM® Tab-Lock™ cradle with the RAM® Speaker/Microphone Bracket. Simply install the bracket between the cradle and the ball base – hardware is included for attaching the bracket to any cradle. Compatible with speakers, microphones and accessories that use the common AMPS hole pattern, the bracket features four spaced AMPS hole pattern sets that allow for various mounting heights. Also included is a vertical and horizontal set of holes for attaching a diamond base. Measuring 8.99" in length, this bracket supports both portrait and landscape placement.
RAM® Short Bracket Adapter for Speakers & Microphones
Overview
Attach a speaker or microphone to your RAM® Tab-Tite™ or RAM® Tab-Lock™ cradle with the RAM® Speaker/Microphone Bracket. Simply install the bracket between the cradle and the ball base – hardware is included for attaching the bracket to any cradle. Compatible with speakers, microphones and accessories that use the common AMPS hole pattern, the bracket features four spaced AMPS hole pattern sets that allow for various mounting heights. Also included is a vertical and horizontal set of holes for attaching a diamond base. Measuring 8.99" in length, this bracket supports both portrait and landscape placement.
hardware included
(2) #8 x 3/4" Sheet Metal Screws
(4) #8-32 x 3/4" Machine Screws
(2) #8-32 x 3/8" Machine Screws
(2) #8-32 Nylock Nuts
(2) M4 x 35mm Machine Screws
(2) M4 Nylock Nuts
product dimensions
Overall Length: 8.99"
hole pattern
See Drawing
materials
Powder coated steel
packaging type
Poly Bag
Weight
0.54 lb
