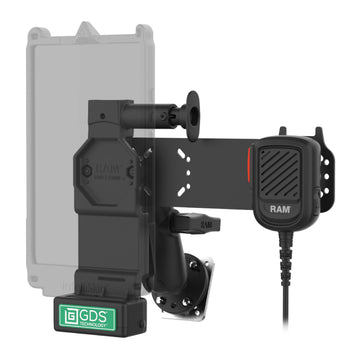

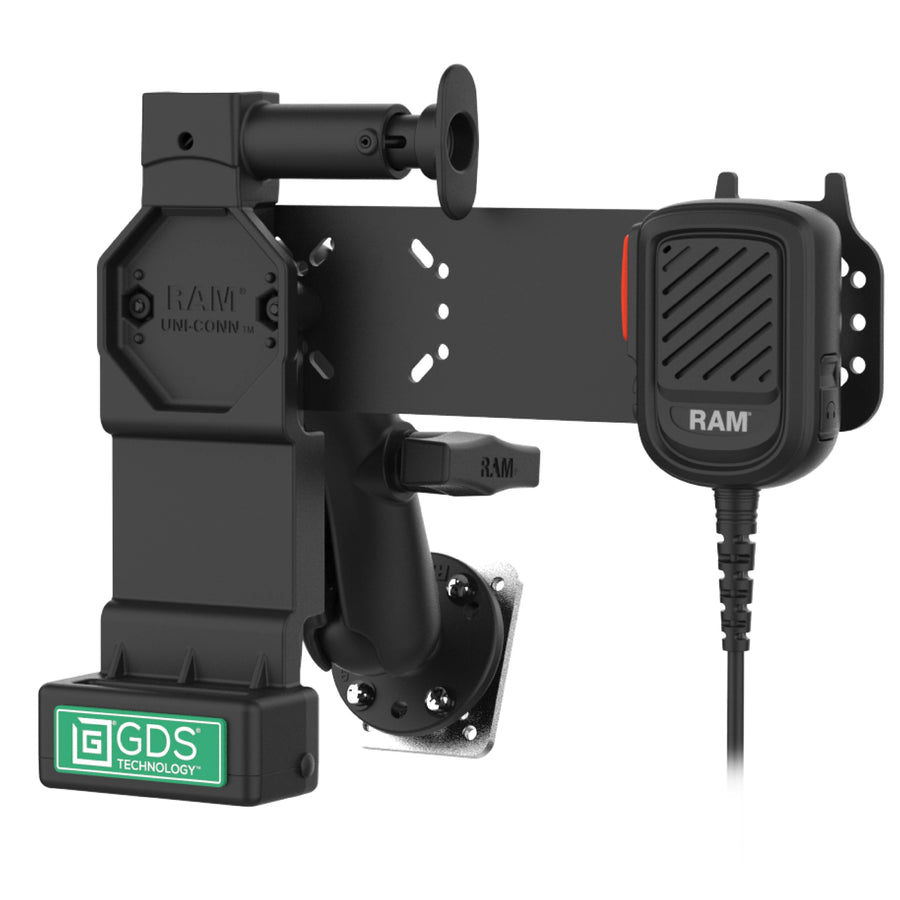

GDS® Uni-Conn™ PTT Remote Speaker Mic Bundle for Kodiak
Overview
The GDS® Uni-Conn™ PTT Remote Speaker Mic Bundle for Kodiak (RAM-GDS-U4-RSM-A05) delivers everything you need to enable reliable Push-to-Talk over Cellular (PoC) in your fleet. This bundle does not include an IntelliSkin®, ideal for organizations already using IntelliSkin® device sleeves or deploying a mixed-device fleet within the GDS® Ecosystem™. This bundle includes the universal Uni-Conn™ dock with side release button, drill-down base with backing plate, microphone bracket, microphone clip, and a rugged USB-C Remote Speaker Microphone (RSM). Compatible with Kodiak, it ensures clear, instant communication for fleets, first responders, logistics teams, and mobile workforces.
Features
- GDS® Uni-Conn™ Push-to-Talk mounting bundle designed for devices wrapped in an IntelliSkin® protective sleeve with GDS® Uni-Conn™ Adapter installed (sold separately)
- Uses a USB-C connector for reliable push-to-talk (PTT) or PTT over Cellular (PoC) when paired with a RAM® tablet or phone dock
- Uni-Conn™ dock featuring GDS® Technology™ uses an integrated pogo pin connector to provide high-speed charging
- Uni-Conn™ dock features a quick-release button for easy device insertion and removal
- Mounting components backed by a lifetime warranty; electronics backed by a 3-year warranty

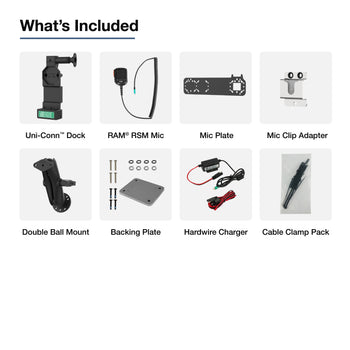

hardware included:
(1) Remote Speaker Mic
(1) Uni-Conn™ Dock
(1) Mic Bracket
(1) Mic Clip Receiver
(1) Double Ball Mount with Backing Plate
(1) Hardwire Charger
(2) Cable Clamp Kits
socket to socket length:
4.66"
hole pattern:
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
ball size:
C Size (1.5")
materials:
Steel
Marine-grade aluminum
High strength composite
packaging type:
Box
power specifications:
Remote Speaker Mic:
Operating Voltage: 1.2VDC - 5VDC
Current Consumption 100UA - 500UA
Output Impedance @ 1KHZ Max 2.2K Ohms
Signal to Noise Ratio: 1KHZ 60+ DB
Max Input SPL 110DB
Moisture Ingress Rating IP67
input voltage:
10-30VDC
output voltage:
12VDC
power output:
25W
input connector:
USB Type-C
USB Type-C for 1 Peripheral
input cable length:
215mm
output cable length:
215mm
peripheral output:
500mA
Warranty:
3 year warranty
Weight:
4.81 lb
Return Policy:
All products purchased from RAM® can be returned within 30 days with no restocking fee (return shipping not provided). See full return policy here.
