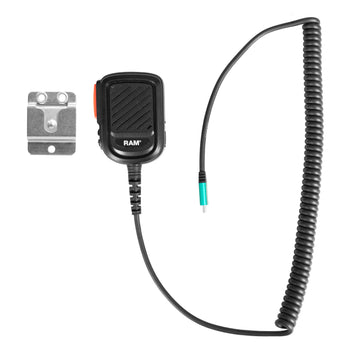

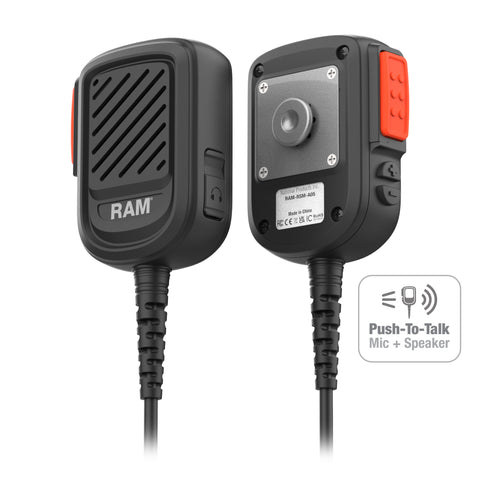

RAM® Remote Speaker Mic with USB-C for Kodiak
Part #: RAM-RSM-A05 UPC: 793442031502 Features 2-in-1 microphone and speaker for amplified audio and push-to-talk (PTT) Uses a USB-C connector for reliable push-to-talk (PTT) or PTT over Cellular (PoC) when paired with a RAM® tablet or phone dock Service compatibility specifically tested to work with Motorola's Kodiak network-integrated platform Lightweight and simple design with clear access to volume buttons, audio port, and PTT button Backed by a 3-year warranty

RAM® Remote Speaker Mic with USB-C for Kodiak

Part #: RAM-RSM-A05 UPC: 793442031502

Features

2-in-1 microphone and speaker for amplified audio and push-to-talk (PTT)
Uses a USB-C connector for reliable push-to-talk (PTT) or PTT over Cellular (PoC) when paired with a RAM® tablet or phone dock
Service compatibility specifically tested to work with Motorola's Kodiak network-integrated platform
Lightweight and simple design with clear access to volume buttons, audio port, and PTT button
Backed by a 3-year warranty

RAM® Remote Speaker Mic with USB-C for Kodiak

Product Information
Overview	The RAM® Remote Speaker Mic with USB-C for Kodiak (RAM-RSM-A05) delivers clear, reliable push-to-talk (PTT) and speaker functionality through a USB-C connection and is designed to support Push-to-Talk over Cellular (PoC). Designed for field operators who prefer an all-in-one PTT solution, this lightweight remote speaker microphone pairs seamlessly with any RAM® tablet or phone docking solution—ideal for public safety, utility services, logistics, delivery fleets, and more.

Product Information

Overview

The RAM® Remote Speaker Mic with USB-C for Kodiak (RAM-RSM-A05) delivers clear, reliable push-to-talk (PTT) and speaker functionality through a USB-C connection and is designed to support Push-to-Talk over Cellular (PoC). Designed for field operators who prefer an all-in-one PTT solution, this lightweight remote speaker microphone pairs seamlessly with any RAM® tablet or phone docking solution—ideal for public safety, utility services, logistics, delivery fleets, and more.

Specifications
hardware included	(1) Microphone (1) Mounting Clip & Hardware
speaker specifications	Max Volume Level: 94db +/- 3DB (@1000-2000HZ) Impedance: 12 OHM (+/- 15%) Rated Noise Power for 100hrs: 1.5W @ 4.24VDC Long Term Max Power 1min On / 2min Off: 2W @ 4.90VDC
packaging type	Poly Bag
power specifications	Operating Voltage: 1.2VDC - 5VDC Current Consumption 100UA - 500UA Output Impedance @ 1KHZ Max 2.2K Ohms Signal to Noise Ratio: 1KHZ 60+ DB Max Input SPL 110DB Moisture Ingress Rating IP67
operating temperature	-10°C to +55°C
ports	3.5mm TS Female - Mono Audio Out Only
certifications	IPCWHAA-A-620B Pull Strength USB-IF Certified FCC, UKCA, CE (RED), RoHS, WEEE, IC
Additional Information	This microphone does not support ESChat or Zello

RAM® Remote Speaker Mic with USB-C for Kodiak

Part#: RAM-RSM-A05

UPC: 793442031502

$165.99

Overview

Features

2-in-1 microphone and speaker for amplified audio and push-to-talk (PTT)
Uses a USB-C connector for reliable push-to-talk (PTT) or PTT over Cellular (PoC) when paired with a RAM® tablet or phone dock
Service compatibility specifically tested to work with Motorola's Kodiak network-integrated platform
Lightweight and simple design with clear access to volume buttons, audio port, and PTT button
Backed by a 3-year warranty

hardware included:

(1) Microphone
(1) Mounting Clip & Hardware

speaker specifications:

Max Volume Level: 94db +/- 3DB (@1000-2000HZ)
Impedance: 12 OHM (+/- 15%)
Rated Noise Power for 100hrs: 1.5W @ 4.24VDC
Long Term Max Power 1min On / 2min Off: 2W @ 4.90VDC

packaging type:

Poly Bag

power specifications:

Operating Voltage: 1.2VDC - 5VDC
Current Consumption 100UA - 500UA
Output Impedance @ 1KHZ Max 2.2K Ohms
Signal to Noise Ratio: 1KHZ 60+ DB
Max Input SPL 110DB
Moisture Ingress Rating IP67
