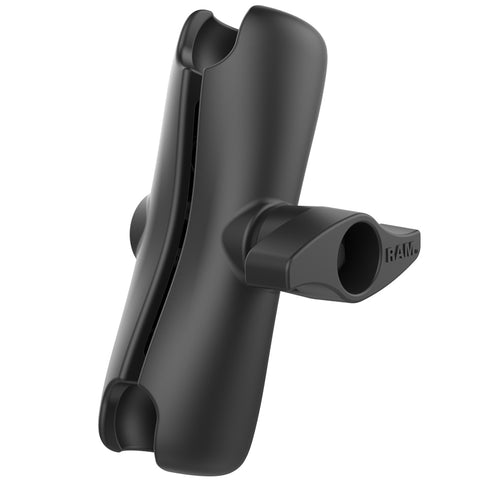

RAM® Double Socket Arm - D Size Medium

Part #: RAM-D-201U UPC: 793442202018

Features

Standard RAM® double socket arm provides an ideal overall length of 8.44" and a socket-to-socket length of 6.88"
Attaches to any D size RAM® ball component, including mounting bases and device holders; double ball and socket technology allows for near-infinite adjustability of your RAM® mounting system
Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
Backed by a lifetime warranty

Product Information

Overview

The RAM® Double Socket Arm (RAM-D-201U-C) serves as the “socket” in the RAM® patented ball-and-socket mounting system. This double socket arm connects to any two D size ball adapters or bases. A spring inside the arm keeps one socket open, making it easy to attach to a ball. With an overall length of 8.44" and socket-to-socket length of 6.88", the arm features an easy-to-adjust knob that provides near-infinite positioning.

Specifications
product dimensions	Overall Length: 8.44"
socket to socket length	6.88"
ball size	D Size (2.25")
weight capacity	Standard Use: 6 lbs Heavy-Duty Use: 5 lbs
materials	Marine-grade aluminum
packaging type	Poly Bag
Weight	2.67 lb

RAM® Double Socket Arm - D Size Medium

Name: RAM® Double Socket Arm - D Size Medium
Brand: RAM Mounts
SKU: RAM-D-201U
Price: 97.99 USD
Availability: InStock

Part#: RAM-D-201U

UPC: 793442202018

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fish Finders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A
