Features

Low-profile design with an overall length of 5.1" and socket-to-socket length of 3.6"
Attaches to any D size RAM® ball component, including mounting bases and device holders; double ball and socket technology allows for near-infinite adjustability of your RAM® mounting system
Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
Backed by a lifetime warranty

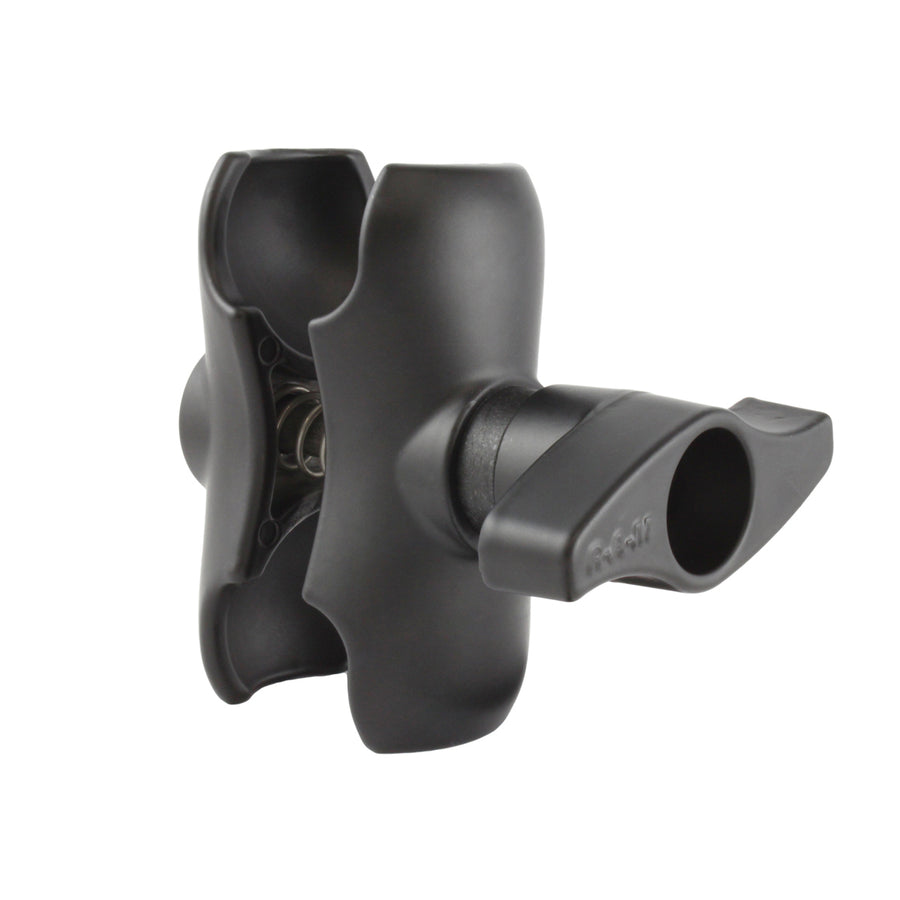

RAM® Double Socket Arm with Jam Nut - D Size Short

Product Information
Overview	The RAM-D-201U-C-MI1, short double socket arm with jam nut, has a socket at both ends that accommodates 2.25" ball bases. A single spring inside the arm opens the end sockets, allowing you to pivot the ball and socket connection. This socket technology allows for almost infinite adjustment and perfect viewing angles.

Specifications
product dimensions	Overall Length: 5.1"
socket to socket length	3.6"
ball size	D Size (2.25")
weight capacity	Standard Use: 6 lbs Heavy-Duty Use: 5 lbs
materials	Marine-grade aluminum
packaging type	Poly Bag
Weight	1.8 lb

RAM® Double Socket Arm with Jam Nut - D Size Short

Name: RAM® Double Socket Arm with Jam Nut - D Size Short
Brand: RAM Mounts
SKU: RAM-D-201U-C-MI1
Price: 72.49 USD
Availability: InStock

Part#: RAM-D-201U-C-MI1

UPC: 793442220135

$72.49

Short, medium, and long double socket arms compared side by side. This product uses a Short arm — Arm lengths

The double socket arm clamps over two balls — one on the base and one on your device holder. Arm length sets your reach: short arms are the most stable, while longer arms give you more freedom to position the device.

RAM Mounts overall and socket-to-socket arm lengths by ball size
Arm Length	Measurement	A Size	B Size	C Size	D Size — this product's ball size	E Size
Short	Overall Length	N/A	2.42"	3.56"	5.69" — this product	5.69"
Short	Socket-to-Socket Length	N/A	1.75"	2.5"	4.66"	4.66"
Medium	Overall Length	2.42"	3.73"	5.69"	8.44"	12.63"
Medium	Socket-to-Socket Length	1.75"	3"	4.66"	6.88"	9.88"
Long	Overall Length	3.56"	6"	9.13"	12.98"	N/A
Long	Socket-to-Socket Length	3.12"	5.31"	8"	11.41"	N/A

RAM® Hi-Torq™ Wrench for D Size Socket Arms

$31.99

Overview

The RAM-D-201U-C-MI1, short double socket arm with jam nut, has a socket at both ends that accommodates 2.25" ball bases. A single spring inside the arm opens the end sockets, allowing you to pivot the ball and socket connection. This socket technology allows for almost infinite adjustment and perfect viewing angles.

Features

Low-profile design with an overall length of 5.1" and socket-to-socket length of 3.6"
Attaches to any D size RAM® ball component, including mounting bases and device holders; double ball and socket technology allows for near-infinite adjustability of your RAM® mounting system
Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
Backed by a lifetime warranty

product dimensions:

Overall Length: 5.1"

socket to socket length:

3.6"

ball size:

D Size (2.25")

weight capacity:

Standard Use: 6 lbs
Heavy-Duty Use: 5 lbs

materials:

Marine-grade aluminum

packaging type:

Poly Bag

Weight:

1.8 lb

Return Policy:

All products purchased from RAM® can be returned within 30 days with no restocking fee (return shipping not provided). See full return policy here.

Print

Documents

Knowledge Base: Socket Arms

QUESTIONS & ANSWERS

Have a Question?

Ask a Question

What is the difference between RAM-D-201U-C-MI1 and RAM-D-201U-C? not clear on what the jam nut does?

The Jam Nut is a built-in security feature inside the knob of your RAM Arm. It can be adjusted with a nut driver and acts as a stop point, so the knob can’t be loosened past where you set it.

You can tighten the Jam Nut so the mount can’t be loosened at all, or leave some flexibility so the knob can still be turned for adjustments without the mount coming apart. For example, many boat owners like using the Jam Nut to keep guests from accidentally loosening the knob on their mount too far and losing parts in the water.
