RAM® Tough-Charge™ 15W Wireless Charging Mount with Tough-Claw™
$244.49
RAM® Tough-Charge™, Tough-Claw™ Mount
Features
- Waterproof Qi compatible wireless phone charging cradle features spring-loaded RAM® X-Grip® technology and 15W maximum output

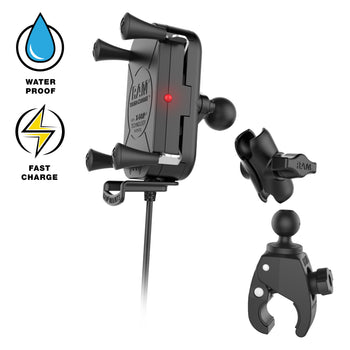

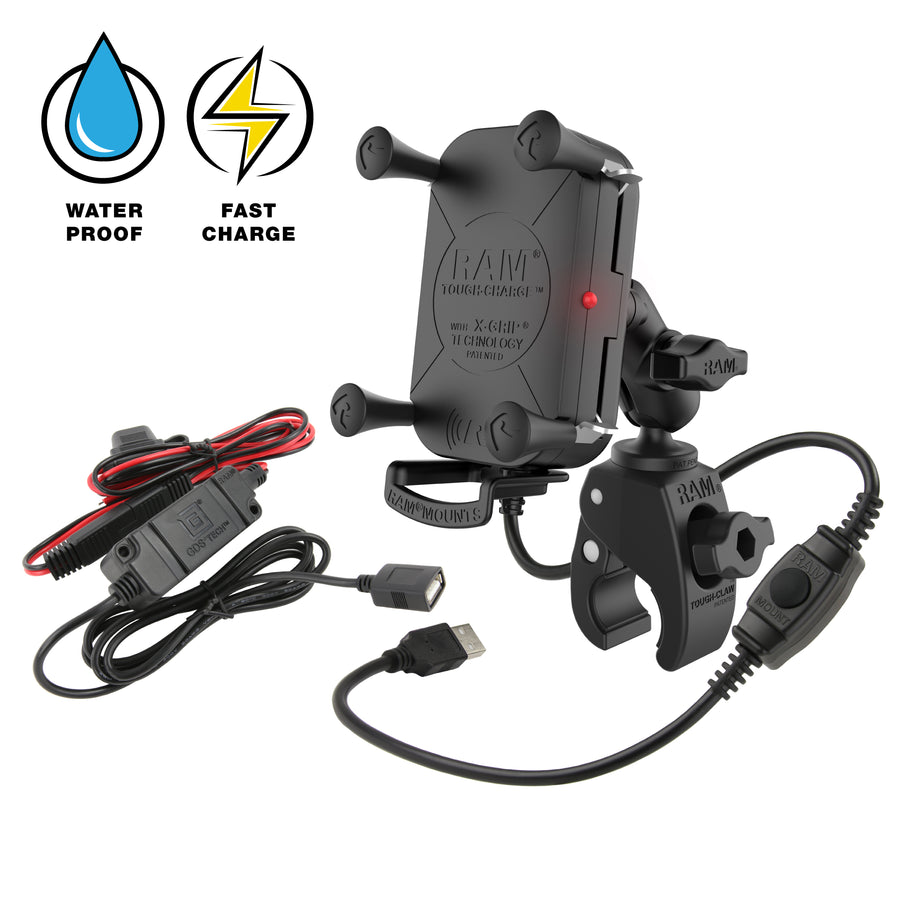

- Kit includes wireless charging cradle, B size diamond ball base, short double socket arm, RAM® Tough-Claw™ clamping base, and hardwire charger
- Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments
- RAM® Mounts backed by lifetime warranty, RAM® electronics backed by 1-year warranty with proof of purchase required

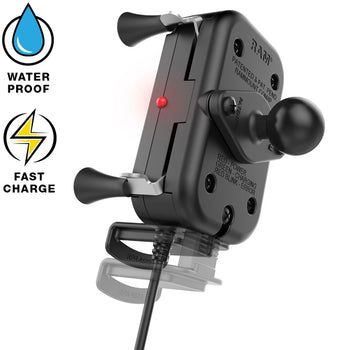

The RAM® Tough-Charge™ with X-Grip® Technology is the world's first patented, universal waterproof wireless charging cradle for phones. Designed with spring-loaded RAM® X-Grip® Technology, this cradle features an 'X' design that expands and contracts to secure nearly any phone while taking advantage of Qi wireless phone charging. All four arms feature rubber-coated caps that hold your phone firmly in place, and the open design keeps buttons and switches accessible on the sides of phones. To insert your device, simply squeeze the arms on one side of the cradle and place your phone inside before releasing the arms. This Qi wireless charging cradle ensures your compatible phone charges no matter what position it's placed at. For added security and peace of mind, a device tether is included that’s recommended for outdoor applications. In addition, a support leg can be adjusted to the ideal position or removed altogether. This RAM® Tough-Charge™ with X-Grip® Technology wireless charging kit includes a B size diamond base featuring a 1” rubber ball, short length double socket arm, and a RAM® Tough-Claw™ clamping base. With the RAM® Tough-Claw™ base, you can easily attach the wireless phone charger to round, square, and odd-shaped rails and bars ranging from .625” to 1.14” in outer diameter. The connected Type-A male pigtail connector features an in-line switch that allows you to turn off the wireless charging module when not in use. For in-vehicle charging, attach the pigtail to the included 1.2m Type-A male to Type-A female extension cable. This kit includes a hardwire charger.
RAM® Tough-Charge™ 15W Wireless Charging Mount with Tough-Claw™
Overview
The RAM® Tough-Charge™ with X-Grip® Technology is the world's first patented, universal waterproof wireless charging cradle for phones. Designed with spring-loaded RAM® X-Grip® Technology, this cradle features an 'X' design that expands and contracts to secure nearly any phone while taking advantage of Qi wireless phone charging. All four arms feature rubber-coated caps that hold your phone firmly in place, and the open design keeps buttons and switches accessible on the sides of phones. To insert your device, simply squeeze the arms on one side of the cradle and place your phone inside before releasing the arms. This Qi wireless charging cradle ensures your compatible phone charges no matter what position it's placed at. For added security and peace of mind, a device tether is included that’s recommended for outdoor applications. In addition, a support leg can be adjusted to the ideal position or removed altogether. This RAM® Tough-Charge™ with X-Grip® Technology wireless charging kit includes a B size diamond base featuring a 1” rubber ball, short length double socket arm, and a RAM® Tough-Claw™ clamping base. With the RAM® Tough-Claw™ base, you can easily attach the wireless phone charger to round, square, and odd-shaped rails and bars ranging from .625” to 1.14” in outer diameter. The connected Type-A male pigtail connector features an in-line switch that allows you to turn off the wireless charging module when not in use. For in-vehicle charging, attach the pigtail to the included 1.2m Type-A male to Type-A female extension cable. This kit includes a hardwire charger.

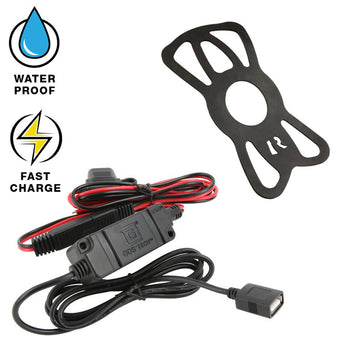

hardware included
(1) Safety Tether
(1) Glue Tube for Rubber Caps
(1) Cradle Leg
(1) Cradle Leg Cover
(1) Silicon sleeve for USB waterproof connection
(1) Hardwire Charger with Cable
(4) Small zip ties
(4) Large zip ties
holder dimensions
Width Range: 2.375" - 3.25"
Depth Range: .875" max
clamp range
.625" - 1.14" diameter
socket to socket length
1.75"
ball size
B Size (1")
weight capacity
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials
High strength composite
Stainless steel
packaging type
Retail Box
power specifications
Input Power:5V-2A; 9V-1.67A
Output: 15W
Conversion Efficiency: 85% Max
Maximum Case Thickness: 6mm
Working Frequency: 110-205KHZ
Product Standard: WPC v.1.2.4
QI Compatible
Compatible with QC2.0/QC3.0 power supplies
operating temperature
0°C to +37.7°C
regulatory
Over Voltage Protection
Short Circuit Protection
Reverse Polarity Protection
RoHS Compliance
WEEE Compliance
SAE J-1113-5 Load Dump (Transient Voltage)
Moisture Resistant
certifications
CE Certification
E-Mark Certification
RCM Certification
FCC Certification
Warranty
1 year warranty
Weight
1.81 lb
Additional Information

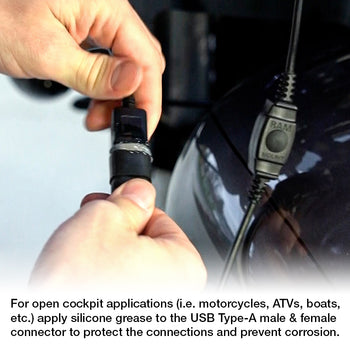

IMPORTANT: For open cockpit applications (i.e. motorcycles, ATVs, boats, etc.) apply silicone grease to the USB Type-A male & female connector to protect the connections and prevent corrosion. Failure to do so will void warranty. Click here for instructional video.
Exposure to vibrations, like those generated by high-powered motorcycle engines, might impact iPhone cameras. Click here to learn more.
Size of case may affect compatibility. Not compatible with phone cases containing metal. This holder will not charge phones that do not have built-in wireless charging capabilities, such as the Apple iPhone 7 or Samsung Galaxy S5.
This charger is not recommended for Apple iPhone 12, 13 & 14. These iPhone models support two wireless charging technologies: Apple’s proprietary “Magsafe” and WPC (Wireless Power Consortium) “Qi” standard. MagSafe can charge iPhones ~33-45% faster than the WPC Qi standard. RAM Wireless charging products provide WPC Qi BPP and EPP standard today up to 15W.
Exposure to vibrations, like those generated by high-powered motorcycle engines, might impact iPhone cameras. Click here to learn more.
Size of case may affect compatibility. Not compatible with phone cases containing metal. This holder will not charge phones that do not have built-in wireless charging capabilities, such as the Apple iPhone 7 or Samsung Galaxy S5.
This charger is not recommended for Apple iPhone 12, 13 & 14. These iPhone models support two wireless charging technologies: Apple’s proprietary “Magsafe” and WPC (Wireless Power Consortium) “Qi” standard. MagSafe can charge iPhones ~33-45% faster than the WPC Qi standard. RAM Wireless charging products provide WPC Qi BPP and EPP standard today up to 15W.
Components
RAM® Tough-Charge™ 15W Waterproof Wireless Charging Holder with Charger
RAM-HOL-UN12WB-V7M-1
$193.99
