$54.49
Medium Arm

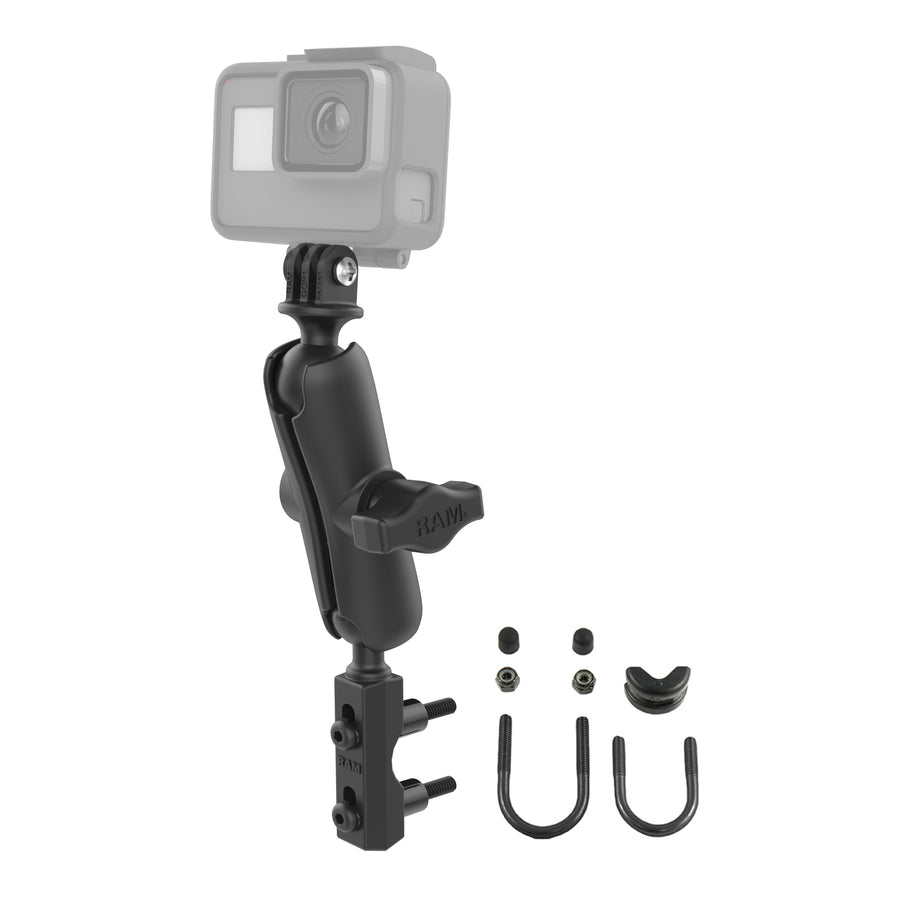

RAM® Brake/Clutch Reservoir Mount with Universal Action Camera Adapter
Part#:RAM-B-174-GOP1U UPC:793442943706 Patented
The RAM-B-174-GOP1U consists of a hardware for mounting to both brake/clutch reservoirs and rails that are 0.5" to 1.25" in diameter, double socket arm and 1" diameter ball with custom GoPro® Hero adapter. The mounting hardware for brake/clutch reservoirs include both standard and metric mounting bolts. The GoPro® Hero adapter attaches directly to the underside of the camera, replacing the factory mounting bracket. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.

hardware included

Assembly Hardware
(2) M6 x 55mm Hex Bolts
(2) #1/4-20 x 2" Hex Bolts
(2) 1/4"-20 x 2.5" Hex Bolts
(2) 1/2" Spacers
(2) 1/4" Split Lock Washers
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer

clamp range

.5" - 1.25" diameter

socket to socket length

3"

ball size

B Size (1")

weight capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials

Marine-grade aluminum
High strength composite

packaging type

Poly Bag

Weight

0.72 lb

Components

RAM® Action Camera Universal Ball Adapter RAP-B-202U-GOP1 $13.99
RAM® Double Socket Arm - B Size Medium RAM-B-201U $19.49
RAM® Motorcycle Brake/Clutch Reservoir & Handlebar Ball Base RAM-B-309-7U $24.99
